Cylinder Heads & Related Components for Caterpillar 3208 Natural Engines

The Caterpillar 3208 Natural (non-turbo) diesel engine remains a cornerstone in marine propulsion, industrial machinery, agricultural equipment, and stationary power units. Known for its durability and straightforward design, the 3208 Natural continues to serve operators worldwide decades after its introduction.

At the heart of every rebuild or top-end service lies the cylinder head assembly. For the Caterpillar 3208 Natural engine, the cylinder head is critical in managing airflow, combustion, heat dissipation, and valve operation. Whether you’re performing a simple gasket replacement or a full top-end overhaul, Diesel Pro Power provides aftermarket cylinder heads and every related component needed to restore performance and reliability.

With more than 40,000 satisfied customers globally, Diesel Pro Power has earned a reputation for supplying high-quality aftermarket parts with fast worldwide shipping, competitive pricing, and unmatched expertise in Caterpillar diesel applications.

Engine Overview: Caterpillar 3208 Natural

The Caterpillar 3208 Natural is a V8 diesel engine offered in multiple horsepower ratings, depending on application. Unlike its turbocharged siblings, the naturally aspirated model relies on atmospheric intake and a simplified design, which makes it a popular choice in applications where simplicity, reliability, and longevity are paramount.

• Configuration: V8 diesel

• Induction: Naturally aspirated (non-turbo)

• Applications: Marine propulsion, generators, industrial machinery, agricultural power units

• Strengths: Rugged cast-iron construction, ease of service, long service intervals

Because the 3208 Natural uses two cylinder heads (one for each bank of the V8), a complete top-end rebuild often involves servicing or replacing both. Each head supports four cylinders, housing the intake and exhaust valves, guides, springs, retainers, locks, and seals.

Cylinder Head Assemblies for Caterpillar 3208 Natural Engines

Bare Cylinder Head for Caterpillar 3208 Natural Engines

The bare cylinder head is a brand-new casting, machined to Caterpillar specifications but supplied without valves, springs, or hardware. This option is preferred by rebuilders and operators who want full control over component selection.

Key Benefits:

• Precision-machined casting ensures reliable fit and durability

• No pre-installed hardware—perfect for custom builds

• Allows installation of premium or performance-rated valves and springs

Best Use Case: Complete rebuilds where all new top-end components are being installed.

Complete Cylinder Head for Caterpillar 3208 Natural Engines

The complete cylinder head comes ready to install, with intake and exhaust valves, valve guides, springs, and retainers already fitted. This saves valuable time during rebuilds and ensures professional assembly quality.

Key Benefits:

• Fully assembled for quick installation

• Factory-tested components ensure proper valve seating

• Reduces downtime and labor costs

Best Use Case: Operators who need to minimize downtime and get back to work or on the water quickly.

Cylinder Head Gaskets for Caterpillar 3208 Natural Engines

Cylinder Head Gasket Set for Caterpillar 3208 Natural Engines

The gasket set provides all the necessary seals for reassembling both cylinder heads. Because the 3208 is a V8, one complete set is required per engine.

Features:

• Designed to withstand combustion pressures and coolant exposure

• Covers both banks of the engine

• Prevents oil and coolant leaks at the head-to-block interface

Individual Cylinder Head Gaskets for Caterpillar 3208 Natural Engines

If only one bank is being serviced, a single cylinder head gasket can be used instead of a complete set. Each head requires one gasket.

Features:

• High-strength sealing material

• Ideal for single-bank repairs or partial overhauls

• Matches OEM specifications for thickness and durability

Valves for Caterpillar 3208 Natural Engines

The intake and exhaust valves are central to engine breathing and combustion. Each Caterpillar 3208 Natural engine requires 16 valves total (8 intake, 8 exhaust).

Intake Valves for Caterpillar 3208 Natural Engines

• Allow air and fuel mixture into the combustion chamber

• Designed for maximum airflow efficiency

• Made from heat-resistant alloys

Exhaust Valves for Caterpillar 3208 Natural Engines

• Expel burnt gases from the cylinder

• Built to withstand higher exhaust gas temperatures

• Precision-machined for tight sealing under pressure

Signs of Wear:

• Loss of compression

• Excessive smoke

• Difficulty starting

Valve Guides for Caterpillar 3208 Natural Engines

Valve guides are pressed into the cylinder head and provide a path for the valve stem. They maintain smooth linear motion and reduce lateral movement.

• Intake Valve Guides: Optimized for cooler intake air conditions

• Exhaust Valve Guides: Built from heat-resistant materials to handle high exhaust temperatures

Why Replace?
Worn guides lead to poor valve seating, oil leakage into the combustion chamber, and reduced compression.

Valve Inserts & Seats for Caterpillar 3208 Natural Engines

Valve inserts, also referred to as valve seats, provide the sealing surface for intake and exhaust valves. They must endure extreme temperatures, pressure, and repetitive impact.

• Intake Valve Inserts: Designed for air-fuel intake sealing

• Exhaust Valve Inserts: Withstand extreme heat and prevent valve face erosion

Recommendation: Replace inserts when replacing valves to maintain proper sealing and compression.

Valve Springs & Retainers for Caterpillar 3208 Natural Engines

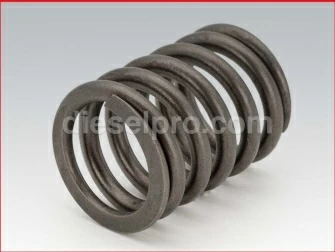

Valve Springs

Maintain constant pressure on the valve, ensuring it closes properly. Weak or worn springs can cause valve float at higher RPMs.

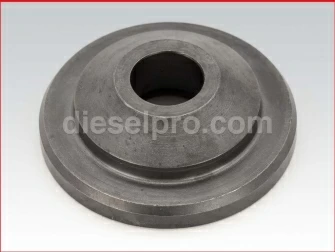

Valve Spring Retainers

Keep the springs seated securely. Their correct fitment is critical to prevent spring misalignment.

Valve Locks

Tiny but essential, valve locks secure the valve stem to the retainer. Two are required per valve.

Valve Seals for Caterpillar 3208 Natural Engines

Valve seals prevent oil from passing into the combustion chamber. They are fitted around the valve stem and are critical for reducing oil consumption and exhaust smoke.

• Used on both intake and exhaust valves

• Should always be replaced during head service

• Prevents oil contamination of the combustion process

Push Rods & Lifters for Caterpillar 3208 Natural Engines

Push Rods

Transfer motion from the camshaft lifters to the rocker arms, opening and closing the valves. Bent or worn push rods can disrupt timing and reduce efficiency.

Lifters (Tappets)

Ride on the camshaft lobes, pushing the rods upward. Worn lifters can cause ticking noises, misfires, and poor valve actuation.

Maintenance Tip: Always inspect push rods and lifters during head replacement to avoid accelerated wear on new components.

Valve Cover Gaskets for Caterpillar 3208 Natural Engines

The valve cover gasket seals the joint between the valve cover and the head, preventing oil leaks. Since the 3208 is a V8, two gaskets are required per engine.

Recommendation: Always replace gaskets when removing the valve cover to avoid leaks.

Complete Top-End Rebuild for Caterpillar 3208 Natural Engines

For optimal reliability, many operators perform a complete top-end rebuild when servicing the 3208 Natural engine. This includes:

• Bare or complete cylinder heads

• Head gaskets or gasket sets

• Intake and exhaust valves

• Valve guides, inserts, and seats

• Valve springs, retainers, and locks

• Valve seals

• Push rods and lifters

• Valve cover gaskets

A full rebuild ensures restored compression, reduced oil consumption, lower exhaust smoke, and extended engine life.

Applications of the Caterpillar 3208 Natural Engine

The 3208 Natural has powered equipment worldwide for decades, including:

• Marine: Workboats, fishing vessels, yachts, trawlers

• Industrial: Pumps, compressors, generators

• Construction: Excavators, loaders, cranes

• Agriculture: Harvesters, irrigation systems, tractors

Its reliability in both stationary and mobile applications makes continued parts support essential.

Advantages of Aftermarket Cylinder Heads for Caterpillar 3208 Natural Engines

• Availability: Readily accessible even decades after production ended

• Cost Savings: More affordable than OEM parts without sacrificing reliability

• Modern Manufacturing: Precision machining and casting methods meet or exceed original quality

• Comprehensive Support: Complete kits and related components available for simplified ordering

Why Diesel Pro Power is the Preferred Source

• Over 40,000 satisfied customers worldwide

• Trusted by marine operators, industrial fleet managers, and repair specialists

• Fast worldwide shipping

• Guaranteed in-stock parts for Caterpillar 3208 Natural engines

• Dedicated support team with Caterpillar expertise
