Engine Piston Kit

Parts for Caterpillar 3412E – Engine Piston Kit Section

The Caterpillar 3412E is one of the most trusted V12 diesel engines in Caterpillar’s lineup, powering everything from marine propulsion systems to industrial generators and heavy-duty equipment. When it comes time for an overhaul or rebuild, piston kits, cylinder liners, piston rings, and related components are at the heart of restoring compression, efficiency, and long-term durability.

At Diesel Pro Power, operators gain access to premium aftermarket piston kits and related components that meet or exceed Caterpillar’s performance standards. With more than 40,000 satisfied customers worldwide across 180+ countries, Diesel Pro Power has built a reputation as the most reliable source for Caterpillar 3412E parts.

Understanding the Role of Piston Kits in the Caterpillar 3412E

The piston assembly is a critical part of the combustion process, where fuel and air ignite to generate power. In the 3412E engine, the piston, rings, and cylinder liner must work together under extreme pressure and temperature.

Compression Ratios and Performance

The Caterpillar 3412E piston kits are designed with a 15.5:1 compression ratio. This high ratio allows the engine to generate immense torque and horsepower, making it suitable for demanding environments such as offshore drilling platforms, mining operations, and heavy marine propulsion.

A higher compression ratio means:

Improved fuel efficiency – More complete combustion with each stroke.
Greater torque output – Essential for engines powering large vessels or heavy machinery.
Reduced emissions – Cleaner burn compared to lower compression engines.

Why Overhaul Kits Matter

Over time, pistons, liners, and rings wear down, leading to:

Loss of compression.
Reduced fuel economy.
Oil leakage into combustion chambers.
Higher operating temperatures.

A piston kit replacement restores the engine to peak operating condition, ensuring it runs as efficiently as the day it left the factory.

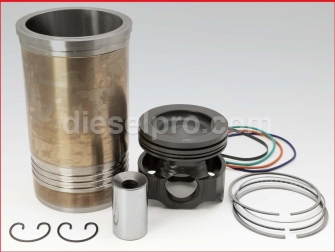

Cylinder Kits for Caterpillar 3412E

Cylinder kits provide a complete solution for rebuilding the engine’s combustion chambers. Each kit includes a piston, liner, rings, seals, and retainers designed to work together seamlessly.

Premium Features of 3412E Cylinder Kits

Precision engineering – Manufactured to exact Caterpillar specifications for durability.
Enhanced piston crown design – Ensures proper combustion and improved power output.
Durable cylinder liners – Designed to withstand high heat and pressure while resisting wear.
High-strength piston rings – Maintain a tight seal, reducing blow-by and oil consumption.
Matched components – Ensures compatibility, reducing the risk of mismatched tolerances.

Applications of Cylinder Kits

Marine propulsion engines – Keeps ships, tugboats, and offshore supply vessels running reliably.
Power generation – Restores fuel efficiency and reliability in standby and continuous power plants.
Mining and construction equipment – Handles demanding cycles in loaders, haulers, and drilling equipment.
Industrial use – Ensures dependable performance in pump drives, compressors, and other heavy-duty machinery.

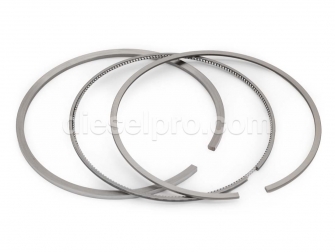

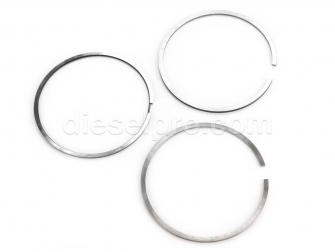

Piston Ring Sets for Caterpillar 3412E

Piston rings are small but essential components that ensure compression is maintained inside the cylinder. They serve three critical functions:

Compression sealing – Prevents gases from escaping during combustion.
Oil control – Ensures proper lubrication while preventing excess oil consumption.
Heat transfer – Helps move heat from the piston to the cylinder wall for cooling.

Features of 3412E Piston Ring Sets

Durability – Engineered with premium alloys to resist wear under high-load conditions.
Heat resistance – Maintains performance in extreme temperature ranges.
Tight sealing – Reduces loss of power and increases fuel efficiency.
Reduced emissions – Supports cleaner combustion by minimizing oil entry into the chamber.

Replacing piston rings during an overhaul is critical because even slight wear can result in significant efficiency losses.

Cylinder Liners for Caterpillar 3412E

Cylinder liners form the combustion chamber walls where pistons move up and down. Over time, these liners can become scored or worn, especially in engines exposed to harsh environments.

Benefits of Installing New Cylinder Liners

Restored surface finish – Provides a smooth surface for piston rings to seal against.
Extended engine life – Protects the engine block from wear.
Ease of replacement – Wet liners can be replaced without machining the block.
Improved cooling efficiency – Ensures optimal heat transfer for stable operation.

For the Caterpillar 3412E, liners are matched to pistons and rings to provide the correct tolerances, ensuring long-term durability.

Piston Pins, Retainers, and Liner Seal Kits

Beyond pistons and liners, a rebuild requires small but vital parts that ensure structural integrity.

Piston Pins and Retainers

Piston pins connect the piston to the connecting rod, transferring power from combustion to the crankshaft.
Retainers secure the pin in place, preventing lateral movement.
High-strength construction ensures they can handle repetitive stress cycles without failure.

Cylinder Liner Seal Kits

Provide tight sealing at the base of the liner.
Prevent coolant or oil from leaking into the combustion chamber.
Critical for maintaining consistent compression and engine reliability.

Why Operators Trust Diesel Pro Power for 3412E Piston Kits

40,000+ Satisfied Customers Worldwide

Diesel Pro Power has built a reputation for reliability, serving marine fleets, industrial operators, mining companies, and power generation facilities across more than 180 countries.

Premium Aftermarket Quality

Every piston, liner, and ring set is manufactured to meet or exceed Caterpillar’s rigorous standards. This ensures dependable performance equal to OEM without the inflated costs.

Fast Worldwide Shipping

Downtime costs money. Diesel Pro Power ships quickly to reduce downtime, ensuring operators can get engines back online without long waits.

Dedicated 3412E Catalog

Our online catalog is organized by system and component, making it easy to find exactly the part you need—whether you’re sourcing a full cylinder kit, a single liner, or a set of rings.

Expert Technical Support

Choosing between piston designs, selecting the correct liner seal kit, or verifying compatibility with your arrangement number requires expertise. Diesel Pro Power’s technical support team helps operators make the right decisions the first time, avoiding costly rebuild mistakes.

Best Practices for Rebuilding the Caterpillar 3412E with Piston Kits

To maximize engine performance after installing new piston kits:

Measure clearances carefully – Always verify piston-to-liner and ring end gaps before installation.
Replace all seals – Never reuse old seals, as they can compromise compression and coolant control.
Check connecting rod alignment – Ensures pistons move freely without side loading.
Lubricate thoroughly – Proper lubrication during assembly prevents premature wear at startup.
Follow torque specifications – Ensures bolts and retainers are installed to factory standards.

Industries That Rely on 3412E Engines and Piston Kits

The Caterpillar 3412E is widely used in:

Marine propulsion – Tugboats, ferries, and commercial fishing vessels.
Power generation – Continuous-duty power plants and backup generators.
Mining – Haul trucks, drills, and loaders.
Oil and gas – Offshore drilling rigs and pumping systems.
Construction – Heavy cranes and earth-moving equipment.

In each case, reliable piston kits are critical to maintaining uptime and ensuring engines can withstand demanding conditions.
