Oil System Components for Cummins 4BTA Engines

The lubrication system is one of the most critical aspects of the Cummins 4BTA engine’s long-term performance and reliability. Proper oil circulation ensures that moving parts are protected from wear, reduces friction, and helps dissipate heat from high-stress engine areas. Diesel Pro Power supplies a complete range of oil system components designed for marine and industrial Cummins 4BTA applications, all trusted by over 40,000+ satisfied customers worldwide.

From precision-engineered oil pumps to robust filtration, gaskets, and cooling solutions, our parts meet or exceed OEM specifications, ensuring dependable service in the toughest conditions.

Cummins Oil Pumps for 4BTA Engines

Rear Gear Train Oil Pump

Designed for Cummins 4B, 4BT, ISB 4.5, and QSB 4.5 engines equipped with a rear gear train configuration, this oil pump features pinions with 23/24 helix teeth. The helical tooth design offers smooth and quiet operation, reducing gear noise and improving wear resistance.

• Applications: Compatible with a wide range of CPL configurations used in both marine propulsion and stationary industrial engines.

• Performance Benefits: Enhanced oil pressure stability, improved lubrication in high-load scenarios, and long service life.

Front Gear Train Oil Pump

For 4BTA engines configured with a front gear train, this model features 22/24 straight teeth pinions for a robust and direct drive connection.

• Applications: Suited for CPL configurations commonly found in generator sets, auxiliary power units, and certain marine auxiliary drives.

• Performance Benefits: High durability under fluctuating load conditions and consistent oil delivery even in high-RPM operations.

Oil Cooling Solutions

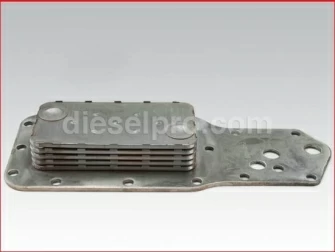

Cummins Oil Cooler – 5 Plate Design

A 5-plate oil cooler is essential for maintaining optimal oil temperatures, especially in heavy-duty marine service where sustained loads generate significant heat.

• Applications: Direct replacement for factory coolers in 4B and 4BT engines.

• Benefits: Enhanced oil life, prevention of viscosity breakdown, and reduced risk of bearing wear due to thermal stress.

Oil Cooler Core Gasket

Seals the interface between the cooler core and housing, preventing oil leakage and ensuring heat exchange efficiency.

• Material Quality: High-temperature resistant gasket material for longevity in marine and industrial environments.

Oil Pan and Filtration Components

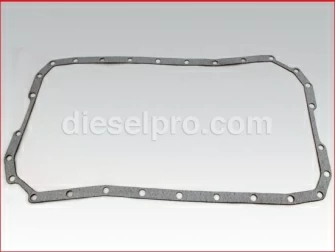

Cummins Oil Pan Gasket

Creates a reliable seal between the oil pan and engine block, preventing leaks even in high-vibration applications.

Cummins Oil Filter

A high-capacity spin-on filter with a compact profile designed to capture fine contaminants while maintaining optimal oil flow.

• Specifications:

• Outside Diameter: 3.66 inches

• Height: 5.35 inches

• Thread Size: 1-16 UN

• Application: Suitable for both standard and high-duty service intervals.

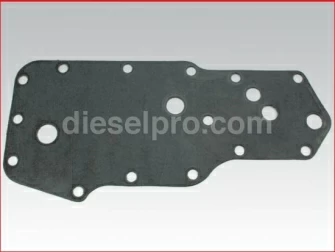

Oil Filter Head Gasket

Ensures a secure seal between the filter head and engine block to maintain oil pressure and prevent bypass leakage.

Service & Maintenance Tools

Oil Filter Removal Wrench

Adjustable for oil filters ranging from 4-21/32 inches to 5-5/32 inches in diameter. Built for mechanics servicing multiple engine platforms, including Detroit Diesel, Caterpillar, and Cummins.

Marine-Specific Oil System Protection

Zinc Anode for Fuel and Oil Coolers

Marine engines require sacrificial zinc anodes to combat galvanic corrosion inside cooling passages.

• Design: Brass plug with NPT 3/8” thread and 1” zinc length.

• Application: Protects oil cooler internals from saltwater corrosion, extending component lifespan.

Oil Pressure Monitoring & Safety Switches

Maintaining correct oil pressure is vital for preventing catastrophic engine damage. The following make/break pressure switches are available for integration into alarm systems or automatic shutdown circuits:

• 5 PSI Make/Break – Early warning for low oil pressure conditions.

• 10 PSI Make/Break – Suitable for engines operating under moderate load.

• 20 PSI Make/Break – Ideal for high-performance configurations.

• 27 PSI Make/Break – Used where higher oil pressure is standard for safe operation.

Mechanical & Electrical Gauges

• Mechanical Gauges: Direct-reading gauges for accurate, real-time pressure monitoring.

• Mechanical Gauges with Alarm: Adds an audible/visual warning for pressure loss.

• Electrical Gauges (12V & 24V): Suitable for dash panels, engine rooms, and remote monitoring stations.

Maintenance & Operational Best Practices for the 4BTA Oil System

• Regular Oil Changes: Follow Cummins’ recommended intervals, adjusting for heavy marine use.

• Monitor Oil Pressure Daily: Especially during start-up and high-load conditions.

• Inspect Coolers & Gaskets: Look for leaks, corrosion, or reduced heat exchange efficiency.

• Replace Anodes on Schedule: Marine applications often require inspection every 3-6 months depending on water salinity.

• Use OEM-Quality Components: Ensures correct clearances, material durability, and long-term compatibility.
