Piston Kits for Cummins 6BTA Engines

The Cummins 6BTA is a turbocharged, 5.9L inline six-cylinder diesel engine celebrated for its robust torque curve, thermal efficiency, and reliability in demanding marine, industrial, and power generation environments. Diesel Pro Power offers premium-quality piston kits for Cummins 6BTA, precision-engineered to match specific CPL configurations and compression ratios to deliver OEM-level reliability and performance.

CPL Integrity and Engine Fitment

Proper engine restoration requires matching the piston kit to your engine’s CPL (Control Parts List) number. Our 6BTA kits are available for an extensive list of CPLs, ensuring pistons, pins, and compression geometry align with your engine's specifications.

Compression Ratio Options for Cummins 6BTA Pistons

15.3:1 Compression Ratio Piston Kits

This lower-compression configuration is recommended for continuous-duty engines or operations where heat mitigation and reliable cold-starting are critical. Ideal for auxiliary power units and de-rating scenarios. Compatible CPL numbers include:

• 1975, 2197, 2205, 2208, 2956, 8104, 8457

These pistons help reduce cylinder temperatures and oil breakdown in heavily loaded or extended runtime environments.

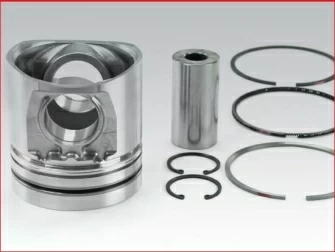

16.5:1 Compression Ratio Piston Kits

Offering a balanced option between performance and longevity, the 16.5:1 configuration is well-suited for standard turbocharged 6BTA engines. It ensures solid fuel economy and stable combustion across various load conditions. Compatible CPLs include:

• 594, 595, 599, 600, 696, 698, 710, 713, 715, 741, 742, 792, 793, 826, 834, 912, 937, 940, 961, 962, 983, 998, 1173, 1174, 1209, 1278, 1518, 1520, 1523, 1524, 1525, 1581, 2050, 2377, 2530, 2891, 8206

This range provides enhanced torque response and combustion efficiency for marine generators, industrial skids, and pump systems.

17.3:1 Compression Ratio Piston Kits

Designed to maximize thermal power and torque, the 17.3:1 ratio achieves improved fuel atomization and ignition timing. Ideal for demanding marine propulsion, heavy-duty industrial equipment, and high-load situations. Compatible CPLs include:

• 591, 596, 681, 691, 714, 721, 725, 791, 802, 843, 845, 895, 960, 981, 999, 1172, 1259, 1312, 1320, 1403, 1433, 1522, 1608, 1932

This configuration is chosen when performance and torque delivery are critical, without excessive stress on engine internals.

17.5:1 Compression Ratio Piston Kits

The highest compression option available for 6BTA engines, the 17.5:1 configuration delivers optimal combustion efficiency, power output, and torque—perfect for high-performance marine propulsion and continuous-duty generator sets. Two CPL groups supported:

Core Range:

• 953, 970, 1165, 1247, 1313, 1322, 1408, 1570, 1613, 1638, 1928

Extended Range:

• 597, 690, 692, 712, 716, 727, 729, 730, 761, 762, 763, 804, 807, 817, 856, 857, 858, 938, 943, 947, 948, 949, 950, 971, 994, 1160, 1163, 1168, 1189, 1201, 1202, 1207, 1209, 1245, 1246, 1266, 1268, 1277, 1279, 1287, 1288, 1289, 1440, 1508, 1554, 1601, 1627, 1631, 1659, 1685, 2021, 2049, 2272, 2273, 2340, 2413, 2414

Use this kit when maximum thermal efficiency and horsepower are required from your turbocharged 6BTA.

Standard Piston Kits (Universal Fitment)

Our general-fit kits are suitable for CPLs where compression ratio is unknown or not specified. These provide reliable OEM-equivalent piston and pin assemblies compatible with:

• 1965, 1966, 1967, 2109, 2144, 2302, 2351, 2359, 2396, 2478, 2623, 8442, 1071, 1961, 1962, 2242, 2296, 2372, 2373, 2417, 2551, 2868, 3868, 1902, 1948, 2014, 2015, 2016, 2071, 2122, 2125, 2292, 8444

• 1551, 1552, 1553, 1744, 1839, 1914, 1915, 1916, 2000, 2001, 2013, 2023, 2175, 2195, 2243, 2249, 2252, 2253, 2347, 2348, 2375, 3219

Excellent for standard rebuilds, fleet maintenance, or replacement where compression tolerance is broad.

Supporting Components for Cummins 6BTA Piston Assemblies

Salvage Sleeves

When cylinder walls show wear, scoring, or are out-of-spec, standard salvage sleeves allow you to restore the engine to factory bore size without replacing the block. Features include:

• Compatible with 6BTA, 6BT, 6B, 4BT, 4B, ISB, and QSB engines

• Machined to OEM tolerances for precision fitment

• Products used widely in engine rebuilds for marine, industrial, and agricultural diesels

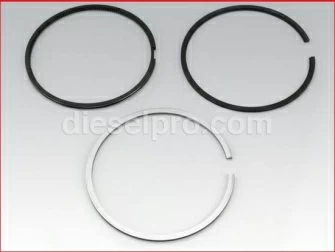

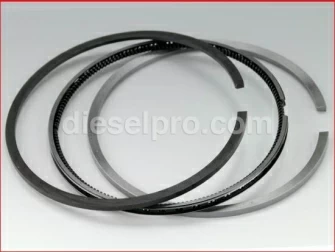

Piston Ring Sets for Cummins 6BTA

Each piston kit requires the correct ring set for sealing, oil control, and compression retention. We offer:

• Standard Ring Sets: Factory-equivalent rings for general applications

• 8MM TRL Ring Sets: Thick profile rings fitted for high-compression pistons

• Type E Ring Sets: Designed for specific groove geometries in certain piston models

All ring sets are precision-hardened and coated to resist wear in high-temperature diesel operations.

Why Diesel Pro Power Is the Preferred Source for 6BTA Pistons

• Serving 40,000+ satisfied customers worldwide

• OEM-quality pistons built for marine, generator, and industrial 6BTA applications

• Fast shipping from our U.S. warehouse to global destinations

• Expert CPL verification and piston selection support

• Available inventory includes pistons, rings, sleeves, and gaskets, ready for rebuilds

• Trusted in commercial marine, construction, backup power, and fleet maintenance markets

Typical Applications for Cummins 6BTA Engines

The 6BTA platform powers many critical operations. Common uses for our piston kits include:

• Marine propulsion and auxiliary engines

• Commercial standby and prime-power generators

• High-torque industrial load drivers (pumps, compressors)

• Construction and agricultural equipment

• Mobile power trailers and skid-mounted diesel systems

Designed for long uptime and deep restart reliability, these pistons support the most demanding diesel deployments.
