Parts For Detroit Diesel 8V92 Turbo - Connecting Rod Section

Parts for Detroit Diesel 8V92 Turbo – Connecting Rod Section

The Detroit Diesel 8V92 Turbo engine represents one of the most powerful and refined configurations in the legendary two-stroke 92 Series family. With eight cylinders arranged in a compact V configuration and turbocharging to enhance airflow and combustion efficiency, the 8V92 Turbo is known for its combination of power density, durability, and responsiveness. It’s a mainstay in marine propulsion, industrial generators, buses, and heavy equipment where sustained torque and dependable operation are vital.

At the core of the 8V92 Turbo’s performance lies its connecting rod assembly—a critical component that translates combustion energy into the crankshaft’s rotational motion. These rods endure extreme pressure and heat cycles, making their precision, alignment, and bearing condition crucial to overall engine longevity. The following section outlines the major components associated with the connecting rod system for the 8V92 Turbo, including the rod itself, bolts, nuts, spacers, and bearing shell sets.

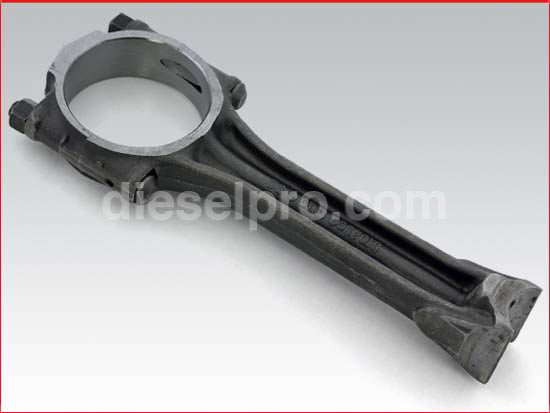

Detroit Diesel 8V92 Turbo Connecting Rod (Rebuilt)

The connecting rod serves as the mechanical link between each piston and the crankshaft, converting the piston’s linear motion into rotational force. For the Detroit Diesel 8V92 Turbo, the connecting rod is a robust forged-steel component designed for high-load conditions inherent to turbocharged two-stroke operation.

Diesel Pro Power offers rebuilt connecting rods for the 8V92 Turbo that have been fully reconditioned to OEM specifications. Each rod undergoes dimensional inspection, crack testing, small- and big-end resizing, and bushing replacement where applicable. The result is a component that meets the tight tolerances necessary to maintain balanced engine performance.

Every rebuilt connecting rod is sold with a refundable core deposit, which allows customers to exchange their used core for a credit—helping reduce waste and cost while ensuring availability of quality rebuildable components.

Connecting Rod Bolts and Nuts for Detroit Diesel 8V92 Turbo

The connecting rod bolts and nuts secure the rod cap to the main body, locking the bearing shells around the crankshaft journal. Given the high compression and rotational speed of the 8V92 Turbo, these fasteners must be able to withstand intense tensile stress and vibration.

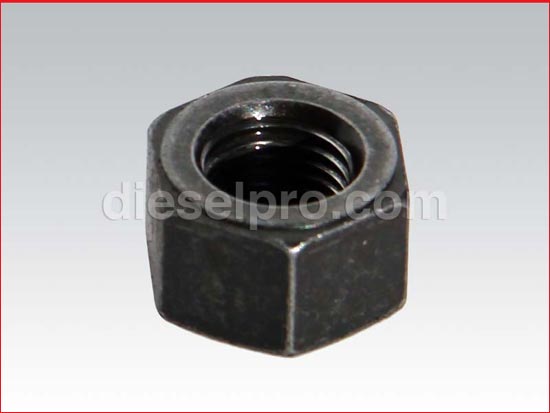

• Connecting Rod Nut – Manufactured to precise thread tolerances, this nut maintains the preload necessary to keep the cap clamped during every combustion stroke. Any deformation or wear on the nut threads can cause loss of torque, leading to bearing movement or failure. Replacing these nuts during rod rebuild or installation ensures consistent clamping force.

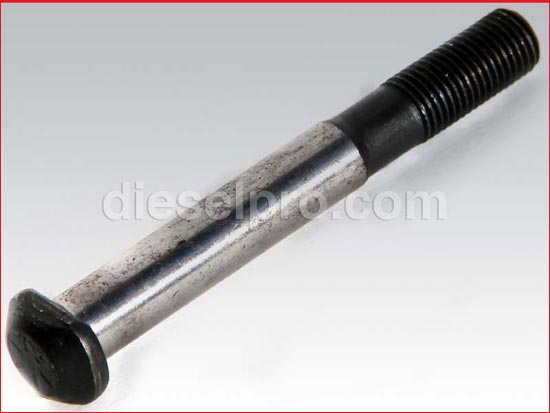

• Connecting Rod Bolt – These hardened steel bolts are stretch-tested during assembly to confirm proper torque retention. They experience repeated cycles of elongation and contraction, so it’s best practice to replace bolts whenever rods are reassembled.

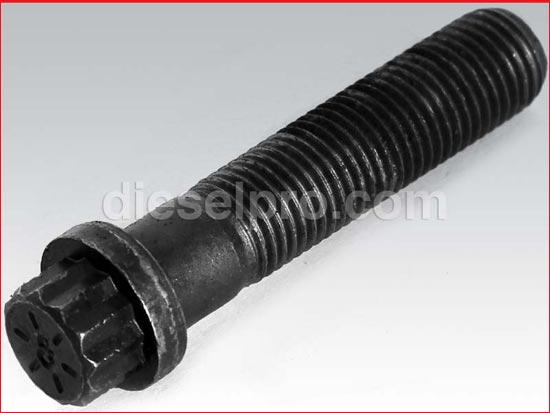

• Bolt for Two-Piece Piston Connecting Rod – Some 8V92 Turbo configurations feature two-piece pistons. These specialized bolts secure the rod’s lower assembly and should always be replaced during rebuilds due to their high fatigue exposure.



Proper installation torque and lubrication are essential when reassembling rod bolts and nuts. Any deviation from Detroit Diesel’s recommended torque specifications can result in rod cap misalignment or bearing damage.

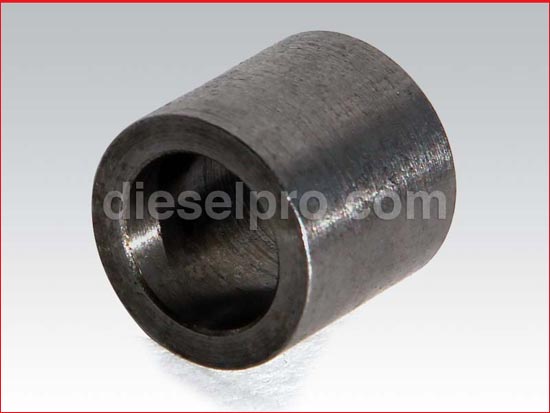

Spacer for Connecting Rod – Detroit Diesel 8V92 Turbo

The connecting rod spacer is used in engines equipped with two-piece pistons to maintain precise rod alignment and spacing between bearing surfaces. It ensures even load distribution across the crankshaft journals and prevents axial movement of the connecting rod during operation.

A worn or missing spacer can lead to improper bearing crush, oil clearance issues, and abnormal wear on the crankshaft. Technicians typically inspect spacers for scoring or deformation during overhauls and replace them as needed to maintain proper geometry and oil film integrity.

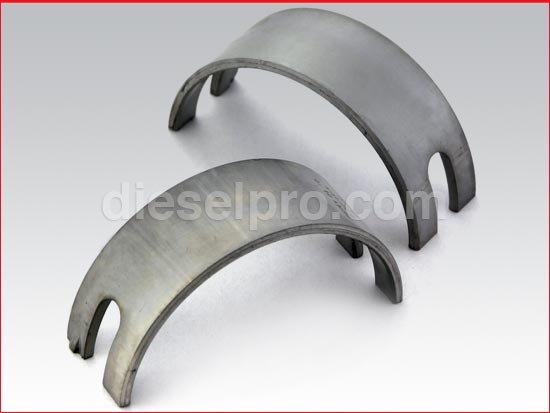

Bearing Shell Sets for Detroit Diesel 8V92 Turbo

The connecting rod bearings (also referred to as shell sets) provide a smooth, lubricated surface between the connecting rod and crankshaft journal. They play a vital role in reducing friction and absorbing combustion shock loads. For the 8V92 Turbo, maintaining correct bearing clearances is critical due to the engine’s two-stroke cycle and continuous lubrication demands.

Diesel Pro Power supplies precision shell sets for the Detroit Diesel 8V92 Turbo in standard and multiple oversize options (.010, .020, .030). These variations accommodate different crankshaft conditions, allowing machinists to restore proper oil clearance after journal refinishing or minor wear corrections.

• Standard Bearings – Used when the crankshaft journals remain within OEM diameter specifications.



• .010 Oversize Bearings – Used after a minor crankshaft grind of 0.010” to correct surface imperfections.



• .020 Oversize Bearings – Recommended when the journal has more significant wear or scoring, requiring deeper regrind.



• .030 Oversize Bearings – Ideal for heavy crankshaft repair work or when journals have undergone multiple reconditioning cycles.



Each bearing shell is constructed with a tri-metal composition—steel backing, copper-lead intermediate layer, and a soft overlay—to deliver both strength and conformability. The oil groove and lubrication hole align with the rod’s internal passage, ensuring continuous lubrication under load.

Signs that connecting rod bearings need replacement include:

• Low oil pressure readings



• Knocking or tapping noises from the lower end



• Metal particles detected in oil analysis



• Excessive clearance discovered during teardown



Replacing bearings in matched pairs for each rod ensures uniform loading and longevity.

Proper Maintenance of the 8V92 Turbo Connecting Rod Assembly

To preserve performance and reliability, follow these maintenance principles:

• Inspect During Overhaul – Always check for cracks, surface fatigue, and out-of-roundness at both the small and big ends.



• Replace Fasteners – Rod bolts and nuts should never be reused if stretched or corroded.



• Torque Accurately – Use a calibrated torque wrench and follow Detroit Diesel’s factory torque sequence.



• Check Bearing Clearances – Use plastigauge or micrometer methods to confirm correct oil clearance before final assembly.



• Lubricate During Assembly – Apply assembly lube to journals and bolt threads to prevent dry start damage.



A properly assembled connecting rod set ensures smooth crankshaft rotation, balanced power delivery, and minimal vibration across all eight cylinders.

Mechanical and Electric Gauges

Monitoring oil pressure, temperature, and engine speed helps detect early signs of connecting rod or bearing wear in the 8V92 Turbo. Diesel Pro Power carries:

• Mechanical Gauges (Standard and Alarm) – For direct, analog feedback with optional warning alarms.



• Electrical Gauges (12V and 24V) – For modernized dash panels and remote monitoring setups.



Using these gauges helps operators ensure oil pressure and temperature stay within safe limits—vital indicators for bearing health and lubrication performance.

Why Purchase 8V92 Turbo Connecting Rod Components from Diesel Pro Power

• Expertly Matched Components – Each part is carefully selected to ensure compatibility with Detroit Diesel 8V92 Turbo engines.



• Quality Assurance – Rebuilt rods, bolts, and bearings meet or exceed OEM standards for dimensional accuracy and strength.



• Fast Worldwide Shipping – Diesel Pro Power maintains a ready-to-ship inventory for immediate dispatch to minimize downtime.



• Trusted by 40,000+ Customers – Diesel Pro Power’s commitment to precision, dependability, and service has earned global recognition among marine, industrial, and fleet operators.



• Bilingual Support and Easy Ordering – English and Spanish part descriptions simplify purchasing and reduce the risk of ordering errors.



For reliable connecting rod assemblies and complete lower-end rebuild support, Diesel Pro Power is your go-to source for Detroit Diesel 8V92 Turbo parts.
