Twin Disc MG509 marine transmission ratio 1.5 to 1 - rebuilt

More Views

  • Twin Disc MG509 marine transmission ratio 1.5 to 1 - rebuilt 64 chara
  • Twin Disc MG509 marine transmission ratio 1.5 to 1 - rebuilt 64 chara
  • Twin Disc MG509 marine transmission ratio 1.5 to 1 - rebuilt 64 chara

Twin Disc MG509 marine transmission ratio 1.5 to 1 - rebuilt

Price: $ 21,483.00

In stock

All Countries
30 Day
Return URL
Back
Google ReviewsGoogle Reviews
In Stock
Sold with refundable core deposit.

See details

Details

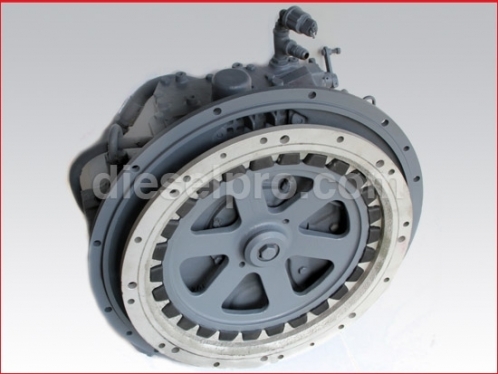

Twin Disc MG509 marine transmission with a ratio of 1.45 to 1 - Remanufactured

Includes:

  • Mechanical selector valve assembly (Control valve)
  • Pilot housing flange
  • Oil pump
  • Oil level gauge
  • Output flange

It does not included the Drive ring (sold separately)

General information:

  • Oil capacity 2.2 US gallons.
  • Pressure range 175-200 PSI @ 1800 rpm and 180 degrees farenheit
  • Maximum speed 3000 RPM
  • Operating: Oil viscosity SAE 30W engine oil, temperature 150 - 185 degrees farenheit.
  • Operating: Oil viscosity SAE 40W engine oil, temperature 175 - 210 degrees farenheit.
  • Oil pump capacity 10.6 gpm at 2400 rpm

After placing your order online for this item, we will contact you to request the specific SAE housing size

See Warranty

weight: 655.00 Lbs.

MG509 1.5:1
+
