Twin Disc MG502 Marine Transmission Parts - Oil Pump & Strainer Section

Twin Disc MG502 Marine Transmission Parts – Oil Pump & Strainer Section

The Twin Disc MG502 marine transmission oil system plays a vital role in maintaining proper lubrication, pressure, and cooling throughout the gearbox. A well-functioning oil pump, strainer, and sealing system ensure the transmission runs smoothly under load, delivering consistent clutch performance and reliable operation in demanding marine environments. Over time, components like O-rings, gaskets, and strainers can deteriorate, leading to oil leaks, reduced flow, or pressure loss. Servicing or replacing these parts keeps the MG502 performing at its best and extends its service life.

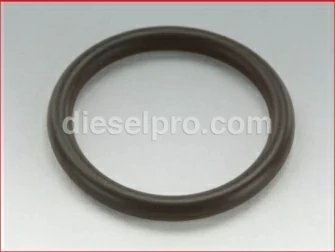

Twin Disc Oil Strainer O-Ring for Marine Transmission MG502

The oil strainer O-ring creates a critical seal between the strainer assembly and the transmission body. It prevents oil leaks and air intrusion, ensuring that the oil pump maintains suction and consistent flow throughout the lubrication system.

Key Features:

• Made from oil- and heat-resistant materials to maintain elasticity and sealing strength



• Ensures a leak-free seal between the strainer and housing



• Prevents pressure loss and protects the oil pump from air bubbles that could cause cavitation



• Designed specifically for MG502 transmissions for a perfect fit



When to Replace the O-Ring:

• Oil leaks near the strainer or pump inlet



• Evidence of air bubbles in transmission oil



• Flattened, cracked, or hardened O-ring material after extended use



Replacing the O-ring ensures proper suction pressure and full lubrication coverage inside the MG502.

Twin Disc Oil Pump Gasket for MG502

The oil pump gasket provides a secure seal between the oil pump housing and transmission body, keeping the lubrication system fully pressurized. Any degradation in this gasket can cause hydraulic pressure loss, oil leaks, or uneven clutch operation.

Key Features:

• Constructed from durable, oil-resistant gasket material for long-lasting performance



• Maintains hydraulic pressure for consistent clutch response



• Prevents oil seepage between mating surfaces under vibration and load



• Simple replacement during routine maintenance or oil pump installation



Always replace the gasket whenever the oil pump is removed or serviced to ensure leak-free operation.

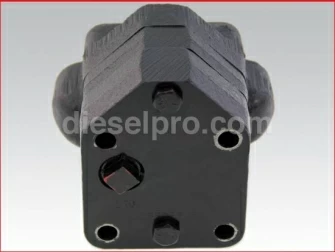

Twin Disc Oil Pump for Marine Gear MG502

The oil pump is the driving force behind the MG502’s lubrication and hydraulic systems. It circulates oil under pressure to keep bearings, gears, and clutch components lubricated, while also supplying the hydraulic force required for clutch engagement.

Key Features:

• Gear-driven, precision-machined design for smooth, consistent oil flow



• Built from corrosion-resistant marine-grade materials



• Designed to maintain optimal hydraulic pressure even at varying RPM levels



• Direct-fit replacement for MG502 transmissions—no modifications needed



When to Replace the Oil Pump:

• Low or unstable oil pressure readings



• Delayed clutch engagement or slippage under load



• Overheating or visible oil aeration



• Metallic debris detected in the oil system



Installing a new oil pump restores proper lubrication and ensures the MG502 operates efficiently under all marine conditions.

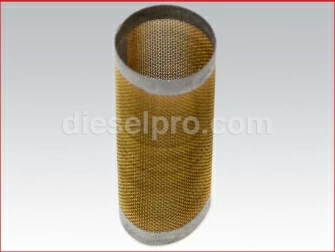

Twin Disc Oil Strainer for Marine Transmission MG502

The oil strainer serves as the first line of defense in the MG502’s lubrication circuit, filtering debris, clutch dust, and metal shavings before they reach the oil pump and internal components. A clean and functional strainer ensures uninterrupted oil flow and prevents premature wear on critical parts.

Key Features:

• Fine-mesh filtration designed to trap contaminants without restricting flow



• Durable construction for long-term reliability in marine environments



• Maintains consistent oil delivery to protect bearings and clutch plates



• Easy access for cleaning or replacement during maintenance



When to Replace or Clean the Strainer:

• Visible debris buildup or clogging



• Drop in oil pressure or sluggish clutch engagement



• Dirty or discolored oil after extended service intervals



Keeping the strainer clean ensures the MG502’s oil system remains efficient and prevents internal damage caused by contamination.

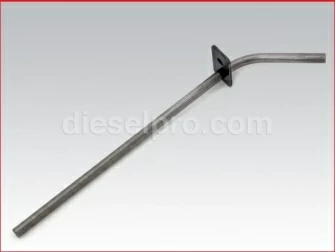

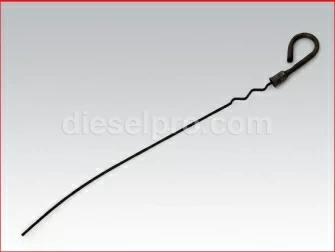

Tube and Dipstick for Twin Disc MG502 Marine Transmission

The dipstick and dipstick tube allow for precise monitoring of oil levels in the MG502 transmission. Proper oil level maintenance is critical for consistent hydraulic performance, cooling, and component longevity.

Key Features:

• Calibrated dipstick markings for accurate oil level readings



• Corrosion-resistant materials designed for long-term exposure to marine conditions



• Secure-fit tube prevents leaks and ensures accurate readings



• Easy to remove and reinstall during maintenance checks



When to Replace the Dipstick or Tube:

• Corrosion, bent tube, or worn threads causing loose fitment



• Faded or unreadable dipstick markings



• Evidence of oil leaks at the filler neck



Maintaining correct oil levels helps prevent overheating, low-pressure faults, and clutch or gear damage.

Importance of a Clean Oil System in the MG502

The MG502’s performance and longevity depend heavily on maintaining clean oil flow and stable hydraulic pressure. Over time, even small leaks, worn seals, or restricted strainers can lead to oil pressure drops and component failure. Regular inspection and timely replacement of the oil pump, gaskets, O-rings, and strainers ensure uninterrupted operation and protect your investment in this transmission.

Why Buy Twin Disc MG502 Parts From Diesel Pro Power

• Exact MG502 Fitment: Every part is specifically designed for the MG502—no modifications required.



• Marine-Grade Durability: All components resist corrosion, oil breakdown, and temperature extremes.



• Comprehensive Coverage: Includes all vital oil system components—pump, strainer, gaskets, O-rings, and dipstick—for a complete service solution.



• Trusted Worldwide: Diesel Pro Power has served over 40,000 marine customers globally with precision-fit Twin Disc parts and unmatched technical support.



• Fast Global Shipping: All MG502 parts are in stock and ready for immediate dispatch to minimize vessel downtime.
