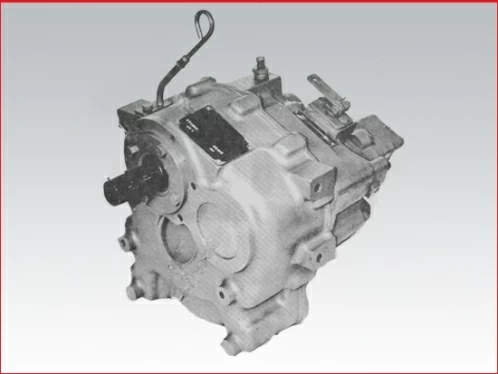

Twin Disc MG502 marine transmission ratio 1.54 to 1 - rebuilt

More Views

  • Twin Disc MG502 marine transmission ratio 1.54 to 1 - rebuilt
  • Twin Disc MG502 marine transmission ratio 1.54 to 1 - rebuilt

Twin Disc MG502 marine transmission ratio 1.54 to 1 - rebuilt

Price: $ 7,548.75

In stock

All Countries
30 Day
Return URL

Sold with refundable core deposit.


See details

Details

Twin Disc MG502 marine transmission with ratio 1.54 to 1 -  Remanufactured

Includes:

  • Mechanical selector valve assembly
  • Pilot housing flange
  • Oil pump
  • Oil level gauge
  • Output flange


It does not include the Torsional Isolator (sold separately)

General information:

  • Oil capacity 3.5 pints US Measure
  • Pressure range 300-350 PSI
  • Speed range 600-4000 pump RPM
  • SAE viscosity number 40 engine oil when working on oil temperature from 175 degrees to 210 degrees farenheit.


After placing your order online for this item, we will contact you to request the specific SAE housing size

See Warranty

weight: 250.00 Lbs.

MG502 1.5:1
+
