Twin Disc MG-5061 Rebuilt MG5061 Gear - Aftermarket

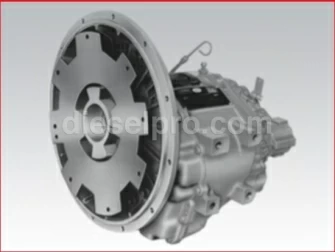

Twin Disc MG5061 Marine Transmission Parts — Rebuilt MG5061 Gear Section

The Twin Disc MG5061 family is a compact, work-ready marine transmission series engineered for reliable propulsion in small to mid-size commercial craft and demanding recreational vessels. On this catalog page you’ll find our rebuilt MG5061 options in the most requested gear ratios and case styles, including the straight-case MG5061SC and the 7-degree down-angle MG5061A. Every rebuilt transmission listed here is spin-tested before it leaves our facility, so you receive a unit that engages smoothly, shifts cleanly under load, and builds oil pressure as designed.

This section is organized to help you compare variations at a glance and then dive deeper into selection guidance, model differences, and practical fitment considerations. If you’re upgrading a vessel, matching a repower, or replacing a worn gearbox, the notes below will help you choose the correct MG5061 configuration quickly and with confidence.

Rebuilt MG5061 Options (Spin-Tested)

MG5061 / MG5061SC Straight Case — Popular Ratios

MG5061SC 1.00:1 (Direct Drive)
A zero-reduction, direct-drive choice for applications where prop speed should mirror engine speed. It’s a favorite for vessels requiring crisp maneuverability and minimal drivetrain complexity. Ideal when your propeller sizing and hull form already assume engine-speed parity.

MG5061SC 1.50:1
A versatile mid-reduction ratio that expands propeller selection and helps engines operate closer to their optimal torque band. Common in workboats and utility craft that benefit from improved low-speed thrust without sacrificing cruise efficiency.

MG5061SC 1.70:1
Sits between 1.50 and 2.00 for fine-tuning prop loading. When fuel economy, acceleration, and bollard pull all matter, 1.70:1 often delivers a helpful balance.

MG5061SC 2.00:1
One of the most widely specified ratios in the MG5061 range. The additional reduction supports a larger, more efficient propeller, stronger mid-range thrust, and smoother docking authority.

MG5061SC 2.50:1
Provides notable torque multiplication for heavier hulls, pushboats, and near-shore commercial service where slow-speed control, towing, or frequent station-keeping are key.

MG5061SC 3.00:1
The highest reduction commonly ordered in the straight-case MG5061 series on this page. Leverages a large-diameter prop for exceptional low-speed authority and load-moving capability.

All straight-case MG5061SC transmissions listed above are rebuilt and spin-tested.

MG5061A 7-Degree Down-Angle — Popular Ratios

The “A” variant features a 7-degree down-angle on the output shaft, simplifying shaft alignment and often reducing the engine’s installation height. That 7-degree geometry can create valuable engine-room clearance in many refits and new builds.

MG5061A 1.00:1 (Direct Drive)
Direct-drive response with the packaging benefits of a down-angle output. Helpful when you’re tight on vertical space but want the immediacy of 1:1.

MG5061A 1.50:1
A strong all-rounder that pairs well with cruise-focused setups seeking improved thrust and smoother engagement at harbor speeds.

MG5061A 1.70:1
Ideal for fine-tuning prop load in semi-displacement craft or heavier pleasure boats where acceleration and docking finesse both matter.

MG5061A 2.00:1
A common repower match. The combination of 2.00:1 reduction and 7-degree down-angle can simplify alignment while unlocking a more efficient propeller.

MG5061A 2.50:1
Selected for workboats, patrol craft, and utility vessels seeking higher bollard pull and predictable low-speed control with room to swing a larger prop.

All down-angle MG5061A transmissions listed above are rebuilt and spin-tested.

Understanding MG5061 Variants & Fitment

Straight Case (MG5061 / MG5061SC) vs. 7-Degree Down-Angle (MG5061A)

Straight Case (SC)

Output shaft is in-line with the input, making it a natural choice when the engine’s crankshaft and propeller shaft need to remain colinear.
Typically used where the stringer height, shaft log, and existing engine beds already accommodate an in-line geometry.
Great for refits that replace a like-for-like straight-case transmission.

7-Degree Down-Angle (A)

Output shaft sits 7 degrees lower relative to the input.
Helps lower the engine’s aft end, creating more clearance over stringers and under deck structures.
Can reduce or eliminate the need for aggressive shaft-log modifications during a repower.

Which should you choose?

If your vessel already has a down-angle box or you’re seeking added space over the transmission for exhaust runs, intercooler plumbing, or service access, the MG5061A is often the efficient path.
If alignment with existing shafting and mounts is the priority, the MG5061SC keeps things straightforward.

Choosing the Right Gear Ratio

Picking the correct ratio is about matching engine torque curve + hull form + propeller diameter/pitch:

1.00:1 maintains engine speed at the prop—best for designs already optimized around direct drive.
1.50:1–1.70:1 helps engines stay in their sweet spot under typical cruise loads and offers a wider prop selection.
2.00:1 is a proven middle ground for many displacement and semi-displacement hulls, enhancing acceleration and mid-range thrust.
2.50:1–3.00:1 serve heavier boats, push duty, and applications where low-speed authority, towing, or frequent station-keeping is critical.

Pro tip: If you’re torn between two ratios, consider your most demanding use case—tight-quarters maneuvering, towing, or long-range cruising—and favor the ratio that best supports that scenario with an efficient propeller diameter.

Rotation, Mounting, and Interface Notes

Engine Rotation & Output Direction: Match the transmission’s rated direction to your drivetrain plan. The MG5061 series is commonly applied in standard right-hand installations, but verify rotation and output direction against your propeller and shafting plan.
Bell Housing & Coupling: Confirm your SAE housing size and drive-plate/coupling interface during selection to ensure a clean mate with the engine flywheel housing and torsional coupling.
Mounting Footprint: Straight-case and down-angle units use different geometric envelopes. When converting from SC to A (or vice versa), review clearance at stringers, exhaust elbows, and shaft-seal hardware.
Cooling & Filtration: Ensure adequate oil cooling and clean filtration per the gearbox’s operating envelope. A well-sized oil cooler helps maintain consistent engagement feel and clutch durability during long harbor cycles or heavy towing.

Application Examples (What These Ratios Are Good At)

Harbor Work & Utility Duty

2.50:1 to 3.00:1 (SC or A) deliver resolute low-speed push for tug-assists, line-handling, and utility moves. Expect confident gear engagement and authoritative throttle response around docks and piers.

Coastal Patrol & Light Commercial

1.70:1 to 2.00:1 (SC or A) balance cruise efficiency with readiness to maneuver. Useful for rapid response, frequent idle-forward operation, and mixed-speed patrol patterns.

Recreational Cruising & Sport Utility

1.50:1 to 1.70:1 (A) is popular where the 7-degree down-angle simplifies installation in tight engine rooms without compromising acceleration and docking control.

Direct-Drive Classics & Repowers

1.00:1 (SC or A) shines in vessels designed around direct drive with a properly matched prop and hull form. You keep the crisp, “connected” throttle feel that many skippers prefer.

Why the MG5061 Series Is a Repower Favorite

Compact, Proven Package: The MG5061 architecture has an earned reputation for practical durability in service—simple to integrate, straightforward to maintain.
Flexible Geometry: Availability in straight-case and down-angle forms lets you solve real-world alignment challenges without reinventing the engine beds.
Ratio Coverage: From direct drive through 3.00:1, you can size a propeller that suits your hull’s hydrodynamics and your engine’s power band.
Spin-Tested Assurance: Each rebuilt MG5061 unit here is spin-tested, so you receive a transmission that has demonstrated clean upshifts, downshifts, and stable oil pressure behavior on the bench.

Selection Checklist (Save This Before You Order)

Case Style: Straight (MG5061/MG5061SC) or 7-degree down-angle (MG5061A)?
Gear Ratio: 1.00, 1.50, 1.70, 2.00, 2.50, or 3.00 to best match your hull and prop.
Engine Housing & Coupling: Verify SAE housing, drive plate, and coupling compatibility.
Shafting & Alignment: Confirm vertical and horizontal offsets, especially when switching between SC and A.
Cooling Path: Make sure your oil cooler and hose runs meet flow and temperature needs.
Controls: Mechanical or electronic actuation plan; cable runs, travel, and neutral safety integration.
Prop & Rudder Plan: Ensure prop diameter and tip clearance remain acceptable with the chosen reduction.

MG5061SC (Straight Case) — Quick Reference

Best for: In-line replacements, direct-drive classics, refits keeping existing shaft height.
Popular uses: Harbor maneuvering, coastal utility, direct-drive leisure craft.
Ratios on this page: 1.00 • 1.50 • 1.70 • 2.00 • 2.50 • 3.00 (all rebuilt, spin-tested).
Fitment note: Easiest path when your beds, shaft log, and exhaust were built around an in-line output.

MG5061A (7-Degree Down-Angle) — Quick Reference

Best for: Engine-room packaging, improved service access, alignment simplification.
Popular uses: Repowers where deck height and stringer geometry are tight; semi-displacement cruisers.
Ratios on this page: 1.00 • 1.50 • 1.70 • 2.00 • 2.50 (all rebuilt, spin-tested).
Fitment note: That built-in 7-degree down-angle can reduce driveline compromises and help with shaft/log alignment.

How to Think About Propeller Sizing with MG5061 Ratios

While exact propeller math belongs to your naval architect or prop shop, here’s a pragmatic approach that aligns with MG5061 ratio choices:

Start from Engine Torque Curve: Identify the rpm band where your engine makes durable, fuel-efficient torque.
Pick Ratio to Hit That Band at Cruise: Use 1.50–2.00 for many cruising hulls, 2.50–3.00 for heavier or push-duty service, and 1.00 when direct drive is part of the design DNA.
Check Tip Clearance: Larger props need adequate clearance to minimize vibration and cavitation.
Validate Reverse Authority: Ratios that help low-speed thrust also help reverse control, which is crucial for single-screw docking.

Service Considerations That Extend Gear Life

Clean Oil, Correct Viscosity: Fresh, spec-compliant fluid helps clutches engage consistently.
Cooler Health: Stable oil temps reduce varnish formation and keep engagement predictable.
Shift Discipline: Avoid rapid, repeated forward-neutral-reverse cycles at high rpm; steady shifts preserve clutch life.
Shaft Alignment: Re-check alignment after sea trials—settling on mounts can nudge coupling position.
Mount Integrity: Sound engine/trans mounts prevent harmful misalignment and shock loading.

Troubleshooting Symptoms & Ratio Re-Think

Sluggish Take-Off: Consider a higher reduction (e.g., from 1.50 to 1.70 or 2.00) and prop tweak.
Over-Rev at Cruise: Reduction may be too low; a step up in ratio can bring rpm down and improve fuel economy.
Docking Feels Abrupt: Sometimes a small ratio increase enables a larger prop with smoother bite at idle-forward.
Engine Labors at Mid-Range: Prop may be over-pitched for the ratio; consult your prop shop with sea trial data.

What You Get With Our Rebuilt Units

Spin-Tested: Each MG5061 listed here is spin-tested prior to shipping.
Ready for Integration: Configured for the ratio and case style you select, with the interfaces you specify.
Application Support: Guidance on case geometry, ratio choice, and common fitment pitfalls.

(If you require accessories such as coolers, couplings, or control components, ask for a coordinated package so everything arrives matched to your MG5061 variant.)

Frequently Compared Within the MG5061 Family

MG5061SC 2.00:1 vs. 1.70:1 (Straight Case): Choose 2.00:1 for heavier hulls or when you want a bit more idle-forward authority. Choose 1.70:1 for livelier throttle response on lighter boats.
MG5061A 2.00:1 vs. MG5061SC 2.00:1: Same reduction benefits; the A adds down-angle packaging advantages if engine-room geometry demands it.
1.50:1 vs. 1.00:1: If you’re moving away from direct drive, 1.50:1 opens prop options and improves maneuvering torque without a dramatic change in cruise characteristics.

Order Notes & Core Handling

Core Return: These MG5061 units are sold with a refundable core deposit. Returning a like-for-like core in acceptable condition streamlines your credit.
Configuration Confirmation: Before shipment, we’ll confirm case style, ratio, rotation, housing/coupling details, and any accessory requirements.
Documentation: Keep your build sheet and any test data with the vessel’s records for future service reference.

Why Buy from Diesel Pro Power

When uptime matters, you need more than a part number—you need a team that lives marine powertrain. Here’s why vessel owners and commercial operators choose us:

Spin-Tested Rebuilt Gearboxes: Every MG5061 unit on this page is spin-tested for smooth engagement and pressure stability before it leaves our facility.
Application-Driven Support: We help you select between straight-case and down-angle geometry, validate ratio choices, and anticipate integration details like couplings and cooler routing.
Fast, Reliable Fulfillment: Coordinated packing and shipment minimize yard time and keep projects on schedule.
Proven Customer Satisfaction: Trusted by a large global customer base built over decades of serving commercial and recreational fleets.
After-Sale Commitment: From installation clarifications to service intervals, we’re here to help you get the most from your transmission investment.

Whether you’re modernizing a single-screw cruiser or preparing a workboat for another busy season, our rebuilt, spin-tested Twin Disc MG5061 transmissions—available in both straight-case and 7-degree down-angle variants—deliver the fit, thrust, and control you’re looking for.
