Twin Disc MG514 marine transmission ratio 2 to 1 - rebuilt

More Views

  • Twin Disc MG514 marine transmission ratio 2 to 1 - rebuilt
  • Twin Disc MG514 marine transmission ratio 2 to 1 - rebuilt

Twin Disc MG514 marine transmission ratio 2 to 1 - rebuilt

Price: $ 20,250.00

In stock

All Countries
30 Day
Return URL

Shallow Case


Sold with refundable core deposit. See details

Details

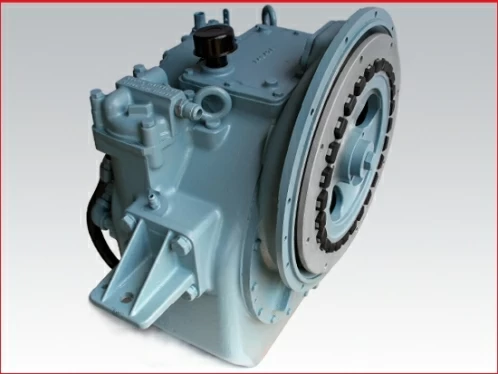

Twin Disc MG514 marine transmission with a ratio of 2 to 1 - Remanufactured

Includes:

  • Mechanical selector valve assembly (Control valve) -Pilot housing flange
  • Oil pump
  • Oil level gauge
  • Output flange

It does not include the Drive ring (sold separately)

General information:

  • Oil capacity 6 US gallons.
  • Pressure range 185-215 PSI @ 1800 rpm and 180 degrees farenheit
  • Maximum speed 3000 RPM
  • Operating: Oil viscosity SAE 30W engine oil, temperature 150 - 185 degrees farenheit.
  • Operating: Oil viscosity SAE 40W engine oil, temperature 185 - 210 degrees farenheit.
  • Oil pump capacity 13.5 gpm at 3000 rpm

Change oil and clean filter screen every six months or 1000 hours operation, whichever comes first.

After placing your order online for this item, we will contact you to request the specific SAE housing size

See Warranty

weight: 1209.00 Lbs.

MG514 2:1
+
