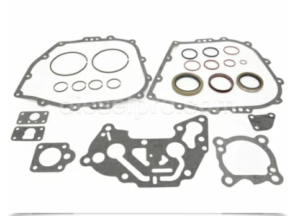

Gasket Kits For Twin Disc MG5050 Marine Transmission
General Information
1. What is the Twin Disc MG5050 Marine Gear?
The Twin Disc MG5050 is a marine transmission system designed for smooth and reliable power transfer in various marine applications, including commercial boats, yachts, and workboats.
2. What type of engine is compatible with the Twin Disc MG5050?
The Twin Disc MG5050 marine transmission is specifically designed for high-performance, medium-duty marine diesel engines. It is commonly used in:
- Cummins 6BTA 5.9 and 6CTA 8.3 engines
- Caterpillar 3116 and 3126 engines
- John Deere 6068 marine engines
- Volvo Penta TAMD series
- Other inline 6-cylinder engines in the 250–450 HP range
Key compatibility factors:
- Maximum input horsepower: ~500 HP @ 2500 RPM
- Maximum input torque: ~1000 lb-ft
- Engine rotation: Standard or opposite, depending on the transmission configuration
Always verify the SAE housing size (typically SAE #2 or SAE #3 for this model) and flywheel compatibility.
3. What gear ratios are available for the Twin Disc MG5050?
The Twin Disc MG5050 is available with the following standard reduction gear ratios:
- 1.26:1
- 1.45:1
- 1.51:1
- 1.93:1
- 2.04:1
- 2.45:1
Key notes:
- The ratio affects shaft speed vs engine speed, impacting thrust and fuel efficiency.
- Ratio selection depends on the engine’s torque curve, propeller size, and vessel type (planing vs displacement hull).
For precise matching, use the Twin Disc Application Guide or consult Diesel Pro Power’s tech support with your engine model and boat specs.
4. Is the Twin Disc MG5050 a mechanical or hydraulic transmission?
The Twin Disc MG5050 operates using a hydraulic clutch system, providing smooth shifting and efficient torque transfer.
5. Can the Twin Disc MG5050 be used for both commercial and recreational vessels?
Yes, the Twin Disc MG5050 is designed for both commercial and recreational marine applications, including fishing vessels, patrol boats, and private yachts.
Installation and Setup
6. What is the correct mounting orientation for the Twin Disc MG5050?
The MG5050 is typically installed in a horizontal orientation, but installation requirements depend on the specific vessel design.
7. How do I align the Twin Disc MG5050 with the engine?
Use a dial indicator to ensure precise shaft alignment. Misalignment can cause vibration, premature wear, and transmission failure.
8. What type of fasteners should be used for mounting?
Always use grade 8 or higher fasteners, torqued to the manufacturer’s specifications to prevent loosening under vibration.
9. Can I install the Twin Disc MG5050 myself?
Installation requires technical knowledge of marine propulsion systems. It is recommended to have a qualified marine technician handle the installation.
10. How do I know if my Twin Disc MG5050 is correctly installed?
After installation, check for smooth shifting, proper fluid levels, and correct alignment. Any excessive noise, vibration, or slippage may indicate improper installation.
Fluid and Lubrication
11. What type of transmission oil does the Twin Disc MG5050 require?
Use SAE 30 or SAE 40 marine transmission oil, depending on the operating temperature and manufacturer recommendations.
12. How often should I check the transmission fluid?
Check the fluid daily or before every operation to ensure proper lubrication and cooling.
13. How do I check the transmission oil level?
- Ensure the engine is off and the transmission is at normal operating temperature.
- Remove the dipstick, wipe it clean, reinsert, and check the level.
14. What happens if the transmission oil level is too low?
Low fluid levels can cause overheating, clutch slippage, and transmission failure.
15. How often should I change the transmission fluid?
Replace the transmission fluid every 250 to 500 operating hours or sooner if contaminated.
Maintenance and Servicing
16. What is the recommended maintenance schedule for the Twin Disc MG5050?
Routine checks should be done daily, with fluid changes every 250-500 hours and a full inspection every 1,000 hours.
17. What are the common wear parts that need replacement?
- Clutch plates

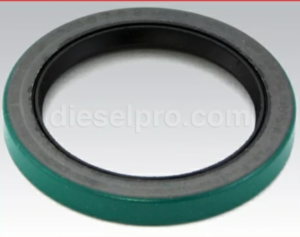

- Seals and gaskets
- Bearings
- Hydraulic filters

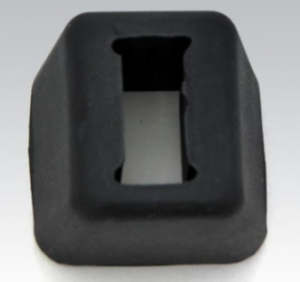

- Rubber Block
18. How do I clean the oil cooler?
Flush with marine-grade cleaner or a non-corrosive degreaser, ensuring unrestricted fluid flow.
19. How can I tell if my clutch is worn out?
Symptoms include slipping gears, delayed engagement, and unusual noises during shifting.
20. How do I know if my transmission is overheating?
Watch for high temperature readings, burnt-smelling oil, or sudden performance drops.
Troubleshooting and Repairs
21. Why is my transmission slipping?
Slippage is often due to worn clutch plates, low hydraulic pressure, or contaminated fluid.
22. What causes a delay in gear engagement?
Low oil pressure, a failing hydraulic pump, or worn-out clutches can cause shifting delays.
23. How do I fix transmission fluid leaks?
Identify the source of the leak and replace seals, gaskets, or damaged fittings as necessary.
24. Why is my transmission making a whining noise?
This could indicate low fluid levels, worn bearings, or a failing oil pump.
25. Can I rebuild the Twin Disc MG5050 myself?
While basic servicing can be done by experienced technicians, a full rebuild requires specialized tools and knowledge.
Performance and Usage
26. Can the Twin Disc MG5050 handle high torque loads?
Yes, but exceeding manufacturer torque ratings can cause premature failure.
27. How do I improve the lifespan of my Twin Disc MG5050?
Follow routine maintenance schedules, use high-quality fluids, and avoid excessive loads.
28. What is the best way to store a vessel with the Twin Disc MG5050?
If storing for extended periods, drain old fluid, lubricate moving parts, and protect against moisture exposure.
29. Can I upgrade components to enhance performance?
Some aftermarket clutches and cooling systems may improve durability, but always verify compatibility.
30. How does the Twin Disc MG5050 compare to other marine gears?
It offers high reliability, smooth operation, and superior hydraulic control compared to standard mechanical gears.
Replacement Parts and Sourcing
Parts Catalog for Twin Disc MG5050 Marine Transmissions
31. Where can I find replacement parts for the Twin Disc MG5050?
Diesel Pro Power offers premium aftermarket replacement parts that match or exceed OEM quality.
Parts Catalog for Twin Disc MG5050 Marine Transmissions
32. Should I use OEM or aftermarket parts?
OEM parts are reliable but often have long lead times, while Diesel Pro Power’s premium aftermarket parts offer faster availability and excellent quality.
Parts Catalog for Twin Disc MG5050 Marine Transmissions
33. What are the most commonly replaced components?
- Clutch packs
- Seals and gaskets
- Hydraulic filters
- Bearings
- Rubber Block
34. How do I verify the correct part number?
Check the Twin Disc nameplate, consult the service manual, or reach out to Diesel Pro Power’s support team.
35. Can I replace only the worn clutch plates?
It’s recommended to replace the entire clutch pack for even wear and optimal performance.
Warranty and Support
36. Does the Twin Disc MG5050 come with a warranty?
Yes. At Diesel Pro Power, all rebuilt Twin Disc MG5050 marine transmissions come with a one-year warranty that covers defects in materials and workmanship. This warranty is valid from the date of purchase and is backed by our expert support team to ensure peace of mind and reliable performance.
For warranty terms specific to new units, please consult the original manufacturer or contact us directly for assistance.
37. Do aftermarket parts from Diesel Pro Power come with a warranty?
Yes, Diesel Pro Power provides a quality guarantee on all premium aftermarket parts.
38. Can I return or exchange parts if they don’t fit or if I no longer need them?
Yes. At Diesel Pro Power, we’re committed to helping you get the right part—especially if you’ve worked with one of our experienced sales reps. If you no longer need the part or wish to return it, you can do so within 30 days of purchase, provided the item is unused, in its original packaging, and not a special-order or custom-built product.
All eligible returns are subject to a 10% restocking fee.
To initiate a return, please contact our team to request a Return of Goods Authorization (RGA). Returns will not be accepted without a valid RGA number.
39. How long does it take to receive OEM parts?
OEM parts may have long lead times, but Diesel Pro Power’s premium aftermarket parts are readily available for immediate shipping.
40. Can I get technical support for installation?
Yes, Diesel Pro Power offers expert guidance on part compatibility and installation.
Miscellaneous Questions
41. What are the common causes of Twin Disc MG5050 failure?
Poor maintenance, overheating, oil contamination, and misalignment are the leading causes.
42. Can I use synthetic transmission fluid?
Check with Twin Disc recommendations, as some synthetic oils may affect hydraulic performance.
43. How do I reset the hydraulic system after servicing?
Cycle the transmission through all gears, allowing fluid to circulate and pressure to stabilize.
44. Does the Twin Disc MG5050 require external cooling?
Yes, an oil cooler is necessary for high-load operations.
45. How do I prevent rust and corrosion?
Use corrosion-resistant coatings and ensure proper storage conditions.
For more details, expert guidance, and premium aftermarket parts, visit Diesel Pro Power—your trusted supplier for Twin Disc MG5050 Marine Gear parts.
