The Twin Disc MG509 marine gear is engineered for high performance and durability, but like any mechanical system, it can experience issues over time. Early detection and proper troubleshooting are critical for maintaining the transmission’s efficiency, reliability, and lifespan. Whether it’s slippage, noise, vibration, or overheating, knowing how to identify and address these common issues ensures smoother operation and reduces the risk of extensive damage.
This comprehensive guide explores common issues and symptoms, step-by-step troubleshooting procedures, and effective solutions for typical problems such as slippage, noise, and vibration.

---

Parts Catalog for Twin Disc MG509 Marine Transmissions
Rebuilt Twin Disc MG509 Marine Transmissions
Bearings For Twin Disc MG509 Marine Transmissions
Plate Kit For Twin Disc MG509 Marine Transmission
Gasket Kits For Twin Disc MG509 Marine Transmission

---

Identifying Common Issues and Symptoms with Twin Disc MG509

---

The first step in troubleshooting the MG509 is recognizing the early warning signs of potential problems. By understanding these symptoms, operators can take timely action to prevent minor issues from escalating into costly repairs or system failures.

---

1. Slippage During Operation

---

Symptoms:

---

• Delay in engaging gears.
• Engine revs increase without corresponding vessel movement.
• Jerky or hesitant movement when accelerating.
• Reduced propulsion efficiency.


  ---

Possible Causes:

---

• Low oil levels or degraded lubricant.
• Worn clutch plates or friction surfaces.
• Hydraulic system malfunction.
• Incorrect gear alignment.
• Faulty control systems.

---

2. Excessive Noise During Operation

---

Symptoms:

---

• Grinding, whining, or knocking noises while engaging or operating the transmission.
• Sudden, sharp noises when shifting gears.
• Continuous hum or buzz during propulsion.


  ---

Possible Causes:

---

• Worn bearings or gears.
• Misaligned shafts or couplings.
• Insufficient lubrication.
• Loose or damaged internal components.
• Foreign objects in the gear assembly.

---

3. Abnormal Vibrations

---

Symptoms:

---

• Excessive vibration felt in the hull or control panels.
• Vibrations increase with engine speed.
• Intermittent or constant vibration during propulsion.


  ---

Possible Causes:

---

• Misalignment between engine and transmission.
• Damaged or bent shafts.
• Worn bearings or couplings.
• Loose mounting bolts.
• Imbalanced propeller.

---

4. Overheating

---

Symptoms:

---

• High-temperature readings on gauges.
• Burning smell or smoke.
• Transmission shuts down or enters limp mode.


  ---

Possible Causes:

---

• Low lubricant levels.
• Contaminated or degraded oil.
• Clogged or malfunctioning cooling system.
• Excessive load or prolonged heavy-duty operations.

---

5. Fluid Leaks

---

Symptoms:

---

• Visible oil or coolant leaks around the transmission.
• Decrease in fluid levels without clear consumption.
• Puddles under the vessel after operation.


  ---

Possible Causes:

---

• Worn seals or gaskets.
• Cracked housing.
• Loose fittings or hoses.

---

6. Difficulty Engaging or Disengaging Gears

---

Symptoms:

---

• Gears fail to engage or disengage smoothly.
• Noticeable delays in gear response.
• Resistance or sticking when shifting.


  ---

Possible Causes:

• Hydraulic system malfunction.
• Worn clutch components.
• Low or contaminated lubricant.
• Mechanical misalignment.

---

7. Loss of Hydraulic Pressure

---

Symptoms:

---

• Erratic or delayed gear engagement.
• Loss of power during propulsion.
• Visible hydraulic fluid leaks.


  ---

Possible Causes:

---

• Low fluid levels.
• Worn hydraulic pump.
• Air in the hydraulic system.
• Blockages or contaminated fluid.

---

Step-by-Step Troubleshooting Procedures for Twin Disc MG509

---

Proper troubleshooting follows a logical, systematic process to identify and resolve the root cause of the problem. Below is a step-by-step guide for troubleshooting common MG509 issues.

---

Step 1: Conduct a Visual Inspection

---

• Inspect for Leaks: Check the transmission housing, seals, and gaskets for any signs of oil or coolant leaks.
• Look for Loose Components: Ensure all mounting bolts, fasteners, and coupling connections are secure.
• Check for Wear and Damage: Look for visible wear on components such as shafts, gears, and bearings.
• Review Control Systems: Inspect control cables, hydraulic connections, and electronic control systems for proper installation and functionality.

---

Step 2: Perform Fluid Checks

---

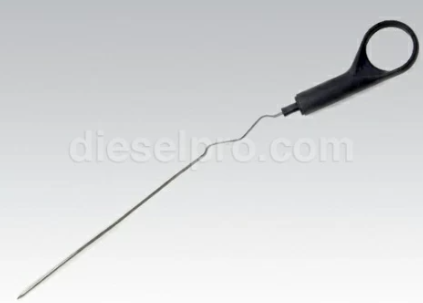

• Inspect Oil Levels: Use the dipstick to check oil levels. Low oil can cause slippage and overheating.
• Check Oil Condition: Look for discoloration, burnt smells, or metal particles in the oil. Contaminated oil should be replaced immediately.
• Inspect Hydraulic Fluid Levels: Low hydraulic fluid can cause engagement delays and erratic performance.

---

Step 3: Test Gear Engagement

---

• Engage and Disengage Gears: Test each gear manually to observe engagement smoothness and response times.
• Listen for Noises: Identify any unusual sounds, such as grinding or whining, during gear shifts.
• Check for Slippage: Ensure that the transmission engages correctly without hesitation or slipping.

---

Step 4: Check for Vibration and Noise Sources

---

• Inspect Shaft Alignment: Use alignment tools to ensure shafts are correctly aligned.
• Test Mounting Security: Ensure all mounts are tight and not causing excessive movement.
• Inspect Couplings: Check for wear or damage that may cause noise and vibration.

---

Step 5: Monitor Operating Temperatures

---

• Start the Engine and Run at Idle: Allow the transmission to warm up and check temperature readings.
• Monitor During Load: Increase the load gradually and observe temperature changes.
• Check Cooling System: Ensure coolant levels are adequate and the system is functioning correctly.

---

Step 6: Conduct Hydraulic Pressure Tests

---

• Check System Pressure: Use a pressure gauge to verify that hydraulic pressure meets the specified range.
• Look for Air in System: Bleed the system if air pockets are detected.
• Inspect Pump Functionality: Ensure the hydraulic pump is operating correctly and fluid is circulating.

---

Step 7: Document Findings and Proceed with Repairs

---

• Record Observations: Document any irregularities or potential failures.
• Consult Technical Manuals: Reference the MG509 service manual for specifications and repair procedures.
• Plan Repairs: Based on findings, proceed with part replacements, realignment, or other necessary repairs.

---

Solutions for Typical Problems with Twin Disc MG509

---

1. Resolving Slippage Issues

---

• Top-Up Lubrication Levels: Ensure the oil is at the correct level and replace if necessary.
• Replace Worn Clutches: If clutch plates are worn, replace them to restore proper engagement.
• Inspect Hydraulic Pressure: Ensure the hydraulic system is delivering correct pressure levels.
• Realign Shafts: Correct any misalignment to ensure smooth power transfer.

---

2. Addressing Excessive Noise

---

• Replace Worn Bearings: If bearings show signs of wear, replace them to eliminate grinding or knocking noises.
• Check for Foreign Objects: Remove any debris caught within the transmission housing.
• Realign Couplings: Adjust couplings to eliminate noise from misaligned shafts.
• Inspect Gear Teeth: Replace or repair any damaged or worn gear teeth.

---

3. Fixing Vibration Problems

---

• Realign Engine and Transmission: Use alignment tools to adjust for precise alignment.
• Inspect Propeller Shaft: Replace or repair bent or damaged shafts.
• Replace Damaged Mounts: Secure the transmission with new mounts if existing ones show wear.
• Balance Propeller: Ensure the propeller is balanced to prevent uneven vibration during operation.

---

4. Eliminating Overheating

---

• Top-Up Oil Levels: Ensure oil levels meet manufacturer recommendations.
• Clean or Replace Cooling Components: Flush coolant systems, replace filters, and clear blockages.
• Reduce Load Conditions: Operate under lighter loads until the issue is resolved.
• Replace Contaminated Oil: Use fresh, high-quality marine-grade oil.

---

5. Repairing Fluid Leaks

---

• Replace Worn Seals and Gaskets: Install new components to prevent leaks.
• Tighten Connections: Ensure all bolts, hoses, and fittings are secured.
• Inspect for Housing Cracks: Repair or replace damaged housing components.

---

6. Solving Gear Engagement Difficulties

---

• Flush Hydraulic System: Remove contaminated hydraulic fluid and refill with clean fluid.
• Replace Worn Clutch Components: Ensure clutches engage smoothly without resistance.
• Adjust Hydraulic Pressure: Calibrate the system to ensure proper pressure levels.

---

Summary

---

Troubleshooting the Twin Disc MG509 marine gear requires a systematic approach to identify symptoms, conduct tests, and implement effective solutions. Common issues—such as slippage, noise, vibration, overheating, and leaks—can significantly affect performance but are preventable with regular inspections and prompt troubleshooting.
By following the outlined procedures, operators can enhance operational efficiency, minimize downtime, and extend the service life of the MG509. For detailed technical information, always refer to the official service manual.

---

Disclaimer: For more detailed technical information and specific servicing procedures, always refer to the official Twin Disc MG509 service manual.

---
