Crankshaft and Related Components For Cummins KTA50

Cummins KTA50 Marine Engine (16 Cylinders) Was Used In A Ferry

Introduction to the Crankshaft System For Cummins KTA50

The Cummins KTA50 is a high-performance, heavy-duty diesel engine designed for applications in marine propulsion, oil and gas, mining, and power generation. At the heart of this powerhouse lies one of its most critical internal components: the crankshaft.

The crankshaft of the KTA50 is responsible for transforming the linear motion of the pistons into rotational motion, which powers the flywheel, transmission, and ultimately the machinery it’s driving. A failure in this system can bring the entire engine to a halt, making proper understanding and maintenance of the crankshaft and its associated components essential for any technician or operator working with Cummins KTA50 engines.

Function of the Crankshaft in the KTA50

The crankshaft converts the up-and-down motion of the pistons into rotary motion, which in turn powers all mechanical systems connected to the engine. As the pistons fire in a timed sequence, they push against the crankshaft journals via connecting rods. The KTA50 crankshaft, due to the engine’s 16-cylinder configuration, endures massive dynamic forces and requires both high strength and precision engineering.

This rotation is transmitted through the flywheel to the drivetrain or generator, depending on the engine’s application.

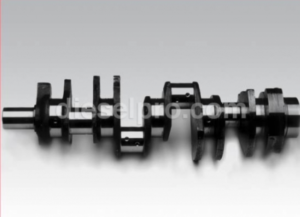

Materials and Construction of the Crankshaft For Cummins KTA50

The crankshaft for the Cummins KTA50 is forged from high-quality alloy steel to withstand the immense stress it encounters during engine operation. It is:

Fully counterweighted to balance the mass of the reciprocating pistons and rods.
Induction-hardened at bearing journals and fillets to reduce wear.
Precision-ground to maintain exact tolerances and avoid vibration or imbalance.

The use of induction hardening and nitriding on some versions ensures long-term resistance to fatigue and scoring.

Crankshaft Design Characteristics For Cummins KTA50

The crankshaft in the KTA50 features several key design elements:

Main Journals: These are the points at which the crankshaft is supported within the engine block. They ride on main bearings and carry the bulk of the load.
Rod Journals (Crank Pins): These offset journals are connected to the pistons via the connecting rods and translate piston motion into rotation.
Oil Passages: Internal oilways are drilled into the crankshaft to ensure lubrication reaches all critical surfaces.
Flange: The crankshaft has a flange at the rear to mount the flywheel and transfer power.

Given the engine’s V16 design, balance is critical, and harmonic dampers are used to manage torsional vibration.

Associated Components With the Crankshaft For Cummins KTA50

1. Main Bearings

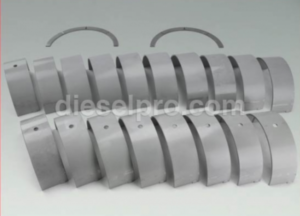

New crankshaft shell set, for use in Cummins KTA50 engines. Standard size. Includes enough upper bearing, lower bearings, and thrust washers to service the entire engine. — New crankshaft shell set, for use in Cummins KTA50 engines. Standard size.
Includes enough upper bearing, lower bearings, and thrust washers to service the entire engine.

Main bearings support the crankshaft in the block and allow it to rotate smoothly. In the KTA50, these are usually made of tri-metal (steel backing, copper-lead intermediate, and a soft overlay), offering both durability and conformity.

Bearings are categorized as:

Upper and lower half-shells
Thrust bearings (located at the main journals to control axial movement of the crankshaft)

Main bearings must be installed with exact clearance. Improper clearance can lead to overheating, oil starvation, and eventual bearing failure.

2. Connecting Rods and Bearings

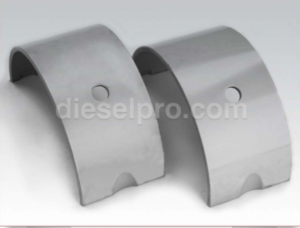

Bearing Set for Cummins KT38 & KT50 Engines - Standard — Bearing Set for Cummins KT38 & KT50 Engines – Standard

The connecting rods link the crankshaft to the pistons. They house rod bearings, which are similarly constructed to main bearings and require precise clearance for oil lubrication.

The KTA50 uses robust forged steel connecting rods with drilled oil passages to facilitate internal lubrication of the piston pin and upper rod bearing surfaces.

3. Crankshaft Seals

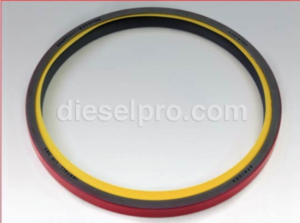

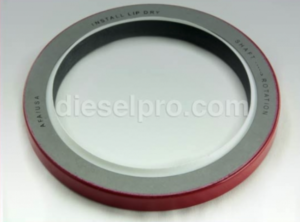

Crankshaft Seal Kit For Cummins KTA50 (Front Seal)

There are seals at the front and rear ends of the crankshaft:

Front crankshaft seal: Prevents oil leakage from the timing cover.
Rear crankshaft seal: Prevents oil leakage at the flywheel housing.

Modern replacements often use Viton or PTFE material for better durability under heat and oil exposure.

4. Flywheel and Ring Gear

The crankshaft flange connects to the flywheel, which acts as a mechanical energy buffer and provides a mounting surface for the ring gear, which engages with the starter motor.

Balancing the flywheel and crankshaft together is essential during engine rebuilds.

5. Vibration Damper

Mounted on the front end of the crankshaft, the torsional vibration damper (or harmonic balancer) absorbs vibrations that arise from the firing impulses of the engine. If this component fails, it can lead to crankshaft fatigue and eventual fracture.

Common Crankshaft Issues and Failure Modes For Cummins KTA50

Understanding failure modes can help in diagnosing and preventing catastrophic engine failures:

1. Bearing Wear or Seizure

This is often caused by:

Oil contamination
Insufficient oil pressure
Misalignment of the crankshaft
Improper bearing clearance during installation

2. Crankshaft Scoring

Occurs when the bearing material is worn away or debris enters the oil film. Scoring on journal surfaces leads to heat buildup and loss of lubrication.

3. Crankshaft Cracks

Cracks can develop due to:

Excessive torsional vibration
Improper torque of flywheel or pulley bolts
Fatigue over high operating hours

Dye penetrant or magnetic particle inspection can be used during overhaul to detect these issues.

4. Thrust Bearing Failure

Results in axial movement of the crankshaft (end play). This leads to transmission gear misalignment, oil pump wear, and even crankshaft breakage.

Inspection and Measurement During Overhaul For Cummins KTA50

During major overhauls or rebuilds, proper crankshaft inspection is critical. Here’s what technicians should focus on:

1. Runout Measurement

Using a dial gauge on V-blocks, the crankshaft should be measured for runout at multiple points. Excessive runout indicates bending.

2. Journal Diameter Check

All main and rod journals should be measured with a micrometer at multiple points to check for out-of-round or taper wear.

Cummins provides specifications for:

Standard journal diameter
Maximum taper and out-of-round values
Oversize grinding limits

These values must be followed exactly. For full tolerances and service limits, refer to the OEM manual.

3. Fillet Radius and Oil Hole Inspection

The crankshaft fillets must be free of cracks or sharp edges, and oil passages must be clean and free from debris or carbon buildup.

Regrinding and Polishing Procedures For Cummins KTA50 Crankshafts

When journals are worn beyond limits but not cracked or broken, regrinding is possible. This involves:

Grinding journals to the next undersize (e.g., 0.010″, 0.020″)
Using matching undersized bearings
Final polishing for a mirror finish surface

Caution: Excessive grinding reduces the strength of the crankshaft and should not be done more than what’s allowed in the OEM specifications.

Crankshaft Installation Guidelines For Cummins KTA50

Correct installation is just as important as machining. Always:

Clean all oil passages with brushes and solvent
Use plastigage or dial bore gauges to check bearing clearance
Apply clean engine oil or assembly lube to bearings before installing
Install bearings and thrust washers with correct orientation
Torque main bearing caps in proper sequence using calibrated torque wrench
Recheck crankshaft end play

Use the proper lifting techniques and fixtures—crankshafts are extremely heavy and susceptible to damage from mishandling.

Torque Specs and End Play Limits For Cummins KTA50 Crankshaft

Proper torque values and clearances must be followed. While detailed figures are proprietary to Cummins and must be referenced from the service manual, general values include:

Main bearing cap torque: Typically in the range of 400–600 lb-ft depending on the model
End play (thrust bearing clearance): Usually ranges between 0.004″–0.012″

Refer to the official Cummins KTA50 service manual for exact numbers specific to your CPL (Control Parts List) configuration.

Disclaimer: Always refer to the official Cummins service manual for exact specifications, tolerances, and procedures when installing or servicing the crankshaft and related components.

Crankshaft Lubrication System Overview For Cummins KTA50

The crankshaft relies on pressurized lubrication for survival. The KTA50 oil system uses a gear-driven lube pump to send oil through galleries in the block and into the crankshaft.

Key Points:

Oil is delivered directly to main bearings and through the crankshaft to the connecting rods.
Internal passages in the crankshaft feed oil to piston cooling jets (in turbocharged engines).
Regular oil analysis and filter changes are essential to protect the crankshaft.

Failure of this system can result in catastrophic failure within minutes.

Preventive Maintenance Tips For Cummins KTA50 Crankshaft

To maximize crankshaft life:

Change oil and filters at scheduled intervals.
Use high-quality engine oil approved for KTA engines.
Inspect crankcase pressure and oil pressure gauges regularly.
Perform vibration analysis to detect imbalance or damper failure.
Conduct boroscope inspections if accessible during scheduled downtime.
Check for excessive end play during major services.

When to Replace or Rebuild a Crankshaft For Cummins KTA50

Rebuilding a crankshaft is viable if:

No cracks are detected
Journals can be ground within allowable undersize limits
Oil passages are free and unobstructed

A replacement is necessary if:

Cracks are detected on fillets or main journals
Crankshaft has excessive runout
Oil holes are compromised
The unit has suffered a severe bearing seizure

High-quality aftermarket crankshafts are available and can be a cost-effective alternative to OEM units, provided they meet the original specifications.

Recommended Parts From Diesel Pro Power

For operators and rebuilders of the Cummins KTA50, Diesel Pro Power offers a wide range of premium aftermarket components compatible with the crankshaft system, including:

Crankshafts (new and remanufactured)
Main bearings
Rod bearings
Thrust bearings
Front and rear crankshaft seals
Vibration dampers
Flywheel bolts and ring gears
Connecting rods

Each part is engineered to match OEM performance and backed by a warranty, providing an affordable alternative to OEM parts without sacrificing quality.

FAQ – Crankshaft and Components For Cummins KTA50

Q: How often should the crankshaft be inspected in a KTA50 engine?
A: During every major overhaul (typically every 15,000–20,000 hours), or sooner if abnormal vibrations, low oil pressure, or metal shavings in the oil are detected.

Q: Can a KTA50 crankshaft be reused after a bearing seizure?
A: Possibly, but it requires thorough inspection for cracks, warping, and scoring. If journals are undersized beyond repair, replacement is required.

Q: How do I know if my vibration damper is failing?
A: Symptoms include unusual engine vibrations, noise from the front of the engine, or premature failure of front seals or bearings.

Q: What type of crankshaft bearings does the KTA50 use?
A: Tri-metal bearings (steel-backed with copper-lead intermediate and overlay), available in standard and undersize dimensions.

Q: Can I install a crankshaft without specialized tools?
A: No. Due to the weight and precision needed, a lifting fixture, micrometers, dial indicators, and torque wrenches are essential.

Q: Is crankshaft replacement common on KTA50 engines?
A: No. When maintained properly, the crankshaft can last through multiple overhauls. Failures typically result from oil starvation or overloading.

Q: What is crankshaft end play, and why is it important?
A: End play is the axial movement of the crankshaft within the engine. Excessive end play can lead to seal failure, gear misalignment, and premature wear.

Q: Are Diesel Pro Power crankshafts direct replacements for Cummins OEM?
A: Yes. Diesel Pro Power offers aftermarket crankshafts that meet or exceed OEM specifications, ensuring reliable performance.
