Detailed Overhaul Process For Detroit Diesel Engines (271, 371, 471, 671)
The overhaul of the Detroit Diesel Series 71 engine is a complex but necessary process to restore the engine to its peak operating condition. Over time, engine components wear down, and an overhaul ensures that critical parts are inspected, repaired, or replaced as needed. This guide outlines the complete overhaul process, ensuring all vital steps are covered for engine longevity and performance.
1. Preparation for Overhaul
Before starting the overhaul, proper preparation is key to ensuring an organized and efficient process:
- Work Area Setup: Set up a clean, well-lit workspace with an engine stand. Organize tools and trays for holding small parts and fasteners.
- Tools and Equipment: Gather all necessary tools, including micrometers, dial indicators, bore gauges, torque wrenches, and pullers. Refer to the Tools and Equipment section for a complete list.
- Replacement Parts: Have replacement parts ready, such as gaskets, seals, bearings, piston rings, and injectors.
- Manual and Specifications: Keep the engine manual nearby for reference on torque values, clearances, and other critical specifications.

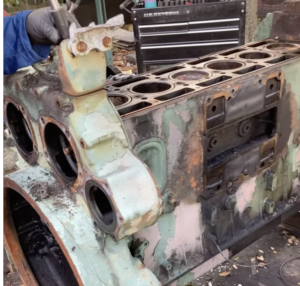

2. Engine Disassembly
Complete engine disassembly is necessary to access and inspect all components. Follow these steps to disassemble the engine:
- Drain Fluids:
- Drain all fluids, including engine oil, coolant, and fuel, to avoid contamination during disassembly.
- Remove External Components:
- Remove external components such as the alternator, starter motor, fuel pump, exhaust and intake manifolds, turbocharger (if applicable), and oil cooler. Label wires and hoses to ensure proper reassembly.
- Cylinder Head Removal:
- Loosen cylinder head bolts in a criss-cross pattern to avoid warping. Carefully lift the head off and inspect the gasket for signs of leakage or damage. Set the cylinder head aside for cleaning and inspection.
- Remove Pistons and Connecting Rods:
- Remove the oil pan, disconnect the connecting rods from the crankshaft, and push the pistons out of the cylinder bores. Mark the pistons and rods to ensure they are reinstalled in the same cylinders.
- Crankshaft Removal:
- Remove the main bearing caps and thrust bearings, then lift out the crankshaft. Protect the journals from damage during removal.
- Camshaft Removal:
- Remove the camshaft by disconnecting the timing gears. Inspect the lobes and bearings for signs of wear.
- Flywheel and Timing Gear Removal:
- Remove the flywheel and timing gears. Mark alignment points for proper reassembly.
- Remove the flywheel and timing gears. Mark alignment points for proper reassembly.
3. Component Inspection and Measurement
Carefully inspect and measure each component to assess whether they need repair or replacement. Precision measurement tools should be used to ensure components meet specifications.
- Cylinder Bores:
- Inspection: Check for wear, scoring, or out-of-roundness in the bores using a bore gauge. Measure for taper and ovality.
- Measurement Tolerance: Bores with taper or ovality greater than 0.005 inches (0.127 mm) require honing or re-sleeving.
- Cylinder Liner Installation: If liners are worn, remove them using a liner puller and inspect the liner seats. Install new liners using a liner installer tool and ensure that liner protrusion is within 0.001 to 0.005 inchesabove the deck surface.
- Crankshaft:
- Inspection: Check journals for scratches or wear. Use a micrometer to measure journal diameters and ensure they are within tolerances.
- Crankshaft Runout: Measure runout with a dial indicator to ensure the crankshaft is straight. Maximum runout is 0.001 to 0.002 inches (0.025 to 0.050 mm).
- Thrust Bearing End Play: Measure crankshaft end play with a dial indicator. Acceptable limits are 0.002 to 0.010 inches (0.050 to 0.254 mm).
- Pistons and Rings:
- Inspection: Inspect pistons for cracks, scoring, and wear. Measure the diameter of the pistons with a micrometer.
- Piston Rings: Use a feeler gauge to check piston ring end gaps when installed in the bore. Gaps should be between 0.010 to 0.020 inches (0.25 to 0.50 mm). Ensure the rings are properly staggered by 120 degreesduring installation to prevent blow-by.
- Ring Compressor: Use a piston ring compressor when reinstalling rings to avoid damaging them.
- Camshaft and Bearings:
- Inspection: Check camshaft lobes for wear or damage. Measure camshaft lobe height with a micrometer to ensure they meet specifications.
- Timing Gear Inspection: Inspect the camshaft timing gears for wear or damage. Replace gears if any teeth are chipped or worn.
- Valves, Seats, and Guides:
- Inspection: Inspect valves for pitting, burning, or cracks. Check valve seats for wear and ensure valve faces seat properly.
- Valve Seat Cutting: If necessary, recut the valve seats using a valve seat cutter. The valve stem-to-guide clearance should be checked with a micrometer. Replace valve guides if clearance exceeds 0.0015 to 0.003 inches (0.038 to 0.076 mm).
- Bearings:
- Inspection: Check main and rod bearings for signs of wear, scoring, or damage. Replace worn bearings as needed.
- Clearance Measurement: Measure bearing clearances with plastic gauge or a micrometer. Main and rod bearing clearance should be 0.0015 to 0.0035 inches (0.038 to 0.089 mm).
- Gaskets and Seals:
- Inspection: Inspect all gaskets and seals for leaks or wear. Replace all gaskets and seals during reassembly, ensuring proper sealing.
- Sealant Application: Apply a thin layer of RTV silicone sealant to certain areas like the valve cover gasket for extra sealing, but avoid overapplication.
4. Cleaning and Component Preparation
Clean all components thoroughly to remove dirt, oil, carbon, and rust, ensuring a clean reassembly.
- Component Cleaning:
- Steam Cleaning: Use steam cleaning for large parts such as the cylinder block and oil pan to remove grease and oil.
- Ultrasonic Cleaning: Use ultrasonic cleaners for intricate parts like injectors, ensuring all passages are free of carbon deposits.
- Chemical Degreasers: Use degreasers on pistons, valves, and other components that have heavy carbon buildup.
- Rust Prevention:
- After cleaning, dry all components thoroughly using compressed air or heat. Apply a rust-preventive coating on metal surfaces if reassembly will not happen immediately.
- After cleaning, dry all components thoroughly using compressed air or heat. Apply a rust-preventive coating on metal surfaces if reassembly will not happen immediately.
5. Engine Reassembly
Reassemble the engine carefully, following all proper procedures and torque specifications.
- Install Crankshaft and Bearings:
- Install the crankshaft with new main bearings, lubricating them before installation. Torque the main bearing caps to the manufacturer’s specifications. Measure end play to ensure it is within tolerance.
- Install Pistons and Connecting Rods:
- Install new piston rings and compress them with a ring compressor. Insert the pistons into the bores and connect the rods to the crankshaft. Torque the rod bolts to the specified values.
- Install Cylinder Head:
- Install a new cylinder head gasket, then place the cylinder head onto the block. Tighten the head bolts in a criss-cross pattern and torque them to 200-220 lb-ft (or the manufacturer’s specification).
- Install Camshaft and Timing Gear:
- Install the camshaft and timing gears, ensuring correct alignment with timing marks.
- Reinstall External Components:
- Reattach the fuel pump, intake and exhaust manifolds, turbocharger (if applicable), and other external components.
- Install Oil Pan and Accessories:
- Reinstall the oil pan, oil pump, and other accessories. Ensure gaskets are properly seated and fasteners are torqued correctly.
- Reinstall the oil pan, oil pump, and other accessories. Ensure gaskets are properly seated and fasteners are torqued correctly.
6. Testing and Final Adjustments
Once reassembly is complete, test the engine to ensure it functions properly.
- Leak Testing:
- Perform a pressure or vacuum test to check for leaks in the cylinder head, seals, and other critical areas.
- Start the Engine:
- Start the engine and allow it to reach operating temperature. Monitor oil pressure, coolant temperature, and check for abnormal noises.
- Adjust Valve Clearance and Injector Timing:
- Perform final adjustments on valve clearances and injector timing to ensure the engine runs smoothly.
- Engine Break-In Procedure:
- During the break-in period, avoid full load operation. Idle the engine for the first 30 minutes, gradually increasing RPM. Perform an oil change after the first 50-100 hours to remove debris from the break-in process.
Conclusion To Overhaul Process
The overhaul process for the Detroit Diesel Series 71 engine is a detailed procedure requiring careful disassembly, inspection, cleaning, and reassembly of engine components. Following each step thoroughly and using the right tools ensures the engine will perform efficiently and reliably. Regular inspections and proper replacements during reassembly will help extend the engine’s lifespan and maintain peak performance.
