Disassembling The Starting Motor, Battery-Charging Generator, and Electrical Equipment For Series 71 Inline Engines (271, 371, 471, 671)

---

---

The starting motor, battery-charging generator (alternator), and electrical equipment are essential components that require careful disassembly to avoid damage and ensure safe handling of electrical systems. Here’s a detailed guide for safely removing and inspecting these components from the Detroit Diesel Series 71 engine.

---

Safety Precautions:

---

• Disconnect the Battery: Before working on any electrical components, always disconnect the battery to prevent accidental short circuits or electrical shock. Disconnect the negative terminal first, followed by the positive terminal.
• Wear Insulated Gloves and Goggles: To protect against potential electrical hazards, always wear insulated gloves and safety goggles. These precautions protect you from accidental contact with live wires or electrical arcs.
• Ensure a Dry Environment: Make sure the workspace is dry and free from any moisture that could cause electrical issues during disassembly.

---

Disassembly Steps:

---

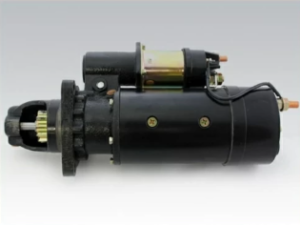

Starting Motor (Starter)

---

The starter motor engages the engine’s flywheel to crank the engine for ignition. Disassembly must be done with care due to its electrical connections and heavy weight.

---

• Locate the Starter:
  • Follow the thick positive battery cable to the starter solenoid, which is typically mounted near the flywheel housing.
• Disconnect Electrical Connections:
  • Loosen the positive cable from the starter solenoid using a wrench. Also, disconnect any smaller wires attached to the starter and label them for easy reassembly.
• Remove the Mounting Bolts:
  • Loosen and remove the bolts securing the starter to the engine or flywheel housing. Be cautious when removing the last bolt, as the starter can be heavy. Support the starter while lowering it from the engine.
• Inspect the Starter:
  • Check the solenoid terminals for wear and ensure the housing is free of cracks. Examine the starter gear for damage, and ensure the mechanism moves freely without obstruction.


    ---

Battery-Charging Generator (Alternator)

---

The alternator is responsible for charging the battery and supplying power to the engine’s electrical systems while the engine is running.

---

---

• Locate the Alternator:
  • The alternator is connected to the engine via a belt-driven pulley system. It is usually positioned near the top or side of the engine.
• Disconnect Electrical Connections:
  • Loosen and remove the electrical connections from the alternator, labeling them for accurate reinstallation. Disconnect both the positive cable and any additional smaller wires attached to the alternator.
• Loosen the Belt:
  • Relieve the tension on the belt by loosening the tensioner pulley or adjusting the mounting bracket. Once the belt is loose, carefully slide it off the alternator pulley.
• Remove the Alternator:
  • Use a socket wrench to remove the mounting bolts securing the alternator to the engine. Once all bolts are removed, lift the alternator out of the engine bay. Ensure the alternator is stored in a dry and safe area.
• Inspect the Alternator:
  • Spin the pulley by hand to check for bearing smoothness. If the bearings are noisy or feel rough, the alternator may need to be replaced. Also, inspect the alternator housing for cracks or signs of overheating.


    ---

Electrical Equipment (Sensors, Control Modules, Wiring)

---

The engine’s electrical equipment includes sensors, control modules, and wiring that help manage various functions like temperature, oil pressure, and fuel delivery.

• Disconnect Wiring and Sensors:
  • Carefully unplug electrical connectors, sensor wires, and harnesses from various engine components. Label each wire and connector to ensure proper reassembly.
• Remove Electrical Equipment:
  • Remove any electrical components such as control modules or relays mounted on the engine. Place these components in a clean, dry location to avoid damage from dirt or moisture.
• Inspect for Corrosion:
  • Check all electrical connectors, sensors, and wiring for signs of corrosion, wear, or damage. Replace any components that show signs of degradation to maintain proper electrical system functionality.

---

Reassembly Notes:

---

• Reconnect Electrical Components in Reverse Order:
  • When reassembling, follow the reverse order of disassembly to reconnect all electrical components. Ensure that all wires and cables are securely fastened and correctly routed.
• Tighten Electrical Connections Properly:
  • Electrical connections should be tight enough to ensure a solid connection, but not overtightened to avoid damaging the terminals or stripping the threads.
• Inspect and Replace Any Damaged Wiring:
  • During reassembly, replace any wiring or connectors that show signs of damage. Ensure all connectors are clean, free of corrosion, and securely fastened.
• Reconnect the Battery Last

• • Once all electrical components are reinstalled, reconnect the battery. Always connect the positive terminal first, followed by the negative terminal to minimize the risk of electrical shock or sparks.
