FAQ’s For Servicing The Twin Disc MG507 Marine Gear

March 12, 2025

1. What is the Twin Disc 507 Marine Gear?

The Twin Disc 507 Marine Gear is a marine transmission system designed to transfer power from an engine to a vessel’s propeller. It provides efficient power transfer and enables smooth shifting between forward, neutral, and reverse gears.

2. What are the key specifications of the Twin Disc 507 Marine Gear?

Gear Ratios: Commonly 1.5:1, 2:1, 2.5:1, and 3:1.
Horsepower Rating: Up to 500 HP, depending on the model.
Weight: Approximately 500-700 lbs, depending on configuration.
Rotation: Available for both left-hand and right-hand rotations.

3. How do I identify my Twin Disc 507 model?

Check the data tag mounted on the transmission housing. It includes the model number, serial number, gear ratio, and rotation direction. If the tag is missing, consult an experienced marine technician.

4. What type of oil should I use for the Twin Disc 507?

Use SAE 30 or SAE 40 high-quality marine transmission oil. Ensure it’s compatible with hydraulic clutches and meets the OEM’s viscosity requirements.

5. How often should I change the oil in the Twin Disc 507?

Change the oil every 250 hours of operation or at least once a year, whichever comes first. Inspect the oil regularly for contamination or color changes.

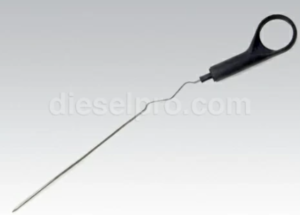

6. How do I check the oil level in the Twin Disc 507?

Ensure the transmission is at operating temperature.
Stop the engine and allow the oil to settle for 5 minutes.
Remove the dipstick, wipe it clean, reinsert, and remove to check the level.

7. What happens if I use the wrong oil?

Incorrect oil can lead to poor lubrication, overheating, and premature wear of internal components. Always use oil that meets the recommended specifications.

8. How do I properly drain the oil from the Twin Disc 507?

Run the engine to warm up the oil.
Shut off the engine.
Remove the drain plug and allow oil to completely drain.
Replace the plug and refill with new oil.

9. What are common symptoms of transmission issues in the Twin Disc 507?

Slipping gears.
Delayed engagement.
Excessive noise or vibration.
Overheating.
Oil leaks.

10. What causes slipping in Twin Disc 507 gears?

Common causes include low oil levels, contaminated oil, worn clutch plates, or damaged seals.

11. How can I prevent gear slipping in the Twin Disc 507?

Maintain proper oil levels.
Use recommended oil types.
Regularly inspect clutch plates for wear.
Address leaks promptly.

12. What is the correct procedure for adjusting the clutch?

Refer to the OEM specifications for torque settings and adjustment guidelines. Incorrect adjustment can lead to gear slippage or engagement issues.

13. What should I do if my Twin Disc 507 overheats?

Check oil levels and quality.
Inspect for cooling system issues.
Ensure proper ventilation around the gear.
Address any obstructions in the oil cooler.

14. How often should I inspect the oil cooler?

Inspect every 100 hours of operation and clean as necessary to prevent clogging and ensure optimal heat exchange.

15. How do I know if my oil cooler needs replacement?

Signs include persistent overheating, oil contamination with water, or visible damage to the cooler.

16. How do I troubleshoot shifting issues in the Twin Disc 507?

Check hydraulic pressure levels.
Inspect control linkages for alignment.
Ensure correct oil viscosity and levels.
Inspect clutch plates for wear.

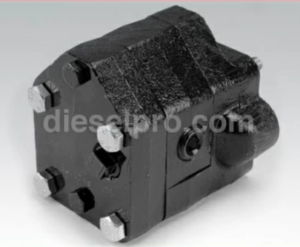

17. What hydraulic pressure should the Twin Disc 507 maintain?

Hydraulic pressure typically ranges between 250-300 psi. Consult the OEM manual for specific requirements.

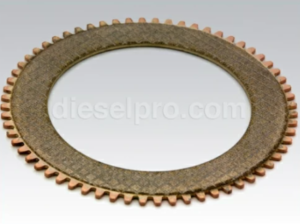

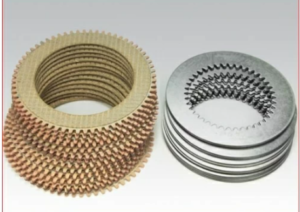

18. What is the process for replacing clutch plates?

Remove the transmission housing cover.
Extract the worn clutch plates.
Install new plates as per the assembly sequence.
Reassemble and test for proper function.

19. Can I rebuild the Twin Disc 507 myself?

If you have mechanical expertise, it’s possible. However, complex rebuilds should be done by a certified marine mechanic to ensure precision.

20. How long does a rebuild take?

A complete rebuild typically takes 10-20 hours, depending on the extent of wear and availability of parts.

21. What tools are needed for a rebuild?

Torque wrench.
Seal puller.
Snap ring pliers.
Hydraulic pressure gauge.

22. When should I consider a full rebuild?

If the transmission experiences persistent slipping, severe leaks, or abnormal noises despite maintenance, a rebuild is advisable.

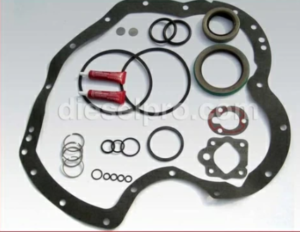

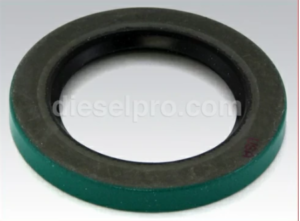

23. How do I replace the transmission seals?

Drain the oil.
Remove the old seals with a seal puller.
Install new seals using a seal driver.
Refill with oil and test for leaks.

24. What causes transmission oil leaks?

Worn seals or gaskets.
Overfilled oil.
Loose drain plugs.
Cracks in the housing.

25. How do I properly align the transmission with the engine?

Use alignment tools to ensure the transmission flange and engine are correctly positioned. Misalignment can cause vibrations and premature wear.

26. What are the signs of misalignment?

Excessive vibration.
Uneven wear on clutch plates.
Noise during operation.

27. How do I replace the damper plate?

Disconnect the transmission from the engine.
Remove the damaged damper plate.
Install the new damper plate securely.
Reattach the transmission and check for alignment.

28. What is the service life of a damper plate?

Typically, 5,000 to 10,000 hours of operation, but it varies depending on operating conditions.

29. Can I use aftermarket parts for repairs?

Yes, high-quality aftermarket parts can offer equivalent performance and durability at a lower cost.

30. How do I know if a part is worn out?

Look for signs such as pitting, excessive wear, cracks, or distortion. Unusual noises and poor performance are also indicators.

31. What torque specifications should I follow during assembly?

Always refer to the OEM manual for torque specifications to avoid damage and ensure proper assembly.

32. How can I extend the life of my Twin Disc 507?

Maintain oil levels.
Conduct regular inspections.
Replace worn components promptly.
Avoid excessive load stress.

33. What causes noise during operation?

Worn bearings.
Misalignment.
Insufficient oil.
Damaged gears.

34. How do I diagnose vibrations?

Check alignment.
Inspect for worn mounts.
Verify propeller balance.

35. How do I clean the transmission externally?

Use a mild degreaser and soft brush. Avoid high-pressure washing, which can damage seals.

36. Can I use synthetic oil?

Yes, provided it meets OEM specifications. Synthetic oil can offer improved temperature stability.

37. How do I store the Twin Disc 507 for long periods?

Drain oil.
Apply rust preventative to exposed metal.
Seal all openings.
Store in a dry, cool place.

38. How do I prevent rust during storage?

Coat exposed surfaces with anti-corrosion oil and keep the unit covered in a dry environment.

39. Can I install a Twin Disc 507 on any engine?

Compatibility depends on horsepower, torque capacity, and mounting configuration. Always confirm with specifications.

40. What maintenance is required after installation?

Check oil levels.
Inspect for leaks.
Perform a trial run to ensure proper function.

41. What if my Twin Disc 507 fails under load?

Check hydraulic pressure, clutch engagement, and inspect for internal component failure.

42. What are the safety precautions during repairs?

Disconnect power.
Use protective gear.
Follow torque specifications to avoid component failure.

43. Can I convert the rotation direction?

Some models allow for reverse rotation. Consult an expert to verify.

44. How often should I inspect the seals?

Inspect every 100-200 hours or during oil changes.

45. How do I dispose of old transmission oil?

Take it to a certified oil recycling center.

46. Why is my transmission hard to shift?

Possible causes include hydraulic issues, worn linkages, or low oil levels.

47. How do I adjust hydraulic pressure?

Consult the OEM manual for exact adjustment procedures.

48. What causes excessive heat in the Twin Disc 507?

Excessive heat can be caused by several factors, including:

Low Oil Levels: Insufficient oil reduces lubrication and causes friction.
Contaminated Oil: Dirt, water, or metal particles in the oil can increase internal friction.
Blocked Oil Cooler: If the oil cooler is clogged, it cannot dissipate heat effectively.
Overloading: Operating beyond the transmission’s capacity can cause overheating.
Poor Ventilation: Restricted airflow around the transmission can lead to heat buildup.

To resolve overheating, ensure the oil is clean and at the correct level, inspect and clean the oil cooler, and verify that the transmission isn’t overloaded.

49. What are the consequences of operating the Twin Disc 507 while overheating?

Operating under excessive heat can cause:

Premature Wear: Heat can damage clutch plates, seals, and bearings.
Oil Degradation: High temperatures break down oil, reducing its lubricating properties.
Seal Damage: Heat can harden and crack seals, leading to oil leaks.
Component Failure: Prolonged overheating can cause gear warping or cracking.

To avoid these issues, promptly address the root causes of overheating and conduct regular inspections.

50. What should I do if I notice abnormal noises or vibrations in my Twin Disc 507?

If you notice abnormal noises or vibrations, take these steps:

Shut Down the Engine: Stop operations to prevent further damage.
Inspect Alignment: Ensure that the engine and transmission are correctly aligned.
Check for Loose Components: Tighten any loose bolts, mounts, or connections.
Inspect Internal Components: Look for signs of wear or damage in the clutch plates, bearings, or gears.
Examine the Propeller Shaft: Vibrations can also come from imbalances in the shaft or propeller.
Seek Professional Help: If the cause isn’t clear, consult a marine transmission expert.

Ignoring these signs can lead to severe damage. Prompt inspection and repairs can save time and costs in the long run.

Disclaimer: For more technical details, consult the original Twin Disc 507 Service Manual or a certified marine mechanic.
