The fuel and air systems of the Detroit Diesel 6V71, 8V71, 12V71, and 16V71 engines are integral to their efficient operation and long-term reliability. This guide delves into the details of the fuel injection system, air intake design, maintenance protocols for injectors, governors, and blowers, as well as troubleshooting common issues such as fuel leaks and air intake restrictions. Engine owners and operators can rely on this information for optimal performance.

Overview of the Fuel Injection System in 6V71, 8V71, 12V71, and 16V71 Engines

Fuel Injector For Detroit Diesel V71 Engines
Fuel Injector For Detroit Diesel V71 Engines

The fuel injection system is a hallmark of the Detroit Diesel two-stroke engine design, ensuring precise fuel delivery and atomization for efficient combustion. Key components include:

1. Unit Injectors: The Heart of the Injection System

Injector Service Kit For Detroit Diesel V71 Engines
Injector Service Kit For Detroit Diesel V71 Engines

Each cylinder in the Detroit Diesel V71 engine series is equipped with a unit injector, a critical component responsible for both fuel pressurization and atomization. These injectors are integral to the engine’s ability to achieve efficient combustion.

  1. Dual Functionality
    • The unit injector performs two main tasks:
      • Pumping Fuel: It pressurizes the fuel to a precise level, ensuring it reaches the combustion chamber in an atomized form.
      • Atomizing Fuel: It sprays finely atomized fuel directly into the combustion chamber for efficient mixing with air, leading to complete combustion.
  2. Camshaft-Driven Precision
    • The injectors are driven by the engine’s camshaft, which synchronizes their operation with the engine’s firing cycle.
    • This ensures precise timing, optimizing the fuel spray pattern and maintaining consistent engine performance.
  3. Maintenance and Inspection
    • Periodic inspection of unit injectors is crucial to prevent issues such as clogging, wear, or improper atomization.
    • Common signs of injector wear include reduced power, increased fuel consumption, and excessive exhaust smoke.
    • Replacement injectors or rebuild kits are readily available for maintaining optimal performance.

2. Fuel Supply System: Supporting Continuous Operation

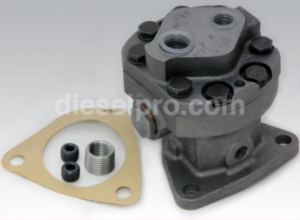

Fuel Pumps For Detroit Diesel V71 Engines
Fuel Pumps For Detroit Diesel V71 Engines

The fuel supply system works seamlessly with the unit injectors to deliver a steady and pressurized flow of diesel fuel to the engine while maintaining proper cooling and air purging.

In the video below tells you how to visually tell the difference between a left hand and a right hand fuel pump for Detroit Diesel engines.

  1. Gear-Driven Fuel Pump

    • A gear-driven fuel pump is responsible for drawing diesel fuel from the fuel tank. The pump ensures that the fuel is delivered under consistent pressure to the injectors for efficient operation.
    • The fuel pump incorporates a strainer to filter out contaminants and protect the system from debris or blockages.
  2. Excess Fuel Circulation
    • Any excess fuel, which serves to cool the injectors and purge air from the system, is returned to the fuel tank through a return line.
    • This recirculation not only reduces heat buildup in the injectors but also minimizes the risk of air pockets disrupting fuel delivery.
  3. Fuel Filters
    • Inline fuel filters ensure that clean, debris-free fuel reaches the injectors.
    • Regular replacement of these filters is critical to prevent clogging and maintain consistent fuel pressure.
  4. Fuel Lines and Connections
    • High-pressure fuel lines connect the pump to the injectors. These lines must be properly secured to prevent leaks or pressure drops.
    • Periodic inspection of lines for wear, cracks, or loose connections ensures the reliability of the fuel supply system.

3. Governors: Regulating Engine Speed and Load

Mechanical Governor On A Smaller Detroit Diesel (53 Series Engine)
Mechanical Governor On A Smaller Detroit Diesel (53 Series Engine)

Governors play a vital role in controlling the fuel injection system by regulating the amount of fuel delivered to the injectors based on engine speed and load demands.

  1. Mechanical and Hydraulic Governors
    • Mechanical Governors: These rely on centrifugal force and spring tension to adjust fuel delivery as engine speed changes.
    • Hydraulic Governors: These utilize oil pressure to regulate fuel flow, offering smoother and more precise control, particularly in variable-load applications.
  2. Maintaining Steady Performance
    • The governor ensures that the engine maintains a steady speed regardless of load changes, enhancing fuel efficiency and overall performance.
    • In situations where rapid load adjustments are required (such as marine or industrial applications), the governor’s ability to quickly modulate fuel delivery prevents stalling or surging.
  3. Periodic Calibration
    • Regular calibration of the governor is essential to maintain proper fuel delivery and engine speed control.
    • Calibration involves adjusting the governor linkage, tension springs, and fuel rack to ensure accurate response to throttle inputs and load variations.

Additional Key Features of the Fuel Injection System

  1. Two-Stroke Engine Design Integration
    • The Detroit Diesel V71 series features a two-stroke design, where the fuel injection system is closely integrated with the scavenging process. This ensures proper air-fuel mixing for each combustion cycle, despite the high engine speed and unique port timing.
  2. Injector Spray Patterns
    • The injectors in the V71 engines are designed to produce an optimized spray pattern tailored for each cylinder’s geometry. This helps achieve efficient combustion and uniform power output across all cylinders.
  3. Fuel Economy and Emissions
    • The precision of the unit injectors and governors contributes to improved fuel economy and reduced emissions, meeting the performance demands of heavy-duty applications while minimizing environmental impact.

Maintenance Tips for the Fuel Injection System

  1. Regular Inspection
    • Check the injectors, fuel pump, and fuel lines for leaks, wear, or damage. Address any issues promptly to avoid system-wide failures.
  2. Replace Filters
    • Replace fuel filters at recommended intervals to maintain fuel cleanliness and prevent injector clogging.
  3. Check Injector Timing
    • Ensure injector timing is correct during routine maintenance to optimize combustion and performance.
  4. Governor Calibration
    • Test and calibrate the governor periodically to maintain smooth and responsive engine operation under varying loads.
  5. Use Clean Fuel
    • Always use high-quality, clean diesel fuel to avoid contamination that could damage injectors and other components.



Air Intake System Design for 6V71, 8V71, 12V71, and 16V71 Engines

Blower For Detroit Diesel 6V71 & 12V71 Engines
Blower For Detroit Diesel 6V71 & 12V71 Engines

The air intake system in Detroit Diesel V71 engines plays a critical role in ensuring efficient combustion by delivering fresh air and effectively expelling exhaust gases during the scavenging process. The design is optimized for the two-stroke operation, integrating key components to maintain proper airflow and maximize engine performance.

1. Roots-Type Blower: The Core of the Intake System

https://dieselpro.com/detroit-diesel/blowers

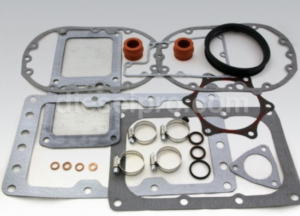

Blower Installation Kit For Detroit Diesel 6V71 Engines

The Roots-type blower is an essential component of the air intake system, responsible for forcing fresh air into the cylinders during the intake phase.

  • Functionality
    • The blower operates as a positive-displacement air pump, delivering a steady stream of air under pressure.
    • Driven by the engine’s gear train, the blower synchronizes with the engine’s two-stroke cycle, ensuring consistent air delivery with every rotation.
  • Uniflow Scavenging System Integration
    • The blower works in harmony with the uniflow scavenging system, which uses intake ports in the cylinder walls and exhaust valves at the top of the cylinder.
    • As fresh air is forced in by the blower, exhaust gases are efficiently expelled through the exhaust valves, ensuring a clean air charge for combustion.
  • Maintenance and Wear Considerations
    • Regularly inspect the blower lobes and seals for wear or damage, as air leaks can compromise engine efficiency.
    • Keep the blower drive gears properly lubricated to prevent premature failure.

2. Airbox: The Distribution Chamber

The airbox serves as a critical intermediate chamber that channels air from the blower to the cylinder ports.

  • Air Distribution
    • The airbox evenly distributes pressurized air from the blower to all cylinders through intake ports. This ensures uniform air delivery, which is vital for balanced engine performance.
  • Drainage System
    • Drain Tubes: The airbox is equipped with drain tubes to remove condensation, oil residue, and debris that may accumulate. This prevents contamination of the air charge and protects internal components.
    • Check Valves: These valves allow debris and moisture to drain out during low-pressure conditions while preventing air loss under normal operating pressure.
  • Inspection and Cleaning
    • Periodically clean the airbox to prevent debris buildup that could restrict airflow or contaminate the cylinders.
    • Inspect the drain tubes and check valves for blockages to ensure proper functionality.

3. Air Filters: Protecting the System

The air filters in the air intake system serve to protect the engine from debris, dust, and other contaminants that could damage components or reduce efficiency.

  • Filter Efficiency
    • High-efficiency air filters are designed to trap fine particles without restricting airflow.
    • Proper filtration helps prevent damage to the blower, airbox, and cylinders, ensuring long-term reliability.
  • Maintenance Schedule
    • Replace air filters at regular intervals or as specified in the engine maintenance schedule.
    • Inspect filters for signs of clogging or damage, especially in dusty or harsh operating environments, as restricted airflow can reduce engine power and efficiency.
  • Signs of Dirty Filters
    • Reduced engine performance or increased exhaust smoke may indicate clogged filters that need immediate attention.

4. Optional Turbocharging: Enhanced Air Pressure

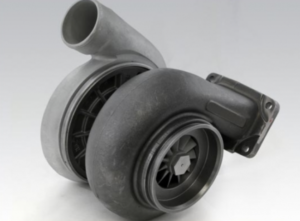

Turbo For Detroit Diesel 8V71 and 16V71 Turbo Intercooled Engines
Turbo For Detroit Diesel 8V71 and 16V71 Turbo Intercooled Engines

Turbocharging is an optional feature available for certain variants of the 8V71, 12V71, and 16V71 engines. It significantly improves engine performance and efficiency by increasing air pressure before it enters the blower.

  • How It Works
    • The turbocharger uses exhaust gas energy to drive a turbine, which compresses intake air before delivering it to the blower.
    • This pre-compression increases the volume and pressure of air entering the cylinders, allowing for better combustion and increased power output.
  • Performance Benefits
    • Turbocharging boosts engine horsepower and torque by delivering more air for combustion, allowing the engine to burn more fuel efficiently.
    • Enhanced scavenging with higher air pressure ensures more complete expulsion of exhaust gases, reducing emissions.
  • Turbocharger Maintenance
    • Regularly inspect the turbocharger for wear, oil leaks, or damage to the turbine and compressor blades.
    • Ensure that the oil supply to the turbocharger is clean and properly filtered to avoid bearing failure.

Key Benefits of the Air Intake System

  1. Efficient Scavenging
    • The integration of the blower, airbox, and uniflow scavenging system ensures that each cylinder receives a fresh air charge and that exhaust gases are effectively expelled.
  2. Improved Performance
    • The system supports optimal combustion, which translates to better fuel efficiency, higher power output, and reduced emissions.
  3. System Longevity
    • High-quality air filters, proper drainage, and regular maintenance of components like the blower and turbocharger help prolong the life of the engine.

Maintenance Tips for the Air Intake System

  1. Inspect Regularly
    • Perform visual inspections of the blower, airbox, and air filters during routine engine maintenance.
    • Check for leaks, blockages, or worn components that may affect airflow.
  2. Replace Worn Parts
    • Replace worn seals, gaskets, and filters promptly to maintain system efficiency.
  3. Clean Components
    • Periodically clean the airbox, blower inlet, and filter housing to prevent debris buildup.
  4. Monitor Performance
    • Pay attention to signs of restricted airflow, such as reduced power, excessive exhaust smoke, or unusual noises from the blower or turbocharger.

      Maintenance Guidelines for Injectors, Governors, and Blowers in 6V71, 8V71, 12V71, and 16V71 Engines

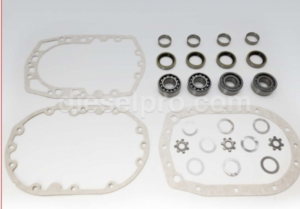

    • Bllower Repair Kit For V71 Engines
      Blower Repair Kit For V71 Engines

    • Proper maintenance of the fuel and air system components is essential for maintaining consistent engine performance, reliability, and longevity. Below is a detailed guide to maintaining injectors, governors, blowers, and air filters in Detroit Diesel V71 engines.

      1. Injectors

      1. Regular Inspection
        • Inspect injectors during routine maintenance for signs of wear, corrosion, or damage.
        • Look for carbon deposits on the spray tip, which can disrupt fuel atomization and reduce combustion efficiency.
      2. Cleaning and Maintenance
        • If carbon buildup is minimal, clean the injectors using a suitable solvent and brush. Avoid damaging the spray holes during cleaning.
        • Test injector spray patterns to ensure they deliver a fine, even mist. Poor spray patterns indicate clogging or internal wear.
      3. Replacement Guidelines
        • Replace injectors showing signs of clogging, excessive wear, or poor spray performance.
        • Always use high-quality replacement injectors to maintain fuel delivery precision and engine reliability.
      4. Timing Verification

      2. Governors

      1. Smooth Operation
        • During inspections, manually operate the governor linkage to verify smooth movement without sticking or excessive play.
        • Check for proper engagement with the throttle and fuel control mechanisms.
      2. Calibration
        • Regularly calibrate the governor to maintain accurate engine speed control and prevent overspeed or sluggish performance.
        • Use a tachometer to ensure the governor responds precisely to load changes without hunting or hesitation.
      3. Inspection for Wear
        • Examine the governor housing for wear or leaks, particularly in hydraulic governors.
        • Replace worn components, such as springs or diaphragms, to maintain proper fuel delivery regulation.
      4. Safety Checks
        • Test the overspeed trip mechanism periodically to ensure it activates at the correct RPM, preventing potential engine damage.

      3. Blowers

      Rotor Inspection

      • Check blower rotors for signs of wear, such as scoring, pitting, or damage to the lobe surfaces. Worn rotors can reduce airflow efficiency and scavenging performance.
      • Verify rotor-to-housing and rotor-to-rotor clearances align with manufacturer specifications. Excessive clearance can lead to air leakage and reduced performance.
        1. Drive System Maintenance
          • Lubricate the blower drive system using the manufacturer-recommended lubricants to prevent wear and overheating.
          • Inspect drive gears for proper alignment and signs of wear, replacing damaged gears to avoid misalignment.
        2. Sealing and Gaskets
          • Inspect all blower seals and gaskets for leaks. Replace any seals that show signs of oil leakage or wear to maintain proper air pressure within the airbox.
        3. Performance Testing

        4. Air Filters

        1. Filter Cleaning and Replacement
          • In normal operating conditions, inspect air filters during each routine maintenance cycle and replace them as necessary.
          • For engines operating in dusty or harsh environments, clean or replace filters more frequently to prevent clogging and restricted airflow.
        2. Check Filter Housing
          • Inspect filter housings for proper sealing to prevent unfiltered air from entering the system. Tighten loose clamps and replace damaged gaskets.
        3. Indicators of Restricted Airflow
          • Watch for signs of restricted airflow, such as reduced power, increased exhaust smoke, or higher fuel consumption, which could indicate clogged air filters.

        Troubleshooting Common Issues in Fuel and Air Systems

        Effective troubleshooting of fuel and air systems minimizes downtime and ensures the legendary reliability of Detroit Diesel V71 engines. Below are detailed solutions for common issues.

        1. Fuel Leaks

        • Symptoms: Visible diesel leaks, reduced fuel efficiency, difficulty starting, and increased exhaust smoke.
        • Causes:
          • Worn or damaged injector seals.
          • Cracked or corroded fuel lines.
          • Loose fittings or connections.
        • Solutions:
          • Replace faulty injector seals and gaskets immediately.
          • Tighten all fuel line connections to manufacturer-specified torque values.
          • Inspect and replace fuel lines showing signs of wear, cracking, or corrosion.

        2. Air Intake Restrictions

        • Symptoms: Loss of power, excessive black smoke, increased fuel consumption, and higher operating temperatures.
        • Causes:
          • Blocked or clogged air filters.
          • Clogged airbox drain tubes.
          • Malfunctioning or damaged blower.
        • Solutions:
          • Clean or replace air filters and ensure proper sealing of the filter housing.
          • Inspect and clear airbox drain tubes of obstructions or moisture.
          • Check blower operation, rotor clearances, and drive system for damage or wear.

        3. Injector Malfunctions

        • Symptoms: Misfiring cylinders, excessive smoke (white or black), rough idling, or reduced power output.
        • Causes:
          • Clogged or worn injector nozzles.
          • Incorrect injector timing.
        • Solutions:
          • Clean or replace clogged injectors to restore proper spray patterns.
          • Verify injector timing and adjust as needed using the manufacturer’s specifications.

        Enhancing the Performance of Fuel and Air Systems

        Maximize the efficiency, reliability, and longevity of Detroit Diesel V71 engines with these advanced practices:

        1. Fuel Quality and Lubricants

        • Use clean, low-sulfur diesel fuel to reduce injector wear and minimize carbon buildup.
        • Regularly inspect and replace fuel filters to maintain fuel cleanliness.
        • Use high-quality lubricants for the blower drive system and other components to ensure smooth operation.

        2. Routine Inspections



        • Conduct regular inspections of fuel lines, injectors, governors, and air filters to identify potential issues early.
        • Perform pressure testing on injectors and blower systems to verify their integrity and functionality.

        3. Scavenging Optimization

        • Ensure that the blower and airbox maintain effective scavenging by keeping rotor clearances within specifications and cleaning airbox drain tubes.
        • Inspect exhaust valves and ports to ensure they remain free of carbon buildup, which could impair exhaust flow.
Please follow and like us:
error
fb-share-icon
Tweet
fb-share-icon
RSS
Follow by Email
Facebook
Twitter

Leave a Reply

Your email address will not be published. Required fields are marked *

(Wish we didn't have to do this, but there are too many bots on the internet)
