The Twin Disc MG509 marine gear is a premium transmission system designed for superior performance in a wide range of marine applications. Renowned for its durability, reliability, and efficient power transfer, the MG509 is widely used in commercial, industrial, and recreational vessels. Understanding its technical specifications, operating capacities, and performance parameters is essential for ensuring optimal operation, maintenance, and longevity.

---

This guide provides an in-depth overview of the key specifications of the Twin Disc MG509, helping marine operators and mechanics maximize the efficiency and lifespan of their equipment.

---

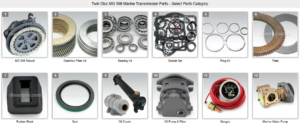

Parts Catalog for Twin Disc MG509 Marine Transmissions
Rebuilt Twin Disc MG509 Marine Transmissions
Bearings For Twin Disc MG509 Marine Transmissions
Plate Kit For Twin Disc MG509 Marine Transmission
Gasket Kits For Twin Disc MG509 Marine Transmission

---

Key Technical Specifications of Twin Disc MG509

---

The MG509 is a heavy-duty marine transmission system, designed to handle high-torque applications with ease. Its engineering excellence ensures smooth operation under challenging conditions, offering a combination of strength, efficiency, and low maintenance. Here are the key technical specifications that define the MG509’s design and functionality.

---

1. Transmission Model Identification

---

• Model Number: Twin Disc MG509
• Series: Heavy-Duty Marine Gear
• Application: Commercial, industrial, and recreational vessels

---

2. Power and Torque Specifications

---

• Power Capacity: The MG509 is designed to handle a broad range of horsepower, typically ranging from 300 to 800 horsepower, depending on the application and configuration.
• Torque Capacity: The transmission can manage high torque loads, ensuring efficient power transfer without slippage or performance degradation.
• Input Speed: Typically operates with an input speed ranging between 1800 to 2300 RPM, although specific configurations may accommodate variations.

---

3. Gear Ratio Options

---

• Standard Gear Ratios: Available in multiple gear ratio configurations, such as 2.0:1, 2.5:1, and 3.0:1, providing flexibility based on vessel requirements.
• Custom Ratios: Custom gear ratios are available for specialized applications, ensuring optimal propulsion efficiency.

---

4. Weight and Dimensions

---

• Weight: Approximately 800 to 1,200 lbs (363 to 544 kg), depending on the configuration.
• Length: Varies by setup but generally falls between 24 to 36 inches.
• Width: Around 20 to 25 inches.
• Height: Typically between 22 to 28 inches.

---

5. Mounting and Installation

---

• Mounting Style: Typically configured for SAE housing mounts but adaptable to custom setups.
• Alignment Tolerance: Requires precise alignment with a tolerance of less than 0.002 inches to ensure smooth operation.

---

6. Lubrication System

---

• Oil Capacity: Approximately 3 to 5 gallons (11 to 19 liters), depending on specific model and application.
• Lubricant Type: Marine-grade synthetic oils are recommended, with specifications such as SAE 30 or 40 based on the operating environment.
• Cooling Type: Integrated oil cooling system, often connected to the vessel’s freshwater cooling system.

---

7. Material Composition

---

• Primary Materials: High-strength alloy steel for gears and shafts to ensure durability.
• Corrosion Resistance: Components are treated with anti-corrosion coatings to withstand harsh marine environments.
• Seals and Gaskets: Manufactured from high-grade, oil-resistant materials to prevent leaks and contamination.

---

8. Control System

---

• Hydraulic Actuation: Equipped with a hydraulic control system for smooth gear engagement.
• Manual Override: Features a manual override system to allow for manual control in emergency situations.

---

9. Safety Features

---

• Overheat Sensors: Integrated to monitor temperature and prevent overheating.
• Vibration Dampening: Designed with vibration dampening mounts to reduce operational stress and noise.

---

10. Certification

---

Compliant with international marine certification standards, including ISO and ABS for quality assurance.

---

Operating Capacities and Tolerances

---

Understanding the MG509’s operating capacities and tolerances is essential for ensuring optimal performance and minimizing the risk of mechanical failure. These specifications guide operational limits, helping operators to maintain the system within safe boundaries.

---

1. Power and Load Capacities

---

• Maximum Horsepower: Capable of handling up to 800 horsepower in high-load conditions.
• Continuous Load Capacity: Rated for continuous operation under heavy loads, making it suitable for long-duration voyages and commercial applications.
• Maximum Torque Tolerance: Typically rated to handle up to 2,500 Nm of torque, with variations based on configuration.

---

2. Speed Tolerances

---

• Maximum Input Speed: Up to 2300 RPM, ensuring adaptability for high-performance marine engines.
• Minimum Input Speed: Recommended not to operate below 1800 RPM for optimal performance.
• Maximum Output Speed: Dependent on gear ratio but generally capable of propelling vessels to speeds exceeding 25 knots.

---

3. Temperature and Cooling Tolerances

---

• Operating Temperature Range: Between 120°F to 180°F (49°C to 82°C). Operating outside this range can cause oil breakdown and mechanical wear.
• Overheat Threshold: Equipped with sensors that trigger alerts if temperatures exceed safe limits, typically around 200°F (93°C).
• Cooling Flow Rate: Designed to integrate with a vessel’s freshwater cooling system, requiring a minimum flow rate to maintain temperature stability.

---

4. Alignment and Installation Tolerances

---

• Axial Alignment Tolerance: Should not exceed 0.002 inches for optimal operation.
• Angular Alignment Tolerance: Must be within 0.003 inches to prevent vibration and component wear.
• Mounting Torque: Bolts should be torqued according to specifications, generally between 100 to 150 ft-lbs.

---

5. Lubrication Tolerances

---

• Oil Pressure Range: Between 30 to 60 psi during normal operation.
• Oil Temperature Range: Should be maintained between 140°F to 180°F (60°C to 82°C).
• Contamination Limits: Oil should be free from contaminants, with metal particle presence limited to under 20 ppm.

---

Overview of Performance Parameters

---

The Twin Disc MG509 is engineered to deliver high-performance results while ensuring efficiency and durability. Understanding its performance parameters is crucial for optimizing operation and maintaining longevity.

---

1. Efficiency Ratings

---

• Transmission Efficiency: Typically rated at over 95%, ensuring minimal power loss during transmission.
• Fuel Efficiency Impact: Properly tuned and maintained, the MG509 contributes to improved fuel efficiency by minimizing drag and optimizing power transfer.

---

2. Vibration and Noise Levels

---

• Vibration Level: Designed with advanced damping systems to maintain low vibration, reducing wear on the vessel’s structure.
• Noise Level: Engineered to operate at noise levels below 85 dB, ensuring comfortable conditions for crew members.

---

3. Gear Engagement

---

• Engagement Time: Hydraulic actuation ensures rapid gear engagement, typically within 1 to 2 seconds.
• Smoothness: Designed for seamless gear transitions, reducing shock loads and enhancing vessel control.

---

4. Durability and Lifespan

---

• Expected Lifespan: With proper maintenance, the MG509 can operate efficiently for over 20,000 operational hours.
• Corrosion Resistance: Marine-grade materials and coatings ensure long-term durability even in saltwater environments.

---

5. Operational Load Capacity

---

• Continuous Duty Rating: Capable of operating under continuous heavy load conditions without performance degradation.
• Shock Load Resistance: Designed to absorb shock loads up to 125% of its rated torque without sustaining damage.

---

Summary of Key Advantages

---

The Twin Disc MG509 marine gear stands out for its:

---

• High Performance: Capable of handling high torque and horsepower with minimal power loss.
• Durability: Built with corrosion-resistant materials designed to withstand harsh marine environments.
• Smooth Operation: Features hydraulic controls for smooth gear engagement and quiet performance.
• Low Maintenance Needs: Designed for ease of maintenance with accessible service points and robust components.
• Versatile Configurations: Offers multiple gear ratios and mounting configurations to suit diverse vessel requirements.

---

Conclusion

---

The Twin Disc MG509 marine gear is a testament to advanced engineering and precision manufacturing. Its specifications, operating capacities, and performance parameters ensure it delivers reliability and efficiency across various marine applications. By understanding these specifications and adhering to recommended maintenance practices, operators can maximize the lifespan and performance of the MG509, ensuring smooth sailing for years to come.

---

Disclaimer: For more detailed technical information and specific servicing procedures, always refer to the official Twin Disc MG509 service manual.

---
