Overview of the MG520 and Its Applications in Marine Vessels

The Twin Disc MG520 Marine Gear is a rugged and highly reliable marine transmission system engineered specifically for heavy-duty commercial, military, and industrial marine propulsion applications. Known for its durability under harsh marine conditions, the MG520 series is trusted by vessel operators worldwide who require dependable power transmission in demanding maritime environments.

The MG520 is often found aboard workboats, fishing vessels, tugboats, ferries, patrol boats, offshore support vessels, and even some larger yachts. These applications demand uninterrupted performance, high torque capacity, and long service intervals — all of which the MG520 delivers with precision.

Engineered by Twin Disc Incorporated, a pioneer in power transmission technology, the MG520 offers smooth and reliable engagement of propulsion systems. It’s designed to transmit power from the engine to the propeller shaft with minimal loss, ensuring optimum fuel efficiency and performance across a wide range of operational conditions.

Whether you’re navigating the open sea or maneuvering in tight harbors, the MG520 provides the seamless shift and torque-handling capabilities necessary for marine operators to maintain control and maximize uptime. Its adaptability allows it to be used in both single and twin-engine configurations, with multiple gear ratios and optional PTOs (Power Take-Offs) for added utility.

Parts Catalog for Twin Disc MG520 Marine Transmissions
Rebuilt Twin Disc MG520 Marine Transmissions

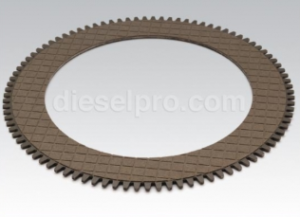

Plate Kit For Twin Disc MG520 Marine Transmission
Gasket Kits For Twin Disc MG520 Marine Transmission

Key Features and Technical Capabilities For Twin Disc MG520 Marine Gear

The MG520 is a mechanical marine transmission designed with a variety of features that set it apart from more basic gearboxes. Below are the major technical highlights that make it one of the top choices in its class:

1. Heavy-Duty Construction

The MG520’s cast-iron housing is precision-machined and built for strength, reducing vibration and supporting large torque loads. This rugged design provides structural integrity even under continuous heavy-duty use, common in commercial and military settings.

2. High Torque Capacity

Designed to handle high input horsepower from large diesel engines, the MG520 is capable of transmitting large amounts of torque without overheating or component fatigue. Depending on configuration, this gear can support input power ratings over 1,000 HP, ensuring it’s suitable for demanding applications like towing, dredging, or high-speed ferries.

3. Hydraulic Clutch Actuation

Equipped with a hydraulically-actuated multi-disc clutch system, the MG520 ensures smooth gear engagement and disengagement. This allows for quick, shock-free shifting that preserves driveline integrity and offers operator comfort.

4. Multiple Gear Ratios

The MG520 is available in a range of gear ratios, allowing operators to select the best configuration for their specific vessel design and propulsion requirements. Whether prioritizing top-end speed or low-end torque, the MG520 can be configured to meet performance needs.

5. Output Rotation Options

This model supports both clockwise and counterclockwise output rotation, depending on the configuration. This feature allows for optimal compatibility with a wide range of propeller shaft alignments and hull designs.

6. Power Take-Off (PTO) Capabilities

The MG520 can be equipped with optional mechanical or hydraulic PTOs, allowing operators to run auxiliary equipment such as winches, pumps, or generators directly from the transmission. This adds operational flexibility for vessels engaged in fishing, dredging, firefighting, or offshore support.

7. Oil Cooling and Lubrication System

Efficient oil circulation is critical for the longevity of any marine gear. The MG520 features an internal oil pump and cooler ports, designed to keep the transmission operating within safe temperature limits during extended use. Proper oil cooling prevents premature wear and preserves clutch pack integrity.

8. Optional EC300 Electronic Control Compatibility

The MG520 is fully compatible with the Twin Disc EC300 marine electronic control system, providing smooth shift management, throttle control, and integrated diagnostic capabilities. With EC300, operators can monitor system parameters and detect early signs of failure, leading to reduced downtime and repair costs.

Importance of Regular Maintenance For Twin Disc MG520 Marine Gear

The performance and longevity of the MG520 marine transmission depend largely on adherence to a well-structured maintenance schedule. As with any critical piece of mechanical equipment, neglecting service intervals can lead to catastrophic failures, costly repairs, and unexpected downtime—especially dangerous in marine environments where reliability is non-negotiable.

Why Maintenance Matters

1. Prevents Major Failures
   Routine inspections and timely component replacements help prevent major internal failures like clutch burnouts, bearing seizures, or shaft misalignments.

   ---

2. Improves Fuel Efficiency
   Proper lubrication and optimal gear engagement reduce parasitic losses, improving fuel economy and lowering overall operating costs.

   ---

3. Extends Equipment Life
   Replacing consumables like oil, filters, seals, and clutch discs at recommended intervals significantly extends the service life of the gear.

   ---

4. Ensures Operator Safety
   A malfunctioning transmission can lead to sudden loss of propulsion or steering control—both of which are serious safety hazards in confined waterways or during docking maneuvers.

   ---

5. Minimizes Downtime
   Unscheduled repairs often take longer and cost more than planned maintenance, especially if you’re offshore or in a port without easy access to parts and technicians.

   ---

6. Protects Warranties and Investment
   Adhering to maintenance schedules ensures that warranties remain valid and that you’re getting maximum value from your investment.

   ---

Key Maintenance Activities to Prioritize

• Oil and Filter Changes: Regularly changing the transmission oil and oil filter is critical for cooling and lubrication. Use only the recommended oil type and change it according to service hours or operational load.


  ---

• Seal and Gasket Inspection: Marine environments are harsh, and seals are prone to wear. A leaking seal can lead to rapid oil loss and eventual gear failure.


  ---

• Clutch Wear Checks: Over time, friction plates can wear down. Measuring thickness and checking for signs of glazing or burn marks is essential.


  ---

• Shaft and Bearing Condition: Ensure there is no excessive endplay or radial movement. Bearings must be smooth and quiet during rotation.


  ---

• Bolt Torque Verification: Vibration can loosen bolts over time. Regularly checking mounting and housing bolts helps avoid misalignments and casing cracks.


  ---

• System Testing: Perform regular functional testing under various RPMs and load conditions to verify smooth engagement and correct output rotation.


  ---

Maintenance Schedule Overview (General Reference)

Note: Always refer to the OEM service manual for the exact maintenance intervals based on your specific gear ratio and operational conditions.

Disclaimer: Refer to the OEM Service Manual for Detailed Procedures and Torque Specifications For MG520 Marine Gear

This guide is intended to serve as a practical, educational overview for operators, mechanics, and vessel owners who work with the Twin Disc MG520 Marine Gear. While we’ve aimed to make this resource as complete and helpful as possible, some details—especially those related to internal tolerances, torque specifications, and component clearances—require reference to the official OEM service manual.

The MG520 Service Manual (Document No. 1015775) provides essential information such as:

• Exact disassembly and reassembly steps
• Schematic diagrams and exploded views
• Hydraulic pressure testing parameters
• Torque specs for all internal fasteners
• Clutch pack clearances and measurement guidelines
• Troubleshooting flowcharts and decision trees


  ---



Failure to follow OEM guidelines when servicing the transmission may lead to improper installation, reduced performance, or even equipment damage.

If you’re planning a rebuild or internal overhaul, do not proceed without the official Twin Disc MG520 service manual. You can obtain this directly through Twin Disc Inc. or authorized service partners.

Conclusion: Laying the Foundation for Successful MG520 Service

The Twin Disc MG520 is a testament to marine engineering excellence, offering unmatched durability, performance, and adaptability for high-torque marine applications. Understanding its key features and the importance of a regular maintenance routine is essential for ensuring long-term success on the water.

Whether you’re a seasoned marine mechanic or a vessel owner looking to take a more hands-on approach, this practical guide lays the groundwork for safe and effective servicing. Keep in mind that proactive care is always more affordable than reactive repair, especially when operating offshore or on tight schedules.

Use this guide as your trusted starting point—and turn to Diesel Pro Power for premium aftermarket Twin Disc MG520 parts, rebuild kits, and expert technical support. Together, we’ll help keep your vessel running at peak performance.
