Proper maintenance is essential for ensuring the longevity, efficiency, and safe operation of the Twin Disc MG506 Marine Gear. As a critical component in marine propulsion systems, this transmission requires consistent attention to avoid unexpected breakdowns, minimize wear, and maximize performance. This guide provides a comprehensive approach to maintaining the MG506, covering regular schedules, fluid management, component inspections, troubleshooting, and long-term storage practices.


Regular Maintenance Schedule





Establishing and adhering to a routine maintenance schedule is the foundation of proper care for the Twin Disc MG506. Routine inspections and services help detect and resolve minor issues before they develop into major problems.


Parts Catalog for Twin Disc MG506 Marine Transmissions
Rebuilt Twin Disc MG506 Marine Transmissions
Bearings For Twin Disc MG506 Marine Transmissions
Plate Kit For Twin Disc MG506 Marine Transmission
Gasket Kits For Twin Disc MG506 Marine Transmission


Daily Maintenance (Pre-Operation Checks)

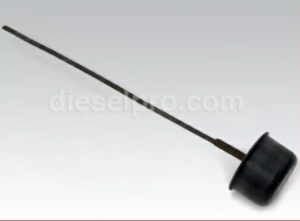

Dipstick for Twin Disc MG506 marine transmission
Dipstick for Twin Disc MG506 marine transmission

Perform these checks before starting the engine each day to ensure the MG506 is ready for operation:


  • Fluid Level Check:

    • Inspect the transmission fluid level using the dipstick or sight gauge. The fluid should be at the manufacturer’s recommended level.
    • Look for signs of contamination such as cloudiness, burnt smell, or debris.

  • Visual Inspection for Leaks:

    • Check the area beneath the transmission for signs of fluid leaks.
    • Inspect all hoses, seals, and connections for dripping or pooling fluid.

  • Check for Unusual Noises or Vibrations:

    • Listen for any abnormal sounds during idle, which could indicate internal issues.

  • Inspect Mounting Bolts and Connections:

    • Ensure all mounting bolts and brackets are secure.

Weekly Maintenance

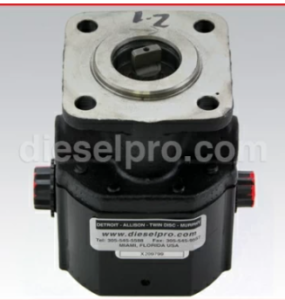

Oil pump for Twin Disc MG506 transmission.
Oil pump for Twin Disc MG506 transmission.

Weekly checks focus on ensuring fluid quality and the general condition of the system.


  • Inspect Transmission Fluid Quality:

    • Look for discoloration or contamination that may indicate overheating or internal wear.
    • Top off fluid if necessary.

  • Examine External Components:







    • Check for signs of corrosion or wear on external surfaces.
    • Ensure that cooling systems (if applicable) are free from obstructions.

  • Inspect Control Linkages:

    • Confirm that shifting mechanisms are smooth and responsive.
    • Apply lubricant to prevent seizing.

Monthly Maintenance


Mechanical Marine Oil Pressure Gauge 400 PSI
Mechanical Marine Oil Pressure Gauge 400 PSI

More in-depth inspections should be performed monthly, especially for vessels used frequently or under heavy load.


  • Check Fluid Pressure and Temperature:

    • Use gauges to ensure that pressure and temperature are within the manufacturer’s specifications.
    • Look for fluctuations that could indicate blockages or issues with the cooling system.

  • Inspect Mounting and Alignment:

    • Verify that the transmission remains properly aligned with the engine and propeller shaft.
    • Look for any signs of misalignment such as vibrations or unusual noises.

  • Clean External Components:

    • Remove any debris, dirt, or salt residue that could cause corrosion.

Quarterly Maintenance

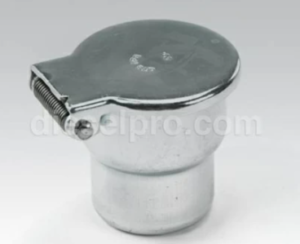

Oil Filler & Breather for Twin Disc MG506 Marine transmission.Old Style
Oil Filler & Breather for Twin Disc MG506 Marine transmission.Old Style

Quarterly maintenance includes more thorough inspections and adjustments.


  • Drain and Replace Fluid:

    • Completely drain the transmission fluid and replace it with fresh, manufacturer-approved fluid.

  • Replace Filters (if applicable):

    • Change any external filters to ensure clean fluid circulation.

  • Inspect Internal Components:

    • If possible, inspect internal gears, clutches, and bearings for wear.

  • Tighten All Fasteners:

    • Check and tighten all bolts, nuts, and fasteners to prevent loosening due to vibrations.

Annual Maintenance

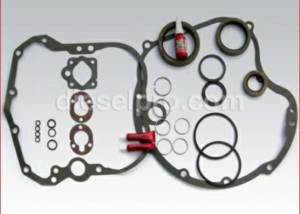

Gasket and seal kit for Twin Disc marine transmission MG506.
Gasket and seal kit for Twin Disc marine transmission MG506.

Annual maintenance should be comprehensive and may involve professional servicing.


  • Full Fluid System Flush:

    • Conduct a complete flush of the fluid system to remove accumulated sludge or contaminants.

  • Inspect and Replace Seals:

    • Replace seals and gaskets that show signs of wear or leakage.

  • Inspect Clutches and Gears:

    • Conduct a detailed inspection of clutches, gears, and other critical components. Replace parts showing significant wear.

  • Check Alignment:

    • Perform a full alignment check and adjust as necessary to maintain optimal operation.

Lubrication and Fluid Change Intervals

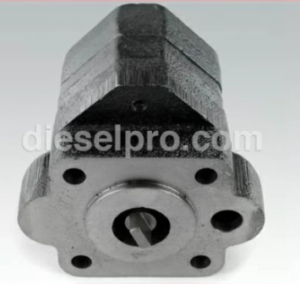

Oil pump for Twin Disc marine transmission MG506
Oil pump for Twin Disc marine transmission MG506

The fluid in the MG506 serves multiple purposes—lubrication, cooling, and hydraulic engagement. Proper fluid management is essential for smooth operation.


Recommended Fluid Type


  • Fluid Type: Use a high-quality, marine-grade hydraulic transmission fluid.
  • Viscosity Grade: SAE 30 or 40, depending on temperature and engine type.
  • API Classification: CF or higher.

Fluid Change Intervals


  • Initial Change: After the first 50–100 hours of operation to remove contaminants from the break-in process.
  • Routine Change: Every 250–300 hours of operation or at least every 6 months.
  • Heavy-Duty Applications: Change fluids every 150–200 hours if operating under heavy loads or extreme conditions.

How to Perform a Fluid Change


  1. Warm the Transmission: Run the engine for a few minutes to warm the fluid. This reduces viscosity and aids in a complete drain.

  2. Shut Down the Engine: Turn off the engine and allow the transmission to cool slightly.

  3. Drain the Fluid:

    • Remove the drain plug and allow fluid to drain completely into a suitable container.
    • Inspect the drained fluid for debris or discoloration, which could indicate internal wear.

  4. Replace the Filter:
    • If applicable, replace the filter during the fluid change.

  5. Refill with New Fluid:
    • Add new, manufacturer-approved fluid slowly to avoid air pockets.
    • Check fluid level using the dipstick and adjust as needed.

  6. Inspect for Leaks:
    • Run the engine briefly to circulate fluid and check for any leaks.

Inspection of Key Components (Filters, Seals, Clutches)


Routine inspection of the MG506’s key components helps ensure reliability and identify potential issues early.


1. Filters


Oil strainer for Twin Disc MG506 marine gear
Oil strainer for Twin Disc MG506 marine gear

  • Inspection Frequency: Check the filter with every fluid change.
  • Signs of Failure: Reduced fluid pressure, contamination in the fluid, or blockage.
  • Replacement Guidelines: Replace filters every 6 months or during scheduled fluid changes.

2. Seals


Gasket and seal kit for Twin Disc marine transmission MG506.
Gasket and seal kit for Twin Disc marine transmission MG506.

  • Inspection Frequency: Monthly visual inspection.
  • Signs of Wear: Oil leaks, cracks, or visible wear.
  • Replacement Guidelines: Replace seals annually or if leakage is detected.

3. Clutches

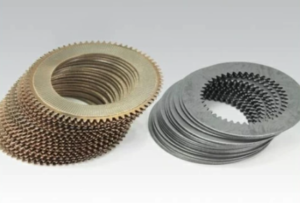

Overhaul plate kit for Twin Disc marine transmission MG506
Overhaul plate kit for Twin Disc marine transmission MG506

  • Inspection Frequency: During annual maintenance or if slippage occurs.
  • Signs of Wear: Difficulty shifting, slippage under load, or abnormal noises.
  • Replacement Guidelines: Replace if clutches are worn beyond tolerances or show signs of burning.

Troubleshooting Common Issues (Noise, Vibration, Slippage)



Recognizing and addressing common issues promptly can prevent severe damage and costly repairs.


1. Noise


  • Cause: Misalignment, worn bearings, or insufficient lubrication.
  • Solution:
    • Inspect and correct alignment.
    • Check fluid levels and add fluid if necessary.
    • Replace worn components.

2. Vibration


  • Cause: Shaft misalignment, loose mounting bolts, or worn dampening mounts.
  • Solution:
    • Realign the engine and transmission.
    • Tighten all bolts to specified torque levels.
    • Replace worn mounts.

3. Slippage


  • Cause: Low fluid levels, worn clutches, or incorrect shifting techniques.
  • Solution:
    • Top off fluid and inspect for leaks.
    • Replace worn clutches.
    • Ensure shifting is performed at idle speed.

How to Address Minor Leaks or Adjustments


1. Minor Leaks


  • Inspect Seals and Connections: Identify the source of the leak.
  • Tighten Connections: Use the proper torque specifications.
  • Replace Seals if Necessary: Use high-quality, marine-grade replacements.

2. Adjustments


  • Clutch Adjustment: Adjust the clutch engagement mechanism if slipping occurs.
  • Alignment Adjustment: Recheck and adjust alignment during routine inspections.
  • Pressure Adjustment: Verify hydraulic pressure levels and adjust if necessary.

Long-Term Storage Guidelines


Proper storage of the MG506 is essential for preventing corrosion and degradation during inactivity.


1. Drain Fluid


  • Remove all transmission fluid to prevent condensation and internal corrosion.

2. Clean and Dry Components


  • Clean the exterior and interior components thoroughly.
  • Allow all components to dry before storage.

3. Apply Protective Coatings


  • Use corrosion inhibitors on exposed metal surfaces.
  • Apply oil to internal components to prevent rusting.

4. Seal the System


  • Close all openings with protective covers or plugs to prevent moisture ingress.

5. Store in a Controlled Environment


  • Store the transmission in a dry, climate-controlled area.
  • Avoid exposure to direct sunlight, moisture, or extreme temperatures.

By adhering to this detailed maintenance guide, operators can ensure that the Twin Disc MG506 Marine Gear continues to operate efficiently and reliably throughout its service life. Regular inspections, fluid management, and careful monitoring will prevent major issues, reduce downtime, and extend the overall lifespan of the transmission.
