Introduction to Reassembly and Testing of the Twin Disc MG5075A Transmission
Reassembling the Twin Disc MG5075A transmission after disassembly and repair is a critical process that requires precision, attention to detail, and adherence to proper torque specifications and alignment procedures. A thorough and systematic approach to reassembly ensures the transmission operates smoothly, efficiently, and reliably.
This section covers the proper alignment and torque specifications, reinstalling hydraulic components, fluid refilling and priming procedures, bench testing and operational verification, and final installation and system integration. Following these detailed guidelines will prevent common issues such as leaks, misalignment, and shifting failures, ensuring the transmission functions optimally once reinstalled in the vessel.
1. Proper Alignment and Torque Specifications
Before starting the reassembly process, it is essential to follow manufacturer-specified alignment tolerances and torque values to prevent premature wear and mechanical failures.
A. Ensuring Proper Shaft Alignment
✔ Input and output shafts must be perfectly aligned to avoid vibration and wear.

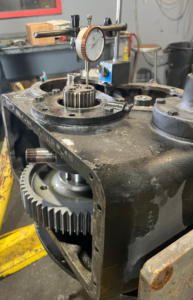

✔ Use a dial indicator to check the alignment of the output shaft to the propeller shaft.
✔ Alignment should be within 0.002 to 0.005 inches to ensure smooth power transfer.
Alignment Procedure:
- Position the transmission on a stable workbench or mounting fixture.
- Check for any shaft misalignment using precision measurement tools.
- Adjust the mounting position if necessary to achieve the correct tolerances.
B. Proper Torque Specifications
Using a calibrated torque wrench is crucial to ensure that bolts and fasteners are tightened correctly.
| Component | Torque Specification (ft-lbs) |
| Transmission mounting bolts | 75 – 90 |
| Input shaft bolts | 60 – 75 |
| Clutch pack fasteners | 40 – 55 |
| Output shaft coupling bolts | 80 – 100 |
| Hydraulic line fittings | 25 – 35 |
✔ Tighten bolts in a crisscross pattern to distribute pressure evenly.
✔ Always refer to the Twin Disc service manual for exact specifications.
✔ Over-tightening can cause stress fractures, while under-tightening may lead to leaks and component shifting.
2. Reinstalling Hydraulic Components
The Twin Disc MG5075A transmission uses a hydraulically actuated clutch system, requiring proper installation of hydraulic components to ensure smooth gear engagement and shifting.
A. Installing the Hydraulic Pump
✔ Align the hydraulic pump mounting holes with the transmission housing.
✔ Apply a thin coat of transmission fluid to the pump seals.
✔ Secure the pump using properly torqued mounting bolts.
✔ Rotate the pump manually to ensure free movement.
B. Reconnecting Hydraulic Hoses and Valves
✔ Ensure all hydraulic hoses are free of cracks or damage.
✔ Use new O-rings and gaskets on fittings to prevent leaks.
✔ Hand-tighten fittings first, then torque to manufacturer specifications.
✔ Bleed air from the hydraulic system to prevent pressure loss.
C. Reinstalling the Clutch Pack
✔ Align the clutch plates and pressure plates correctly.
✔ Apply a thin film of transmission fluid to clutch discs before installation.
✔ Secure the clutch assembly using the correct torque values.
✔ Manually engage and disengage the clutch to check for proper movement.
3. Fluid Refilling and Priming Procedures
Once the transmission is fully reassembled, it must be properly filled with fresh transmission fluid and primed to ensure smooth operation.
A. Selecting the Correct Transmission Fluid
✔ Use Twin Disc-approved hydraulic transmission fluid.
✔ Ensure the fluid has anti-wear, anti-foam, and high thermal stability properties.
✔ Check the recommended viscosity for the operating environment.
B. Refilling the Transmission with Fluid
- Remove the filler cap and insert a clean funnel.
- Slowly pour the recommended amount of fresh fluid into the reservoir.
- Check the fluid level using the dipstick to ensure the correct fill.
- Allow the fluid to settle and circulate before final level check.
C. Priming the Hydraulic System
✔ Manually pump hydraulic fluid through the system to remove air pockets.
✔ Start the engine at low idle speed and shift through forward and reverse gears.
✔ Check the hydraulic pressure readings and ensure they meet OEM specifications.
✔ Inspect for fluid leaks at hose connections and fittings.
4. Bench Testing and Operational Verification
Before reinstalling the Twin Disc MG5075A transmission, a bench test must be performed to ensure all components function correctly.
A. Setting Up the Bench Test
✔ Secure the transmission to a test stand or workbench.
✔ Connect hydraulic lines to a controlled fluid supply.
✔ Use a dummy driveshaft or alignment fixture to simulate output conditions.
B. Conducting the Transmission Bench Test
✔ Start the transmission in neutral and observe for abnormal noises or vibrations.
✔ Shift into forward and reverse gears, ensuring smooth engagement.
✔ Monitor hydraulic pressure and fluid flow to verify proper operation.
✔ Observe for leaks or overheating during extended testing.
C. Inspecting for Final Adjustments
✔ If the transmission shifts too harshly or slowly, adjust hydraulic pressure settings.
✔ Ensure clutch engagement occurs without excessive delay or slippage.
✔ Check the cooling system flow to ensure adequate heat dissipation.
Performing bench tests before final installation allows technicians to identify and resolve potential issues before vessel operation.
5. Final Installation and System Integration
Once the MG5075A transmission has passed bench testing, it is ready for final installation and integration with the vessel’s propulsion system.
A. Mounting the Transmission to the Engine
✔ Align the transmission mounting holes with the engine flywheel housing.
✔ Insert and torque the mounting bolts in a crisscross pattern.
✔ Ensure the input shaft is properly seated in the engine flywheel.
B. Connecting the Propeller Shaft
✔ Align the output shaft to the propeller shaft within 0.002-inch tolerance.
✔ Secure the coupling bolts using proper torque values.
✔ Rotate the propeller shaft manually to check for free movement.
C. Final Hydraulic and Electrical Connections
✔ Connect all hydraulic hoses and check for leaks.
✔ Reinstall the transmission control cables, ensuring proper tension.
✔ Test the electrical connections for the shift solenoids and sensors.
D. Final System Check Before Operation
✔ Check transmission fluid levels and top off if needed.
✔ Start the engine and monitor transmission temperature and pressure.
✔ Shift through gears while observing engagement performance.
✔ Conduct a sea trial under load to verify real-world performance.
Conclusion
Proper reassembly and testing of the Twin Disc MG5075A transmission ensures efficient and reliable operation in demanding marine conditions.
Key Takeaways:
✔ Align all shafts and torque bolts correctly to prevent failures.
✔ Reinstall hydraulic components carefully to ensure smooth operation.
✔ Refill and prime hydraulic fluids properly to prevent shifting issues.
✔ Perform a thorough bench test before final installation.
✔ Verify all system integrations and conduct final operational checks.
By following these detailed procedures, marine operators and technicians can ensure their Twin Disc MG5075A transmission operates smoothly, efficiently, and reliably for extended service life.
