The Caterpillar 3208 Marine Engine Valve Lash Inspection and Adjustment

The Caterpillar 3208 marine engine is a robust, reliable powerhouse when maintained according to schedule. One of the most critical milestones in its maintenance regimen occurs at 9000 liters (2400 US gallons) of fuel consumption, 250 service hours, or 1 year, whichever comes first. At this point, it is essential to perform a comprehensive engine valve lash inspection and adjustment. This task ensures optimal valve operation, proper combustion, and long-term engine health.

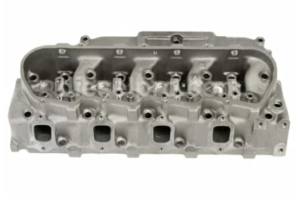

Understanding Valve Lash in the Caterpillar 3208 Marine Engine

What is Valve Lash?

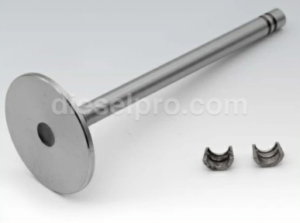

Valve lash, also known as valve clearance, refers to the small gap between the tip of the valve stem and the rocker arm or cam follower when the valve is fully closed. This gap allows for thermal expansion of engine components as the engine heats up.

If the valve lash is too tight (too small), valves may not seat properly, causing compression loss, overheating, and valve damage. If too loose (too large), the valve train may produce noise, reduced power, and increased wear.

Why is Valve Lash Adjustment Important?

• Prevents Power Loss: Ensures the valves open and close at the correct timing and duration for optimal combustion.

• Extends Engine Life: Reduces wear on valve train components such as camshafts, rockers, and valve seats.

• Protects Engine Components: Minimizes the risk of burnt valves or damaged cylinder heads.

• Enhances Fuel Efficiency: Maintains proper compression and combustion efficiency, crucial in marine operations.

Tools and Materials Required for Valve Lash Inspection and Adjustment

• Feeler gauge set calibrated to Caterpillar specifications

• Torque wrench for fasteners

• Valve cover removal tools (typically socket wrenches)

• Manufacturer’s valve lash specification chart (from the Caterpillar Operation & Maintenance Manual)

• Shop rags and cleaner to remove dirt from components

• Marking tool (chalk or paint pen) to mark completed cylinders

• Personal protective equipment: gloves, eye protection, coveralls

Step-by-Step Procedure for Valve Lash Inspection and Adjustment

1. Prepare the Caterpillar 3208 Marine Engine

• Cool Down: Allow the engine to cool to ambient temperature to prevent inaccurate measurements.

• Engine Shutdown: Disconnect the negative battery cable and remove the ignition key.

• Clean Surroundings: Use rags and cleaner to remove debris from the valve covers and surrounding areas.

2. Remove Valve Covers

Using appropriate tools, remove the valve covers carefully. Inspect gasket conditions and set them aside for reuse or replacement if needed.

3. Identify Cylinder Firing Order

The Caterpillar 3208 marine engine typically follows a firing order of 1-2-7-3-4-5-6-8. Understanding this is essential for adjusting each valve when its cylinder is at Top Dead Center (TDC) on the compression stroke.

4. Rotate the Engine to TDC of Cylinder #1

• Manually rotate the crankshaft using a wrench on the crankshaft pulley bolt.

• Observe the valves on cylinder #1—both intake and exhaust valves should be closed, with rocker arms loose.

5. Measure Valve Lash

• Insert the feeler gauge between the valve stem and rocker arm.

• Refer to Caterpillar’s specifications for correct clearances (e.g., intake: 0.015 inch, exhaust: 0.030 inch; confirm with your model’s manual).

• If clearance is correct, proceed. If not, adjust.

6. Adjust Valve Lash

• Loosen the lock nut on the adjusting screw of the rocker arm.

• Turn the adjusting screw until the feeler gauge slides with slight drag.

• Tighten the lock nut while holding the adjusting screw in place.

• Recheck clearance with the feeler gauge.

7. Mark Completed Cylinder

Use a marking tool to indicate the cylinder has been inspected and adjusted.

8. Repeat for All Cylinders

Rotate the crankshaft 90 degrees each time to bring the next cylinder to TDC in firing order. Repeat the measurement and adjustment process for all intake and exhaust valves.

9. Reassemble Valve Covers

• Clean mating surfaces and inspect gaskets. Replace if necessary.

• Reinstall valve covers and torque to Caterpillar specifications.

10. Final Checks

• Reconnect the battery cable.

• Start the engine and listen for unusual noises (clicking or tapping may indicate incorrect lash).

• Monitor engine operation for smoothness and consistent power output.

Common Issues and Troubleshooting

• Noise After Adjustment: Double-check lash measurements and confirm torque values.

• Excessive Valve Clearance: Could indicate wear in valve train components—inspect for worn rocker arms, cam lobes, or pushrods.

• Tight Valve Lash: Can cause hard starting or misfiring—readjust immediately.

• Persistent Oil Leaks: Inspect valve cover gaskets and replace if necessary.

Safety Precautions for Valve Lash Servicing

• Always disconnect the battery to prevent accidental engine starts.

• Wear PPE to protect against oil, grease, and debris.

• Allow the engine to cool fully to avoid burns from hot components.

• Use proper tools to prevent damage to precision parts.

• Dispose of used gaskets and cleaning materials responsibly.

Pro Tips for Accurate Valve Lash Adjustment

• Use a dial indicator on the crankshaft pulley to precisely locate TDC.

• Double-check measurements with a second feeler gauge for accuracy.

• Record measurements for future reference and trend analysis.

• Combine this task with an oil change for optimal lubrication and protection.

Why Timely Valve Lash Inspection is Crucial

Regular valve lash inspection and adjustment are vital for:

• Preventing costly engine damage due to incorrect valve operation

• Maximizing fuel efficiency and power output, crucial for commercial marine operations

• Extending the lifespan of the Caterpillar 3208 marine engine by minimizing wear and tear

• Enhancing onboard safety by reducing the risk of catastrophic failures at sea

Summary

At 9000 L (2400 US gallons) of fuel consumption, 250 service hours, or 1 year, inspecting and adjusting valve lash in the Caterpillar 3208 marine engine is not just recommended—it’s essential.

By ensuring correct valve clearances, you’re safeguarding your engine’s health, performance, and longevity.

Always refer to the official Caterpillar Operation & Maintenance Manual for precise specifications and procedures. Consistent attention to this maintenance milestone sets the foundation for a reliable, efficient, and long-lasting marine engine.
