Injector Timing for the Detroit Diesel 6-71
Understanding the Role, Procedure, and Importance of Proper Timing
Injector timing is one of the most critical maintenance procedures on the Detroit Diesel 6-71 engine. As one of the most widely used two-stroke diesels in marine, industrial, and military applications, the 6-71’s performance, fuel efficiency, and reliability depend heavily on having the injectors set to factory-correct timing specifications. Because the 6-71 uses unit-type fuel injectors actuated mechanically by the camshaft, even a small deviation in timing can produce noticeable changes in engine behavior. Understanding how timing works, why it matters, and how it is set provides valuable insight into the inner workings of this classic Detroit Diesel platform.
How Timing Works in a Detroit Diesel 6-71
The Detroit Diesel 6-71 is part of the original Series 71 two-stroke lineup. Fuel delivery, air handling, and combustion all happen differently than in a four-stroke engine. Instead of a high-pressure fuel pump distributing fuel to each cylinder, the 6-71 uses camshaft-actuated unit injectors. This means each injector functions as its own miniature pump, metering and injecting fuel directly into the cylinder at the precise moment determined by camshaft geometry and injector height adjustments.
In this system, injector timing refers to the mechanical adjustment of the injector follower and control rack to ensure the injector begins delivering fuel at the proper crankshaft angle. On the 6-71, timing is set by adjusting the injector body height using a dedicated timing gauge or height tool. By altering the injector height, the technician changes the point at which the plunger begins to pressurize fuel, thereby controlling injection timing.
Because the 6-71’s fuel system, blower, and port-scavenged airflow all rely on precise coordination, incorrect injector timing can cause issues ranging from mild performance loss to severe engine stress.
Injector Compoents for Detroit Diesel 671 Non – Turbo ( 2 Valve Head type)
Injector Compoents for Detroit Diesel 671 Non – Turbo ( 4 Valve Head type)
Injector Compoents for Detroit Diesel 671 Turbo Engine
Why Correct Injector Timing Matters
Injector timing is essential for several reasons:
1. Ensuring Proper Combustion
Incorrect timing changes when fuel ignites relative to piston position. If fuel is injected too early, it can ignite before the piston has fully reached top dead center, leading to harsh combustion. If injected too late, fuel burns inefficiently and increases exhaust temperatures and smoke.
2. Protecting Engine Components
Poor timing can increase stress on pistons, rings, and the blower. Early or late injection also affects cylinder temperatures and can lead to uneven loading across the engine.
3. Maintaining Power and Fuel Efficiency
The 6-71 is designed to operate within specific timing tolerances. Deviations negatively impact throttle response, horsepower output, and fuel economy.
4. Reducing Smoke and Emissions
The two-stroke design depends on perfectly coordinated airflow and fuel delivery. Mistimed injectors can cause excessive black, white, or blue smoke from the exhaust.
5. Ensuring Smooth Idle and Acceleration
With unit injectors wired together through the rack, one mistimed injector can influence the entire rack’s travel, affecting idle quality and cylinder balance.
For these reasons, Detroit Diesel service procedures emphasize timing accuracy and rechecking adjustments after any significant fuel system work.
Tools and Setup Required for Injector Timing
Setting injector timing on the Detroit Diesel 6-71 requires specific tools, most notably:
-
A Detroit Diesel-style injector timing height gauge
-
Feeler gauges for verifying lash adjustments
-
A torque wrench for securing injector hold-downs
-
A barring tool or crankshaft turning mechanism
-
Manufacturer-recommended injector settings for the specific engine model and injector size
Because the 6-71 was produced for many decades in numerous configurations—marine, industrial, naturally aspirated, turbocharged, and blower-only—timing values may differ slightly based on injector type and camshaft profile. Always confirm the correct height specification for the injectors installed.
In addition to tools, the engine must be positioned at the appropriate timing marks. Proper procedure includes rotating the engine through several full revolutions to set and verify each injector.

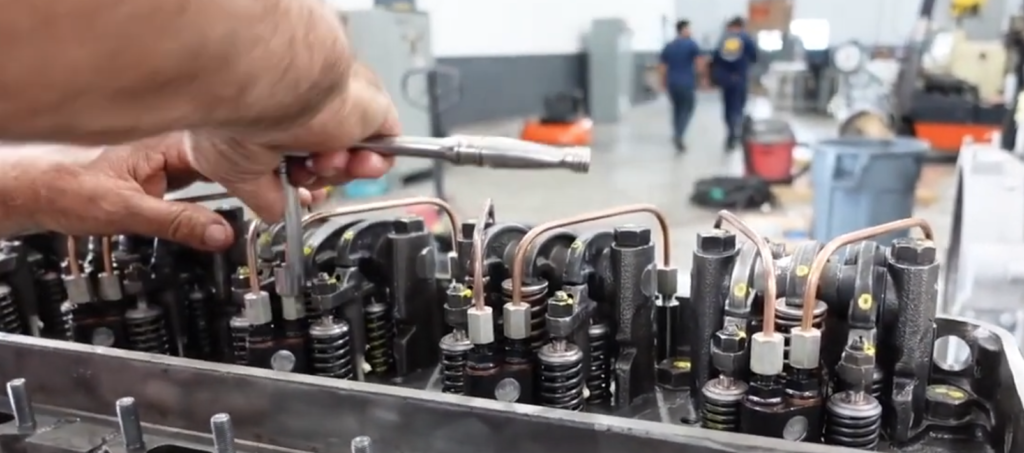

The Injector Timing Procedure
Injector timing for the 6-71 typically follows a sequence based on the firing order (1-5-3-6-2-4). While variations exist for certain turbocharged models, the core procedure is consistent:
1. Position the Engine at the Correct Timing Reference
Technicians rotate the crankshaft until the first cylinder to be set is at the proper reference point (often top dead center on the compression stroke). The flywheel or front gear cover includes timing marks that correspond to specific injector positions.
2. Loosen the Injector Locknut
This frees the injector plunger adjustment screw for height modification.
3. Insert the Timing Gauge
The height gauge fits between the injector body and the injector control rack. It sets a precise mechanical position that corresponds to the correct injection start point.
4. Adjust Injector Height
The injector adjustment screw is tightened or loosened until the height gauge fits with the correct level of resistance. This step determines the exact moment the injector plunger begins compressing fuel.
5. Torque the Injector Locknut
Once the height is set, the locknut is tightened to secure the adjustment. Proper torque is important because loose or overtightened locknuts can change the injector height over time.
6. Rotate the Engine and Repeat
Each injector is set individually according to the established firing order.
7. Final Rack and Governor Check
After setting all injectors, technicians verify that the rack moves freely and that the governor linkage is properly synchronized. The rack must return to the idle position smoothly with no binding.
Symptoms of Improper Injector Timing
Engine owners or operators often notice performance or behavioral changes when injector timing drifts. Common symptoms include:
-
Hard starting or extended cranking
-
Rough idle or unstable cylinder firing
-
Excessive black smoke (late timing)
-
Harsh knocking (early timing)
-
Higher-than-normal exhaust temperatures
-
Loss of power under load
-
Increased fuel consumption
-
Noticeable surging or poor throttle response
If these symptoms appear after injector or cylinder head work, incorrect timing adjustment is often the cause.
Causes of Timing Issues in a 6-71
Injector timing can drift or fall out of specification for several reasons:
-
Injector replacement or rebuild
-
Camshaft or follower wear
-
Loose or improperly torqued injector locknuts
-
Rack linkage misalignment
-
Excessive wear in injector internals
-
Cylinder head machining or replacement
-
General vibration over long operational hours
Because of this, timing should be rechecked during major service events, including overhaul, injector replacement, or governor recalibration.
Best Practices for Maintaining Timing Accuracy
To keep the Detroit Diesel 6-71 performing at peak efficiency, several best practices are recommended:
-
Use only injector height gauges designed specifically for Detroit Diesel engines.
-
Verify injector model and size before setting timing, as specifications differ.
-
Inspect rocker arms, injector followers, and pushrods for wear before adjusting timing.
-
Check timing periodically in high-hour marine engines or heavy daily-use applications.
-
Ensure the engine is at normal operating temperature before fine-tuning idle or rack movement.
-
Replace worn injectors as a set when possible to maintain uniform timing and cylinder balance.
Conclusion
Injector timing is fundamental to the Detroit Diesel 6-71’s performance, longevity, and efficiency. Because the engine relies on mechanically actuated unit injectors, the timing procedure is both precise and essential. Properly set injectors ensure clean combustion, stable idle, maximum power output, and the long-term durability for which the 6-71 series is known. For operators, technicians, and owners of these legendary two-stroke engines, understanding injector timing is key to maintaining reliable operation in marine, industrial, and standby applications.
