️ Detroit Diesel Cylinder Head (6V92 Valve Assembly)
In this video, we show you the assembly of a cylinder head with valves for a Detroit Diesel 6V92 engine. This step is a crucial part of any top-end rebuild, ensuring proper airflow, sealing, and compression across all cylinders. Whether you’re working on a 6V92 or a similar 92 Series engine, this video provides a helpful demonstration of how valves, seals, springs, and retainers are installed on a freshly prepared cylinder head.
The Detroit Diesel 6V92 is a two-stroke V6 engine commonly used in marine, industrial, and transit applications. Correct valve installation is essential for preventing blow-by, maintaining oil control, and achieving optimal combustion efficiency.
This video walks through the entire head assembly process, from prepping the parts to the final inspection, making it a valuable visual guide for both professional diesel mechanics and rebuilders handling a 92 Series head job.
⚠️ Please note: This video is for demonstration purposes only. It does not include safety instructions, torque specifications, or official installation procedures. Always refer to the Detroit Diesel service manual for exact specs and approved assembly steps.
Original Description and Timestamps:
0:00 – Introduction
1:36 – Materials
2:30 – Valve Grinding Compound (Note: Often skipped when using a new head and new valves)
8:19 – Valve Spring Seats Are Installed
8:53 – Valve Stem Seals (AKA Oil Valve Seals) Are Installed
9:21 – Preparing the Exhaust Valves for Installation
9:46 – Installation of the Valve Springs
10:03 – Compressing Springs With J745 Tool
10:50 – Final Inspection
Looking for a Cylinder Head for Your 6V92?
Diesel Pro Power offers complete 6V92 and 12V92 cylinder heads—fully assembled with valves, ready to install.

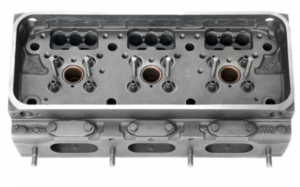

Cylinder Heads For Detroit Diesel 6V92 Non Turbo
Cylinder Heads For Detroit Diesel 6V92 Turbo
The Function of a Cylinder Head on a Detroit Diesel 6V92 Engine
Introduction to the Detroit Diesel 6V92
The Detroit Diesel 6V92 is part of the renowned 92 Series engine family — a group of two-stroke diesel engines widely used in marine, industrial, and heavy-duty on-road applications. With a 6-cylinder V configuration (hence 6V) and each cylinder displacing 92 cubic inches, the 6V92 combines compact power with rugged reliability.
One of the most critical components enabling this performance is the cylinder head. The cylinder head on a Detroit Diesel 6V92 does far more than simply close off the top of the cylinder; it plays multiple crucial roles in the engine’s combustion, airflow, fuel injection, and cooling systems.
Overview: What is a Cylinder Head?
In any internal combustion engine, the cylinder head forms the top seal of the combustion chamber. It bolts to the engine block, where the pistons travel up and down. Inside the head are machined passages, valve seats, injectors, and coolant and oil passages. It’s responsible for:
-
Sealing combustion pressure
-
Housing and controlling airflow (intake and exhaust)
-
Holding the injectors
-
Enabling proper heat transfer out of the combustion area
-
Guiding valves and springs to ensure precise timing of air and exhaust flow
In a Detroit Diesel two-stroke engine, like the 6V92, these functions take on unique characteristics due to the two-stroke design.
Sealing the Combustion Chamber
Containing High Combustion Pressures
When the piston comes up on its compression stroke and fuel is injected by the unit injector, the mixture ignites and creates immense pressure. The cylinder head’s first critical role is to provide a tight seal that contains this explosive force.
It accomplishes this through:
-
A machined flat mating surface: This surface, along with a high-quality head gasket, seals against the top of the cylinder liner.
-
Precision-machined valve seats: Prevent combustion gases from escaping around the valves.
-
Proper torque of head bolts: Ensures the head clamps tightly to the block, resisting the forces of combustion which can exceed 3,000 psi inside the chamber.
A leaking head seal would result in loss of power, overheating, and contamination of coolant or oil.
Managing Airflow: Intake and Exhaust in a Two-Stroke Design
A Unique Two-Stroke Process
Unlike a four-stroke engine where the head contains both intake and exhaust valves, the Detroit Diesel 6V92 is a two-stroke diesel. Here’s how that changes things:
-
No intake valves: Fresh air enters the cylinder through ports cut into the cylinder liner wall. When the piston moves down, it uncovers these ports, and air — pushed by the blower — flows in.
-
Exhaust valves only in the head: These are spring-loaded valves in the cylinder head that open to let exhaust gases escape after combustion.
This means the cylinder head on a 6V92 mainly manages the exhaust side of airflow.
Exhaust Valve Function
Each cylinder head contains:
-

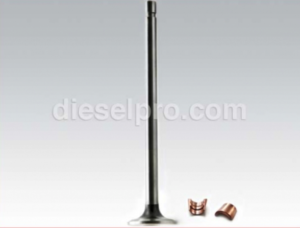

Exhaust valves (four per cylinder): Open and close at precise times to let spent combustion gases escape.
-
Valve springs and retainers: Control how quickly the valves close and ensure they stay sealed when not actuated.
-
Valve guides: Maintain the alignment of the valve stem, reducing side wear and oil consumption.
By precisely timing when these valves open and close, the cylinder head enables proper scavenging — allowing fresh air to push exhaust out and fill the cylinder for the next combustion cycle.
Housing the Injectors
Unit Injectors in Detroit Diesels
A key feature of Detroit Diesel two-stroke engines is their use of unit injectors. Unlike common rail or separate injection pumps, each injector:
-
Is mounted directly in the cylinder head above the combustion chamber.
-
Is actuated mechanically by the camshaft via rocker arms.
The injector pressurizes the fuel right above the piston, spraying it into the hot compressed air for immediate ignition.
Role of the Cylinder Head
The head:
-
Provides the machined bore and seating for the injector.
-
Includes fuel return passages and sealing areas to prevent leaks.
-
Directs cooling around the injector to prevent overheating and premature failure.
A properly designed head ensures the injector sits precisely aligned, maintaining the correct spray angle for optimal combustion.
Cooling the Combustion Area
Diesel combustion temperatures can exceed 2,500°F (1,370°C). The cylinder head plays a vital role in removing this heat.
Coolant Passages
Inside the cylinder head are carefully engineered water jackets, through which engine coolant circulates. This:
-
Draws heat away from the combustion chamber, exhaust valves, and injector area.
-
Prevents metal components from overheating, warping, or cracking.
This is especially critical in the 6V92, where the two-stroke cycle and continuous firing put intense thermal loads on the head.
Preventing Hot Spots
The head’s design ensures coolant flows evenly around critical areas like:
-
Exhaust valve seats (the hottest parts)
-
Injector bores
-
The sealing deck surface
Without proper cooling from the head, these zones could overheat, leading to valve seat erosion, cracked injectors, or head gasket failure.
Distributing Lubricating Oil
In addition to coolant, the cylinder head also channels oil to vital top-end components:
-
Valve stems and guides: Small amounts of oil help lubricate the sliding motion, preventing premature wear.
-
Rocker arms and injector followers: These need continuous lubrication to reduce friction and transfer camshaft motion smoothly.
Inside the head are drilled oil galleries that direct pressurized oil to these parts. Excess oil drains back to the sump via return passages.
Supporting Valve and Injector Actuation
The top of the head on a 6V92 supports the rocker arm assembly. This is critical for:
-
Opening the exhaust valves: Rockers pivot to press down the valve stems, opening them against spring pressure.
-
Actuating the unit injectors: Another set of rocker arms pushes down on the injectors to pressurize fuel.
The head must be rigid enough to withstand these forces without flexing. Precision machining ensures correct geometry so valves open exactly when the camshaft dictates.
Containing Blow-By and Managing Oil Control
Because the cylinder head seals the top of the combustion chamber, it also manages crankcase ventilation and oil control.
-
Seals and guides minimize oil pulled into the combustion process.
-
Any combustion gases that slip past piston rings (blow-by) are routed through breather systems that often connect to the head, ensuring they don’t over-pressurize the crankcase.
Specialized Features on the 6V92 Cylinder Head
Detroit Diesel engineered the 6V92 cylinder head with marine and heavy-duty use in mind. Some specialized features include:
-
Replaceable valve seats: Allow rebuilding rather than replacing the entire head when seats wear out.
-
High-strength castings: To withstand repeated thermal cycles and combustion pressures.
-

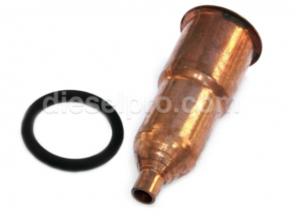

Injector tube inserts: In many designs, these tubes can be replaced if they corrode or leak, extending head life.
Summary: Why the Cylinder Head is So Critical on a Detroit Diesel 6V92
Putting it all together, the cylinder head on a Detroit Diesel 6V92:
-
Seals the combustion chamber, containing enormous pressures.
-
Controls exhaust flow, letting spent gases out at precisely the right moment.
-
Houses and cools the injectors, ensuring optimal spray and combustion.
-
Manages heat removal, protecting valves and seats through integrated coolant passages.
-
Delivers oil to moving parts, reducing wear.
-
Supports mechanical action, allowing the rocker arms to actuate both valves and injectors reliably.
Without a properly functioning cylinder head, the engine would lose power, overheat, burn oil, misfire, or fail entirely. For marine operators or fleet managers running 6V92s in boats, buses, or construction, maintaining the cylinder head in top condition is key to long service life and efficient operation.
