Summary of Key Ideas In This Article

• Overview of Detroit Diesel V71 piston ring set installation, supported by a step-by-step instructional video

• Complete parts catalog coverage for V71 ring sets across all engine variants:

  • 6V71, 8V71, 12V71, and 16V71

  • Turbo and non-turbo configurations

  • One-piece (trunk-type) and two-piece (crosshead-type) pistons

• Clear explanation of the differences between trunk-type and crosshead-type pistons used in V71 engines

• Detailed ring installation procedures, including:

  • Groove cleaning and preparation

  • Ring identification and correct orientation

  • Proper installation sequence using ring expander tools

• Best practices for ring end-gap staggering to reduce blow-by and oil consumption

• Final inspection steps to ensure correct ring movement, side clearance, and bore fit

• Critical installation cautions such as avoiding ring reuse, verifying end gaps, and proper lubrication

• Explanation of why correct ring installation is essential for compression, oil control, and engine longevity

• Reasons fleet managers and marine mechanics choose Diesel Pro Power for V71 ring sets:

  • Two-stroke–specific ring design

  • Accurate fitment with OEM-style pistons and liners

  • Proven performance in high-hour marine and industrial engines

  • Global availability and long-term support for legacy Detroit Diesel platforms

The video above shows the installation of rings sets for a Detroit Diesel V71 Engine

See Our Parts Catalog For Ring Sets For Detroit Diesel V71 Engines

Ring Sets For Detroit Diesel 6V71 Non Turbo 1 Piece Piston

Ring Sets For Detroit Diesel 6V71  Non Turbo 2 Piece Piston

Ring Sets For Detroit Diesel 6V71 Turbo

Ring Sets For Detroit Diesel 8V71 Non Turbo 1 Piece Piston

Ring Sets For Detroit Diesel 8V71 Non Turbo 2 Piece Piston

Ring Sets For Detroit Diesel 8V71 Turbo Engine

Ring Sets For Detroit Diesel 12V71 Non Turbo 1 Piece Piston

Ring Sets For Detroit Diesel 12V71 Non Turbo 2 Piece Piston

Ring Sets For Detroit Diesel 12V71 Turbo

Ring Sets For Detroit Diesel 16V71 Non Turbo 1 Piece Piston

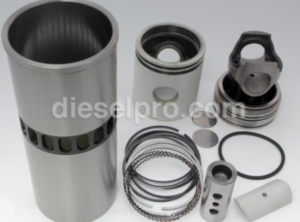

Ring Sets For Detroit Diesel 16V71 Non Turbo 2 Piece Piston

Ring Sets  For Detroit Diesel 16V71 Turbo

Piston Ring Installation Instructions For Detroit Diesel V71 Engines (6V71, 8V71, 12V71, 16V71)

Installation Instructions for Trunk-Type Pistons (One-Piece Pistons)

Trunk-type pistons are common in 6V71 and 8V71 engines. These pistons use compression and oil control rings installed directly on the piston body.

1. Preparation

• Clean the piston ring grooves and piston surfaces with a lint-free cloth.

• Make sure all carbon deposits and burrs are removed.

• Use a ring groove cleaner or a broken piston ring to scrape the grooves.

• Ensure correct piston-to-cylinder and ring-to-groove clearances per spec.

2. Ring Orientation

• Determine the correct orientation from the ring markings:

  • “Top” marking faces the top of the piston.

  • For rings with a tapered face, the narrow edge always faces upward.

• Oil control rings may come in multiple parts (rail and expander); follow the manufacturer’s assembly layout.

3. Installing the Rings

• Use a proper ring expander tool. Never spread the ring ends apart more than necessary.

• Install oil rings first, followed by compression rings, working from the bottom groove up.

• Rotate each ring until its end gap is aligned at a different position than the one below it, typically spaced 120° apart.

4. End Gap Staggering

• Do not align ring end gaps. A common spacing recommendation:

  • Top ring: 10 o’clock

  • Second ring: 4 o’clock

  • Oil ring rails: 2 o’clock and 8 o’clock

• This reduces blow-by and oil consumption.

5. Final Inspection

• Ensure each ring rotates freely in its groove (except oil expanders).

• Measure ring side clearance with a feeler gauge.

• Insert piston into the cylinder using a ring compressor. Do not force or hammer the piston.

Installation Instructions for Crosshead-Type Pistons (Two-Piece Pistons)

Crosshead pistons are used in later 71 series marine and heavy-duty configurations like the 16V71TI. These pistons consist of an upper crown and a lower skirt connected by a wrist pin. Rings are installed on the crown portion.

1. Preparation

• Separate the piston crown from the skirt if not already done.

• Thoroughly clean ring grooves and check for damage or wear.

• Verify the ring groove width and depth for correct ring fit.

2. Ring Identification and Orientation

• The ring set typically includes:

  ---

  • Multiple compression rings (often 3) with bevels or steps.

  • One or more oil control rings, sometimes using a slotted cast ring or multiple segments.

• Bevels and step cuts must face up toward the combustion chamber.

• Always follow the service manual’s diagram or match old ring configuration if available.

3. Installing the Rings

• Use a ring expander and avoid twisting rings onto the piston crown.

• Start with the oil control ring, then proceed upward.

• On some crosshead pistons, back-up rings or spacers may be used in the oil groove.

4. Ring End Gap Positioning

• Stagger all ring end gaps. Common pattern:

  • Top compression ring: 12 o’clock

  • Second compression ring: 6 o’clock

  • Third compression ring: 9 o’clock

  • Oil ring segments: 3 o’clock and 7 o’clock

• Avoid placing gaps near the piston pin axis.

5. Inspection and Fit

• Ensure all rings can move freely in their grooves.

• Measure axial clearance (side clearance) and ring-to-bore end gap.

• Assemble the piston crown to the skirt using the proper wrist pin and retainers.

• Use a ring compressor to install the piston into the liner, being cautious not to damage the ring lands.

Additional Notes for Both Piston Types

• Do not reuse old piston rings. Always install new rings during a rebuild.

• Check end gap by inserting the ring into the cylinder bore and measuring with a feeler gauge. Consult the manual for correct specs.

• Lubricate the piston and rings with clean engine oil before installation.

• Use a ring compressor and ensure rings are compressed evenly during insertion.

• Avoid hammering or forcing the piston during installation—use smooth, even pressure.

  ---

  Why Fleet Managers and Marine Mechanics Choose Diesel Pro Power for Detroit Diesel V71 Ring Sets

  ---

  1. Designed Specifically for Detroit Diesel Two-Stroke Engines

  ---


  Detroit Diesel V71 engines rely on precise ring design to manage compression, oil control, and scavenging in a two-stroke cycle. Fleet managers and marine mechanics choose Diesel Pro Power because its ring sets are selected specifically for Detroit Diesel V71 applications, ensuring correct ring profiles, materials, and clearances that match original engine design requirements.

  2. Built to Handle Continuous-Duty Marine Operation

  ---


  V71 engines commonly operate under sustained load in commercial vessels, generators, and industrial equipment. Diesel Pro Power ring sets are sourced to withstand continuous operation, elevated temperatures, and long service intervals. Proper metallurgy and surface finishes help rings seat correctly and maintain consistent performance over time.

  3. Accurate Fitment Reduces Rework and Downtime

  ---


  Ring fitment is critical in two-stroke engines. Incorrect ring sizing or tension can lead to blow-by, oil consumption, and liner scoring. Marine mechanics trust Diesel Pro Power because its ring sets are manufactured to precise dimensional standards, reducing installation issues and helping engines return to service faster.

  4. Compatibility with OEM Liners and Pistons

  ---


  Diesel Pro Power ring sets are designed to work seamlessly with OEM-style liners and pistons used in Detroit Diesel V71 engines. This compatibility ensures proper ring seating, even wear patterns, and consistent compression across all cylinders during rebuilds or in-frame overhauls.

  5. Proven Performance in High-Hour Engines

  ---


  Many Detroit Diesel V71 engines have logged tens of thousands of operating hours. Fleet managers rely on Diesel Pro Power ring sets to restore compression and reduce oil consumption in high-hour engines, extending service life without the cost of premature repowers.

  6. Support for Planned Maintenance and Overhaul Cycles

  ---


  Ring replacement is often scheduled during mid-life overhauls or major rebuilds. Diesel Pro Power offers reliable availability of V71 ring sets, allowing fleet managers to plan maintenance intervals and minimize unplanned downtime.

  7. Trusted Global Supplier for Fleet Operations

  ---


  With customers in more than 180 countries, Diesel Pro Power supports fleets operating worldwide. Consistent quality, dependable supply, and Detroit Diesel expertise make Diesel Pro Power a trusted source for V71 ring sets across global marine and industrial fleets.

  8. Long-Term Partner for Legacy Engine Support

  ---


  Fleet managers and marine mechanics choose Diesel Pro Power not just for parts, but for long-term support of legacy Detroit Diesel engines. Reliable ring sets, consistent quality, and two-stroke expertise make Diesel Pro Power the go-to source for maintaining Detroit Diesel V71 engines in demanding service.
