Installing a Cylinder Head and Injectors on a Cummins 6CTA 8.3L For Cummins 6C, 6CT, & 6CTA
Introduction For Cummins 6C, 6CT, & 6CTA
Installing a new cylinder head along with injectors on a Cummins 6CTA 8.3L marine diesel engine is one of the most critical jobs you can perform to restore the engine’s power and ensure long-term reliability. This step-by-step guide walks you through how professionals like Onsite Diesel carried out this installation on a pleasure yacht, using proven practices and mechanical discipline.
This article is designed to give you a comprehensive overview. For very specific tolerances, torque sequences, or part interchange guidance, always reference your exact Cummins C Series specifications and consult a qualified diesel technician if unsure.
See Our Catalog Of Cylinder Heads For Cummins Engines
Preparing for the Cylinder Head Installation For Cummins 6C, 6CT, & 6CTA
Before placing the new cylinder head, proper preparation is absolutely essential. Rushing through these steps often leads to leaks, poor performance, or even catastrophic failure.
Cleaning and Inspection of the Block
-
Thoroughly clean the cylinder block’s deck surface. This means removing all traces of old gasket material, rust, or oil film. A clean deck ensures the new head gasket seals evenly across all combustion chambers and coolant passages.
-
Use a lint-free cloth with a solvent that leaves no residue. Avoid scratching or gouging the metal.
-
Check for flatness using a straight edge and feeler gauge across the length and width of the block. Any warpage beyond service specs calls for machine shop resurfacing.
-
Measure piston protrusion. For most Cummins 6CTA setups, this needs to be under 0.40 mm (0.016 inches). Too high can crush the gasket; too low reduces compression.

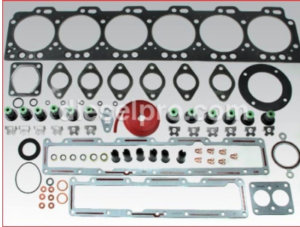

Organizing New Parts and Tools
Have all replacement parts ready, including:
-
New cylinder head gasket matched to your engine’s piston projection and cooling layout.
-
A full set of new cylinder head bolts. These are torque-to-yield fasteners designed to stretch. Reusing old bolts risks improper clamping force.
-
New injector O-rings and sealing washers.
-
Fresh high-pressure fuel line seals.
-
Clean engine oil (typically 15W-40) for lubricating threads and components.
Also prepare your torque wrench, angle gauge, feeler gauges, and a calibrated dial indicator for piston checks. If working aboard a yacht, double check tool placement so nothing drops into the bilge.
Safety First
-
Wear gloves and protective eyewear at all times.
-
Secure the yacht to prevent rocking that could destabilize hoists or ladders.
-
Keep your work area tidy to avoid trips and drops.
Installing the Cylinder Head For Cummins 6C, 6CT, & 6CTA

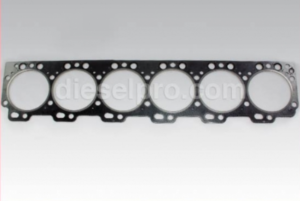

Aligning the Gasket
Place the new head gasket over the dowel pins in the block. Make sure:
-
All oil and coolant passages line up perfectly.
-
The gasket sits completely flat without buckling.
-
Any identification marks on the gasket (like “TOP” or an arrow) are oriented properly.
Misaligning the gasket is a costly mistake that could result in immediate leaks once you start the engine.
Lowering the Cylinder Head
With the help of a hoist or an assistant, carefully lower the cylinder head straight down onto the gasket and block.
-
Never slide or drag the head into place once it contacts the gasket. This can scrape or tear the critical sealing layers.
-
Check from all sides to confirm the head is sitting fully on the block, flush against the gasket.
Installing and Torquing Head Bolts For Cummins 6C, 6CT, & 6CTA
Preparing the Bolts
-
Dip the threads and the underside of the bolt heads lightly in clean engine oil. This prevents galling and ensures accurate torque readings.
-
Allow any excess oil to drip off so it doesn’t build hydraulic pressure in the bolt holes.
Inserting the Bolts
-
Place all the bolts into their respective holes. The Cummins 6CTA cylinder head uses long and short bolts, plus six bolts that go through the injector openings.
-
Hand tighten to seat the bolts snugly.
Three-Stage Tightening Procedure
The Cummins 6CTA uses a torque-plus-angle system for precise bolt stretch. Typically:
-
Tighten all bolts in the specified sequence to 70 Nm (52 ft-lb).
-
Tighten only the longer bolts to 145 Nm (105 ft-lb).
-
Then turn all bolts an additional 90 degrees. Mark the socket and bolt head with a paint pen to visualize the turn.
Follow the specific sequence pattern recommended by Cummins, usually spiraling outward from the center to distribute clamping force evenly. Rushing or skipping stages could warp the head or crush the gasket.
Installing Push Rods and Rocker Assemblies For Cummins 6C, 6CT, & 6CTA

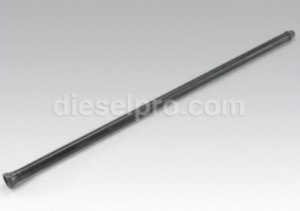

Push Rod Installation
-
Inspect each push rod by rolling it on a flat surface. Look for bends or damage.
-
Lightly oil the tips. Insert each rod into its original bore to maintain proper wear patterns. This is particularly critical on engines that reuse push rods.
Rocker Shaft and Arms
-
Position the rocker shaft assembly carefully on top of the push rods.
-
Verify each push rod is correctly seated in the rocker socket. Misalignment here could bend a push rod the first time you turn the engine.
Lightly snug the rocker shaft bolts in sequence. You’ll fully torque these after adjusting valve lash.

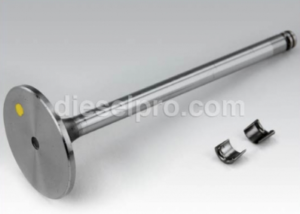

Setting Valve Lash For Cummins 6C, 6CT, & 6CTA
Proper valve lash (the gap between the rocker arm and the valve tip) is vital for engine breathing and longevity.
Typical cold settings:
-
Intake: 0.010 inches (0.254 mm)
-
Exhaust: 0.020 inches (0.508 mm)
Rotate the engine by hand to top dead center on the compression stroke for cylinder one. Adjust both intake and exhaust. Repeat for each cylinder following the firing order. Use a quality feeler gauge, tighten the locknut while holding the adjuster, and re-check clearance afterward.
Installing Injectors For Cummins 6C, 6CT, & 6CTA
Preparing the Injectors
-
Clean the injector bores in the head thoroughly. Any old carbon or washer debris can prevent proper sealing.
-
Lightly lubricate the new injector O-rings with engine oil. Avoid using heavy grease which can attract contaminants.
Seating the Injectors
-
Insert the injector gently, ensuring it doesn’t tilt or bind. You should feel it seat into the bore.
-
Install hold-down bolts and torque them evenly according to Cummins specs.

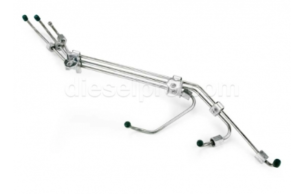

Connecting High Pressure Fuel Lines For Cummins 6C, 6CT, & 6CTA
-
Always install new sealing washers at the banjo fittings on the fuel pump side.
-
The lines should fit “free state” — meaning they should not be forced into position. Any misalignment stresses the tubing and can cause cracks.
-
Torque line nuts to about 24 Nm (18 ft-lb). Over-tightening risks stripping threads or deforming seals.
Installing Valve Covers and Final Assemblies For Cummins 6C, 6CT, & 6CTA
-
Check the valve cover gasket for any hard spots or tears. Replace if needed.
-
Install the cover and torque bolts to spec. An even seal prevents oil mist leaks which are common on marine engines under high load.
Priming the Fuel System and First Start For Cummins 6C, 6CT, & 6CTA
Priming the Fuel System
Use the manual primer on the lift pump (if equipped) or cycle the ignition for electric pumps. Loosen a high point fitting slightly to let air bleed. You’ll see fuel free of bubbles when ready.
First Startup
-
Crank and start the engine, watching the oil pressure gauge closely. Shut down immediately if it doesn’t build pressure within a few seconds.
-
Once running smoothly, monitor for leaks at the head gasket seam, injector holds, and fuel lines.
Post-Install Checks For Cummins 6C, 6CT, & 6CTA
Warm Up and Recheck
Let the engine come up to full operating temperature. Check:
-
Coolant level and pressure.
-
Oil level after shutdown. New head installs can sometimes redistribute trapped oil.
-
Listen for unusual ticking or knocking which may indicate lash issues.
Oil and Filter Change
It’s good practice to change the oil and filter after a short break-in run. This helps flush out any contaminants from the installation process.
Lessons Learned from the Onsite Diesel Installation For Cummins 6C, 6CT, & 6CTA
Watching Onsite Diesel’s team install a new head and injectors provided these excellent takeaways:
-
Mark your torque wrench socket and bolt heads with paint to clearly track 90-degree turns.
-
Keep every fuel line bracket or support in its original position. Missing supports are a major cause of line cracks due to vibration.
-
Cleanliness matters more than speed. Wipe down every sealing surface twice.
Frequently Asked Questions (FAQ) For Cummins 6C, 6CT, & 6CTA
How heavy is the Cummins 6CTA 8.3 cylinder head?
Approximately 23 kg (50 lbs). Always use a hoist or two people to maneuver it safely.
Should I replace head bolts?
Yes. These are designed to stretch. Reusing them risks improper clamping which can lead to head gasket failure.
How critical is valve lash on this engine?
Very. Incorrect lash can burn valves or cause excessive noise and wear. Always adjust carefully.
Why is my engine smoking after a head replacement?
Some smoke is normal initially. It could be leftover oil in cylinders or valve guide seals seating. Persistent smoke may indicate an installation issue.
Can I install injectors dry?
No. Always lightly oil the O-rings. This ensures they seat smoothly and seal properly.
Why check piston protrusion?
It ensures the piston height above the block is within spec. Too much can crush the gasket; too little reduces compression.
What’s the common torque spec on injector hold downs?
This varies by injector type. Typically around 30 Nm (22 ft-lb), but always confirm with your engine data.
Should I retorque the head after break-in?
Most torque-plus-angle systems like on this engine do not require retorquing. Always check your specific CPL recommendations.
Final Notes For Cummins 6C, 6CT, & 6CTA
A cylinder head and injector installation on a Cummins 6CTA 8.3L is not just about bolting on parts — it’s about restoring the engine to reliable service so your yacht can travel with confidence. Whether cruising coastlines or embarking on offshore runs, knowing your head gasket is sealed properly and injectors are metering fuel accurately brings peace of mind.
If you need top-quality aftermarket cylinder heads, injectors, complete rebuild kits, or technical assistance for your Cummins 6CTA 8.3 or any engine in the Cummins C Series family, reputable suppliers specializing in marine and industrial diesel engines can guide you through the selection process.
-
