Installing Liner Seals on a Cummins KTA19: Why They Matter

---

---

In this video, our customer Imperial Diesel Service, LLC is preparing to rebuild a Cummins KTA19 engine installed in a working tugboat—an application where reliability is non-negotiable and downtime is costly. As with any major overhaul, success starts with attention to the fundamentals. One of the very first steps in this rebuild process is properly fitting liner seals onto the engine’s cylinder liners before final installation into the block.

Although liner seals are small components, they play an outsized role in the long-term durability of the Cummins KTA19. These seals are responsible for preventing coolant from leaking into the crankcase or combustion chamber, maintaining proper cooling system pressure, and protecting internal engine components from corrosion and contamination. In marine environments—where engines operate under continuous load and are exposed to moisture, heat, and vibration—failed or improperly installed liner seals can quickly lead to catastrophic engine damage.

By taking the time to correctly install new liner seals during the early stages of the rebuild, Imperial Diesel Service is laying the groundwork for a reliable, long-lasting overhaul. This step highlights why experienced marine diesel technicians focus on precision and component quality from the very beginning—ensuring the KTA19 is ready to return to service with the strength and dependability required of a working tugboat engine.

---

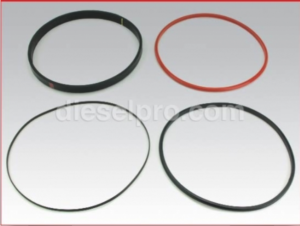

What Are Liner Seals?

---

---

The cylinder liner—also commonly referred to as a sleeve—forms the inner wall of the engine’s combustion chamber, an area exposed to extreme heat, pressure, and mechanical stress during operation. On the Cummins KTA19, each liner is precisely fitted into a machined bore within the engine block, providing a durable and replaceable wear surface that helps extend the overall life of the engine. Because these liners interface directly with both the cooling system and the crankcase, proper sealing is critical.

To keep fluids where they belong, each liner is fitted with liner seals (also known as O-rings) near its base. These seals prevent coolant from leaking into the crankcase and stop oil contamination within the cooling system. Typically manufactured from high-performance elastomer compounds, liner seals are engineered to withstand hot coolant temperatures, exposure to engine oil, constant vibration, and thermal expansion. At the same time, they must remain flexible enough to maintain sealing pressure as the engine heats and cools over thousands of operating hours. When properly installed, these seals provide long-term protection against leaks, corrosion, and internal engine damage—making them a critical component in the reliability of the Cummins KTA19.

The Function of Liner Seals in a KTA19 Engine

---

Prevent Coolant Leaks Into the Crankcase

---

The primary function of liner seals in a Cummins KTA19 is to prevent coolant from escaping the water jacket that surrounds each liner and leaking into the crankcase. If liner seals fail or are improperly installed, coolant can contaminate the engine oil. This contamination reduces oil lubricity, accelerates bearing wear, and can quickly lead to oil breakdown, overheating, and catastrophic bottom-end failure. Even small leaks left unaddressed can cause severe damage over time.

Maintain Proper Liner Position and Compression Integrity

---

While liner seals do not directly contain combustion pressure, they play a vital role in keeping the liner properly positioned within the block. Correct liner seating ensures the liner maintains the proper height and alignment against the cylinder head gasket. This stability helps preserve cylinder roundness, consistent compression ratios, and efficient combustion—critical factors for power output and fuel efficiency in a heavy-duty marine engine.

Compensate for Thermal Expansion and Vibration

---

A marine KTA19 operates under sustained load for long periods, causing repeated heating and cooling cycles. As the engine block and liners expand and contract, liner seals flex to absorb this movement while maintaining a tight seal. This elasticity allows the engine to handle vibration and thermal stress without developing leaks, even after thousands of hours of operation.

Protect Against Corrosion and Erosion

---

Modern liner seal materials are engineered to resist chemical breakdown from coolant additives and protect against corrosion at the liner-to-block interface. This protection helps prevent pitting, erosion, and seal groove damage, significantly extending engine service life.

---

Marine Rebuild Challenges: Why Seal Quality Matters

---

Marine engines like the Cummins KTA19 operate in some of the harshest conditions of any diesel application—long operating hours, high humidity, salt exposure, and constant vibration transferred through the hull. Tugboats, in particular, spend much of their service life running at steady, heavy throttle, pushing loads for extended periods without relief. Under these conditions, even minor weaknesses in the liner sealing system can quickly escalate into major failures, resulting in unplanned downtime and expensive repairs.

Because liner seals sit at the intersection of the cooling system and the crankcase, their quality is critical. Using high-quality seals engineered specifically for the KTA19 is essential to long-term reliability. Generic or poorly manufactured O-rings may harden, shrink, or lose elasticity when exposed to heat, coolant chemistry, and vibration. When this happens, coolant can leak past the liner and into the crankcase, leading to oil dilution, accelerated bearing wear, corrosion, and in severe cases, engine seizure. In a working tugboat, these failures can take a vessel out of service for weeks.

---

Tips for Installing KTA19 Liner Seals

---

• Cleanliness is critical: Any dirt, corrosion, or old gasket material in the block counterbore can compromise the seal. Thoroughly clean and inspect all surfaces before installation.

  ---

• Use the correct assembly lubricant: Proper lubrication prevents O-rings from twisting, nicking, or tearing as the liner is installed.

  ---

• Verify liner protrusion: Correct liner height is essential for even head gasket clamping and preventing combustion gas leakage.

  ---

• Use OEM-quality components: Diesel Pro Power supplies liner seals that meet or exceed Cummins specifications for material strength, elasticity, and long-term durability in marine service.

  ---

Why Diesel Pro Power Liner Seals Are Trusted by Marine Operators

---

At Diesel Pro Power, we supply marine-grade Cummins KTA19 liner seals specifically engineered to withstand the extreme demands of continuous-duty marine operation. These seals are manufactured using high-performance elastomer compounds designed for long-term resistance to coolant additives, thermal cycling, pressure changes, and constant vibration. This level of durability helps ensure liner seals maintain their elasticity and sealing force throughout the life of the rebuild, reducing the risk of coolant leaks and internal engine damage.

With 40,000+ satisfied customers worldwide, Diesel Pro Power has seen firsthand how using properly engineered sealing components can make the difference between a reliable rebuild and a costly failure. Tugboats, workboats, fishing vessels, and offshore support equipment rely on these seals to perform under heavy load and harsh conditions without compromise. Our liner seals are application-matched to the Cummins KTA19 for proper fitment and consistent performance, helping technicians complete rebuilds with confidence.

Choosing Diesel Pro Power liner seals isn’t just about replacing a part—it’s about protecting your engine investment, minimizing downtime, and ensuring dependable performance when your vessel is working hardest out on the water.

---

See Our Cummins KTA19 Parts Catalog

At Diesel Pro Power, we maintain one of the most complete inventories of Cummins KTA 19 parts, ready to ship worldwide within 24 hours. Each component is sourced for quality, reliability, and compatibility with OEM standards.

---

Rebuild Kits for Cummins KTA 19

Whether you’re overhauling a marine propulsion engine or rebuilding an industrial unit, our rebuild kits include:

---

• Pistons and ring sets

• Cylinder liners and liner seals

• Upper and lower gasket sets

• Main and connecting rod bearings

• Thrust washers

• Camshaft bushings

• Retainer pins and wrist pins

Each kit is assembled to meet or exceed OEM tolerances, helping extend engine life and restore peak performance.

---

Fresh Water Pump for Cummins KTA19

---

The fresh water pump is a vital part of the Cummins KTA19’s closed-loop cooling system, circulating coolant through the engine block and heat exchanger to maintain optimal operating temperatures. Built for continuous-duty operation, these pumps are engineered to handle the high demands of both industrial and marine environments. Supporting components include:

---

• Thermostats and thermostat housings – Ensure accurate temperature regulation and smooth warm-up cycles.

• Radiator cleaner and coolant flush systems – Maintain clean coolant passages and prevent scale buildup for maximum heat transfer efficiency.

All fresh water cooling components are designed for extended service life, even in challenging heat and workload conditions.

---

Raw Water (Seawater) Pump for Cummins KTA19

---

The raw water pump—often called a seawater pump—draws in external water to cool the heat exchanger in marine applications. For saltwater operations, these pumps are equipped with marine zinc anodes to protect against corrosion. Supporting parts include:

---

• Impellers – High-performance designs for consistent water flow.

• Strainers – Prevent debris from entering the cooling system and damaging components.

• Pump seals – Provide reliable operation and prevent water leakage under heavy-duty use.

These seawater cooling components are engineered for long life in harsh saltwater conditions while maintaining maximum engine cooling performance.

---

Cylinder Head Components for Cummins KTA 19

---

Cylinder head integrity is vital for compression and fuel efficiency. We carry:

---

• Complete cylinder heads

• Valve springs, seals, and retainers

• Valve guides and inserts

• Head bolts and gasket sets

• Rocker arms, push rods, and crossheads

Heads are pressure-tested and machined to factory specs.

---

Fuel System Components for Cummins KTA 19

---

Maintain consistent fuel delivery and avoid injector damage with premium filtration and fuel system parts:

---

• Lift pumps and fuel filter housings

• Fuel/water separators

• Primary and secondary fuel filters

• Injection pump gaskets

• Fuel lines, fittings, and clamps

These parts help maximize combustion and minimize emissions across load cycles.

---

Crankshaft and Rotating Components for Cummins KTA 19

---

If you’re conducting a bottom-end rebuild, our stock includes:

---

• Crankshafts

• Connecting rods

• Main and rod bearing sets

• Crankshaft seals (front and rear)

• Vibration dampers

Balanced to reduce wear and increase rotational efficiency.

---

Turbocharger and Air System Components for Cummins KTA 19

---

Boost airflow and engine responsiveness with precision turbo and air system parts:

---

• Twin turbochargers

• Hump hoses and air cleaner assemblies

• Charge air coolers

• Turbo inlet and outlet gaskets

• Air intake elbows and clamps

Built to withstand extreme temperatures and marine salt exposure.

---

Exhaust System Components for Cummins KTA 19

---

Ensure backpressure stability and safe exhaust routing with:

---

• Exhaust manifolds

• Mufflers and elbows

• Heat shields and insulation wrap

• Manifold gaskets and studs

• Stack components and caps

All built to handle high-heat marine conditions.

---

Gauges and Monitoring Panels for Cummins KTA 19

---

Stay informed with real-time engine data. We offer:

---

• Oil pressure, water temperature, and RPM gauges

• Voltmeters and hour meters

• Mechanical and electric sensor-based gauges

• Multi-gauge marine dash panels

• Remote display harnesses and marine cables

---

Sensors and Switches for Cummins KTA 19

---

Precision monitoring helps prevent catastrophic engine failure:

---

• Oil pressure senders

• Coolant temp sensors

• Exhaust gas temp (EGT) probes

• Shutdown switches and alarm sensors

• Ignition switches and remote toggles

All sensors are vibration- and corrosion-resistant for marine and industrial use.

---

Sealants, Paints, and Finishing Accessories

---

Finish your installation or overhaul with professional-grade products:

---

• RTV silicone and gasket adhesives

• Cummins OEM red and black engine enamel

• Degreasers and radiator cleaners

• Thread sealants and anti-seize compounds

---
