Installing Piston Pins on Trunk-Type (1-Piece) Pistons

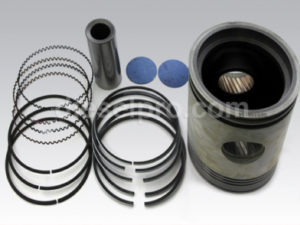

Trunk Type (1 Piece Piston)Kit For Detroit Diesel 11V71 — Trunk Type (1 Piece Piston)Kit For Detroit Diesel 12V71

Installing the piston pins—also known as wrist pins or gudgeon pins—is a critical step when rebuilding the Detroit Diesel 12V71 engine with trunk-type (1-piece) pistons. Improper installation can lead to catastrophic engine failure due to misalignment, oil starvation, or pin walk. This guide walks through the exact procedure for piston pin installation, adapted directly from the Detroit Diesel Series 71 Service Manual and optimized for use with high-quality aftermarket rebuild kits.

Whether you’re assembling a marine engine, industrial power unit, or generator set, the following process will ensure the wrist pins are correctly installed, aligned, and secured.

Understanding the Trunk-Type Piston Configuration

In the Detroit Diesel 12V71 engine, trunk-type pistons are forged as a single piece, combining both the crown and skirt in one unit. The piston pin passes through the piston bosses and through the small end of the connecting rod, which is nested inside the piston.

The wrist pin is fully floating, retained by two snap rings or circlips seated in grooves at either end of the piston pin bore.
The connecting rod small-end bushing must be in perfect condition, as the rod rides directly on the pin.
Proper pin lubrication and alignment are essential to avoid wrist pin seizure or piston scoring.

Parts and Tools Needed

Parts:

Trunk-type piston (1-piece)
Piston pin (wrist pin)
Two snap rings (or circlips)
Connecting rod (clean and bushed)
Assembly lube or engine oil

Tools:

Wrist pin driver or soft-face hammer
Snap ring pliers
Assembly lube brush
Clean shop rags
Micrometer or dial caliper (for measuring fit)
Torque wrench (for rod bolts, installed later)

Step-by-Step: Piston Pin Installation Procedure for 12V71 Trunk Pistons

1. Clean and Inspect All Parts

Before assembly, thoroughly clean and inspect:

Piston pin bore: Free of burrs, scratches, or carbon
Wrist pin: Must be straight, polished, and sized correctly
Rod small-end bushing: Must be within service clearance spec (typically 0.0015–0.0030 in. total clearance)
Snap ring grooves: Ensure they’re not worn or damaged

Use a lint-free cloth to remove all machining debris and packaging residue.

2. Lubricate Contact Surfaces

Apply a generous film of clean engine oil or assembly lubricant to:

Inside of the piston pin bore
Outer surface of the piston pin
Inside of the connecting rod small-end bushing

This lubrication prevents galling and scoring during installation and start-up.

3. Install One Snap Ring into the Piston

Before inserting the wrist pin, install one of the two snap rings into the piston’s wrist pin bore groove.

Snap Ring Installation Tips:

Use snap ring pliers to gently expand the ring.
Seat the ring fully into the groove—it should snap in audibly.
Rotate the ring using a small screwdriver to confirm it is fully seated.
Do not distort the ring—if it bends or deforms, discard and replace it.

This first snap ring will act as a stop for the wrist pin during insertion.

4. Align the Connecting Rod Inside the Piston

Insert the connecting rod small end into the piston.
Make sure the rod is centered between the piston bosses.
The spray hole on the rod must be oriented to the camshaft side of the engine.
Some mechanics mark the rods “IN” or “EX” based on port location to avoid confusion.

The connecting rod must not be cocked or misaligned during pin installation.

5. Insert the Wrist Pin Through the Piston and Rod

You may now insert the wrist pin:

Align the piston and rod bores by eye or using a wrist pin alignment tool.
Gently push the wrist pin through the piston boss, into the connecting rod, and through to the opposite piston boss.
If resistance is encountered, verify alignment before applying more pressure.
If needed, lightly tap the pin using a soft-faced hammer or a wrist pin driver. Do not force the pin—binding indicates misalignment or burrs.

The pin should slide through smoothly and evenly with minimal resistance due to the lubrication.

6. Install the Second Snap Ring

Once the pin is fully inserted:

Install the second snap ring into the opposite side of the piston.
Ensure it fully engages the groove with no gaps.
Rotate to verify proper seating.

Warning: If either snap ring is not fully seated, the pin can “walk” during engine operation, causing severe cylinder wall damage.

7. Verify Pin Fit and Rod Freedom

After both snap rings are installed:

Ensure the wrist pin is centered laterally between the piston bosses.
Swing the connecting rod side-to-side—it should move freely without excessive play or binding.
Use a feeler gauge if desired to confirm total side clearance between rod and piston (check manual for spec).
