Marine Raw Water Pump Maintenance and Impeller Servicing Guide

If you own or operate a marine diesel engine, there’s one small but critical component keeping everything running smoothly — the raw water pump. Whether you’re running a Detroit Diesel, Cummins, Caterpillar, John Deere, Northern Lights, Westerbeke, Volvo Penta, Kohler, Yanmar, Onan (Cummins), Scania, Perkins, or MAN engine, the raw water pump is your primary cooling mechanism. It circulates seawater or lake water through the cooling system, allowing the engine to safely dissipate heat under load.

A marine raw water pump may look simple, but when it fails, the consequences can be severe. Engine overheating can cause warped heads, melted hoses, gasket failures, and even full mechanical breakdowns. The best defence is routine maintenance, which includes regular inspection and replacement of the flexible impeller — the heart of the raw water pump.

Understanding the Marine Raw Water Pump

A raw water pump works on a positive displacement principle. Inside a bronze or stainless-steel housing is a flexible impeller — a rubber rotor with several curved vanes that bend as they rotate. As the impeller spins, it draws in seawater through the inlet port and forces it out the outlet, providing a steady flow of cooling water through the heat exchanger.

This design is simple, efficient, and long-lasting — but the flexible impeller blades are a wear component. Over time, they can crack, harden, or break off, reducing water flow and leading to engine overheating.

At Diesel Pro Power, we carry brand-new raw water pumps, impellers, and complete repair kits for a wide range of marine diesel engines, including:

• Detroit Diesel: 6-71, 8V-71, 12V-71, 6V-92, 8V-92, and more
• Cummins: 6BTA, QSB 5.9, QSB 6.7, QSC, QSM11, KTA19, KTA38, KTA50, and more
• Caterpillar: 3208, 3406, 3408, 3412, 3500 series, and more
• John Deere marine engines
• Northern Lights generator sets
• Westerbeke auxiliary and propulsion engines
• Volvo Penta marine propulsion systems
• Kohler and Yanmar gensets
• Onan (Cummins) marine generators
• Scania, Perkins, and MAN marine engines

Our inventory includes OEM-grade replacement parts and aftermarket marine water pumps engineered to the same standards as original components. Whether you’re rebuilding an older Detroit Diesel 6-71, refreshing a Cummins QSM11, or maintaining a Caterpillar 3406 marine setup, Diesel Pro Power has what you need.

Why Servicing Your Raw Water Pump Matters

Even the most reliable marine engines depend on continuous cooling. Without it, friction and combustion heat can quickly raise cylinder temperatures beyond safe limits. Here’s why servicing your pump matters:

1. Impeller fatigue: Each impeller vane flexes hundreds of times per minute. Over time, this causes micro-cracks that can expand until a vane breaks off.
2. Dry running: Starting the engine without water in the pump can destroy an impeller in seconds.
3. Corrosion: Saltwater exposure causes electrolysis and metal wear on the pump housing and shaft seals.
4. Debris damage: Sand, shells, and small debris can score the inside of the housing, lowering pumping efficiency.
5. Seal degradation: Rubber seals and gaskets dry out or harden with age, leading to leaks.

Preventive maintenance extends pump life, maintains cooling efficiency, and avoids costly in-water breakdowns. Most boat owners service their raw water pumps annually or every 200–300 engine hours.

Step-by-Step: Marine Raw Water Pump Maintenance

Regular inspection of your raw water pump impeller should be part of your engine maintenance routine. Follow these basic steps:

1. Close the Thru-Hull Intake

Before removing any parts, close the seacock to prevent water from flooding the bilge.

2. Remove the Pump Cover

Use the appropriate screwdriver or Allen wrench to remove the screws on the pump’s end cover. Keep track of the screws, gasket, and O-ring for reassembly.

3. Extract the Impeller

Using needle-nose pliers, carefully grip the impeller hub and pull it out. If it’s stuck, use a dedicated impeller puller tool, which Diesel Pro Power also supplies. Avoid using screwdrivers or prying tools that can gouge the housing.

4. Inspect the Impeller

Examine each vane for cracks, brittleness, or uneven bending. The vanes should spring back into place when flexed. If one or more vanes are missing, you must locate and remove the broken pieces from the cooling circuit.

5. Clean and Lubricate the Housing

Wipe away residue or salt deposits. Apply a thin film of petroleum jelly or marine grease to the inner walls to prevent dry starts and ease impeller installation.

6. Install a New Impeller (If Needed)

Lubricate the new impeller with diluted dish soap. Align the keyway on the shaft and rotate the impeller in the direction of the engine’s normal rotation as you slide it in.

7. Replace the Gasket and Cover Plate

A new gasket ensures a watertight seal. Diesel Pro Power carries full raw water pump repair kits that include new gaskets, seals, bearings, and cover screws.

8. Test Operation

Open the seacock and start the engine briefly. Confirm that water flows freely from the exhaust outlet, indicating proper circulation.

Choosing the Right Impeller Material

Impellers come in different materials, each designed for a specific environment:

• Neoprene: The most common material for marine cooling applications. Flexible, durable, and resistant to saltwater corrosion.
• Nitrile: Better suited for pumping oil-contaminated or diesel-fuel-mixed water.
• Polyurethane: Offers extra wear resistance in abrasive or sandy water.

For most marine engines, a neoprene impeller is ideal. Diesel Pro Power stocks high-quality neoprene impellers for Detroit Diesel, Cummins, Caterpillar, and other major brands, ensuring consistent water flow and long service life.

Signs It’s Time to Replace Your Impeller

Even with careful use, impellers don’t last forever. Keep an eye out for these signs that replacement is due:

• Reduced water flow at the exhaust discharge.
• Engine overheating or fluctuating temperature readings.
• Whining or squealing sounds from the pump.
• Leaks around the pump shaft or cover plate.
• Rubber debris in the heat exchanger or strainers.

If your engine has been sitting idle for several months, the impeller can take a “set” — its blades may remain bent in one position, reducing flow capacity. Replace it before launching for the new season.

Repair Kits and Complete Pump Replacements

Sometimes, it’s not just the impeller that needs attention. Bearings, seals, and shafts can wear out over time, especially in saltwater conditions. Diesel Pro Power offers complete marine raw water pump repair kits that include:

• Replacement seals and O-rings
• Gaskets and cover plates
• Bearings and hardware
• Flexible impellers

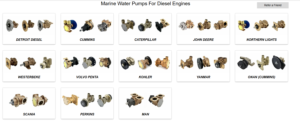

We also stock brand-new raw water pumps for nearly every engine application, allowing you to completely replace a worn unit rather than rebuild it. These pumps are direct bolt-on replacements, engineered to original specifications for brands such as:

• Detroit Diesel: 6-71, 8V-71, 12V-71, 6V-92, 8V-92, and more
• Cummins: 6BTA, QSB 5.9, QSB 6.7, QSC, QSM11, KTA19, KTA38, KTA50, and more
• Caterpillar: 3208, 3406, 3408, 3412, 3500 series, and more

Each pump is backed by Diesel Pro Power’s reputation for reliability and worldwide shipping to over 180 countries.

Practical Tips for Extending Pump Life

To get the most from your raw water pump:

• Flush with fresh water after every saltwater use.
• Inspect the intake strainer for debris before each trip.
• Replace impellers annually or after 200–300 hours, whichever comes first.
• Keep a spare impeller onboard for emergency replacement at sea.
• Check for leaks during every oil-change interval.

Routine attention to these small details helps prevent expensive downtime and ensures your vessel runs cool and efficiently on every voyage.

Contact Diesel Pro Power for Marine Raw Water Pump Parts

Even with regular maintenance, raw water pumps and impellers are wear items — and failure can happen unexpectedly. That’s why Diesel Pro Power recommends every boater keep a spare flexible impeller onboard. If your pump fails while underway, you’ll have what you need to get back to port safely.

Diesel Pro Power offers one of the largest inventories of marine engine cooling parts online, including:

• Neoprene flexible impellers
• Full marine raw water pumps
• Complete repair and rebuild kits
• Pump cover plates and hardware
• Gaskets, seals, and bearings

Whether you’re maintaining a Detroit Diesel, Cummins, or Caterpillar — or any other major marine brand — we’ve got you covered. Our inventory supports over 40,000 satisfied customers worldwide, from professional captains and shipyards to recreational boat owners.
