The Complete Guide to Detroit Diesel 6-71 Cylinder Heads
Understanding the Three Major Cylinder Head Types and Why Diesel Pro Power Is the Industry’s Most Trusted Source
Few engines in the world hold the legendary status of the Detroit Diesel 6-71. Introduced in the late 1930s and engineered to power everything from fishing vessels to military equipment to industrial machinery, the 6-71 remains one of the most iconic two-stroke diesel engines ever built. Even today, more than 80 years after its introduction, thousands of 6-71 engines are still operating in marine, industrial, agricultural, and power generation applications.
At the heart of every 6-71 is a uniquely engineered cylinder head that shapes airflow, combustion efficiency, temperature control, valve operation, and overall engine behavior. What many operators don’t realize, however, is that the 6-71 was produced with three distinct cylinder head configurations, each suited to a specific application and performance requirement:
Each version features different airflow characteristics, structural changes, and design requirements depending on whether the engine was built for standard aspiration, heavy-duty industrial service, marine propulsion, or turbocharged applications.
Diesel Pro Power supplies all three major Detroit Diesel 6-71 cylinder head configurations, in multiple build levels—from bare heads to fully assembled heads ready to install. This article explains the differences between the three head types and why Diesel Pro Power remains the most trusted global supplier for Detroit Diesel 6-71 components.
Understanding the Detroit Diesel 6-71 Cylinder Head
A Foundation of Two-Stroke Engineering
Unlike four-stroke diesel engines, the Detroit 6-71 relies on a uniflow scavenging system where air enters the cylinder through ports in the cylinder liner and exhaust exits through the cylinder head. This means the head is responsible solely for managing the exhaust valves, not intake flow. Because of this unique design, Detroit Diesel cylinder heads serve as:
-
The exhaust valve housing
-
The upper combustion boundary
-
The mounting point for injector tubes
-
The location for rocker assemblies
-
A stabilizing structure for cam followers
-
A heat transfer channel for exhaust-side temperatures
This architecture allows the 6-71 to run efficiently and deliver consistent power across a wide RPM range. But it also means the cylinder head must be matched precisely to the engine’s performance needs and aspiration method.

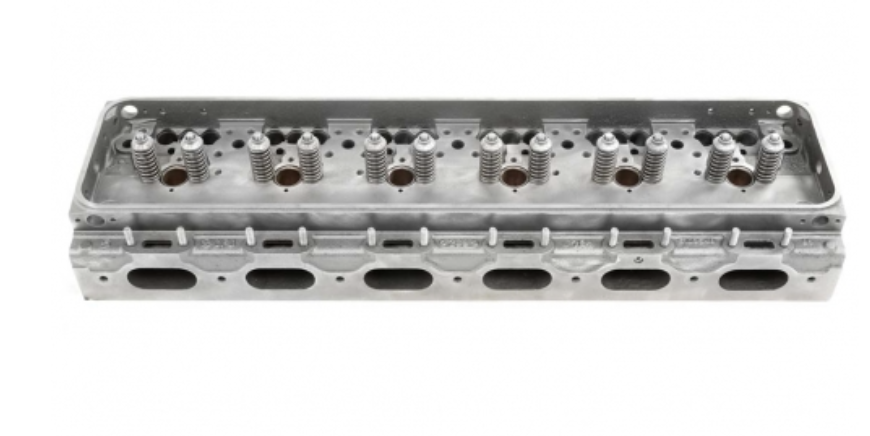

Cylinder Head Type #1:The 2-Valve Naturally Aspirated Cylinder Head
The original Detroit Diesel 6-71 design used a 2-valve per cylinder configuration. This classic head features:
-
One exhaust valve
-
One auxiliary valve
-
Moderate airflow through the exhaust side
-
Smooth power delivery ideal for non-turbo engines
-
Robust simplicity with fewer moving parts
Ideal Applications
The 2-valve head is most commonly found in:
-
Early marine propulsion engines
-
Standby generators
-
Construction and agricultural equipment
-
Stationary industrial equipment
-
Basic non-turbo utility engines
Because these engines are naturally aspirated and do not handle the added stress or exhaust temperatures of turbocharging, the 2-valve head provides more than enough exhaust flow for their needs.
Why Some Operators Still Prefer the 2-Valve Head
Many 6-71 owners prefer the 2-valve version for its:
-
Simpler design
-
Lower parts count
-
Easier servicing
-
Reliable operation under moderate loads
-
Compatibility with a wide range of non-turbo applications
Even today, thousands of vessels and generators continue to rely on the 2-valve 6-71 head because it has proven durable, predictable, and easy to rebuild.

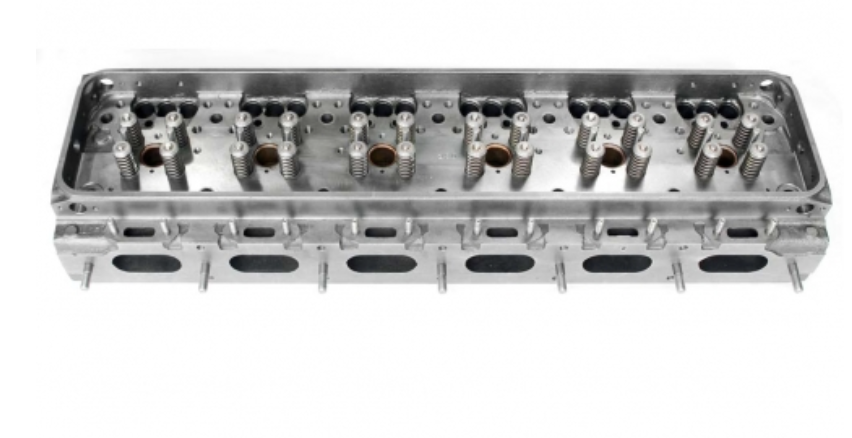

Cylinder Head Type #2: 6-71 4-Valve Naturally Aspirated Cylinder Head
As the 6-71 engine family expanded into more demanding industrial and marine roles, Detroit Diesel introduced a 4-valve naturally aspirated cylinder head. This head includes:
-
Two main exhaust valves
-
Two auxiliary valves
-
Greater flow capacity than the 2-valve head
-
Increased efficiency for high-load non-turbo applications
Why This Configuration Was Developed
The 4-valve non-turbo head was designed to handle:
-
Higher sustained RPM
-
Engines working under heavier loads
-
Marine propulsion requiring improved scavenging
-
Industrial machinery with high operating hours
-
Better temperature stability on the exhaust side
This head increased airflow without requiring turbocharging, making it highly desirable for marine operators who preferred naturally aspirated reliability but needed enhanced performance.
Characteristics of the 4-Valve Non-Turbo Head
Compared to the 2-valve version, the 4-valve NA head offers:
-
Improved exhaust efficiency
-
Cleaner combustion
-
Reduced exhaust temperature
-
Better overall breathing capability
-
More stable running characteristics at high load
For many commercial operators, the 4-valve naturally aspirated cylinder head became the preferred balance between performance and simplicity.
Cylinder Head Type #3: The 4-Valve Turbocharged Cylinder Head
When Detroit Diesel introduced turbocharging to the 6-71 engine family, the cylinder head required modernization to withstand:
-
Higher exhaust gas temperatures
-
Increased combustion pressures
-
More demanding airflow requirements
-
Greater structural stress at high boost levels
The 4-valve turbo cylinder head was engineered with:
-
Reinforced valve bridges
-
Stronger casting material
-
Improved valve seat metallurgy
-
Greater heat resistance
-
Larger or more optimized exhaust flow channels
-
Modified injector tube configuration
Ideal Applications
This is the cylinder head used in:
-
Turbocharged marine engines
-
High-output industrial engines
-
Engines driving hydraulic systems
-
Heavy-duty propulsion and commercial transport
-
High-performance aftermarket turbo builds
Because turbocharged 6-71 engines can experience significant increases in combustion temperature and cylinder pressure, the turbo head is the only reliable choice for these applications.
Why Turbo Engines Must Use the Turbo Cylinder Head
A naturally aspirated 4-valve head cannot reliably handle turbo exhaust temperatures or pressure. Using a non-turbo head in a turbocharged engine risks:
-
Premature valve seat wear
-
Cracked bridges
-
Warped exhaust surfaces
-
Injector tube heat failure
-
Shortened engine life
Turbo heads are designed specifically to withstand the demands of forced induction.
Diesel Pro Power: The Industry Leader in Detroit Diesel 6-71 Cylinder Heads Offering All Three Head Types, in Three Build Levels
With decades of experience and over 40,000 satisfied customers worldwide, Diesel Pro Power is the most trusted source for Detroit Diesel cylinder heads—including all three major 6-71 configurations.
Unlike generic suppliers, Diesel Pro Power maintains a deep inventory of:
-
2-valve naturally aspirated 6-71 heads
-
4-valve naturally aspirated 6-71 heads
-
4-valve turbocharged 6-71 heads
But what truly sets Diesel Pro Power apart is the ability to order these heads in multiple build levels, depending on your exact needs.
Three Build Options Available
1. Bare Cylinder Heads
A bare head is ideal for customers who want to reuse many of their existing components or prefer to build the head themselves. Diesel Pro Power bare heads include:
-
Precision-machined casting
-
Cleaned, inspected, and professionally prepared surfaces
-
Ready-to-install valve seats and injector tube locations
Bare heads are a preferred choice for:
-
Experienced rebuilders
-
Operations with in-house machine shops
-
Owners reusing specific performance components
2. Cylinder Heads with Valves and Springs (Semi-Complete)
This option provides a ready-to-install valvetrain foundation without full rocker assembly components. These heads include:
-
Valves installed
-
Valve springs installed
-
Keepers and retainers
-
Fully machined and assembled valvetrain seating
This level is ideal for operators who want a turn-key valve setup but still prefer to install their own:
-
Rocker arms
-
Cam followers
-
Valve bridges
-
Push rods
Semi-complete heads reduce installation time while allowing customization.

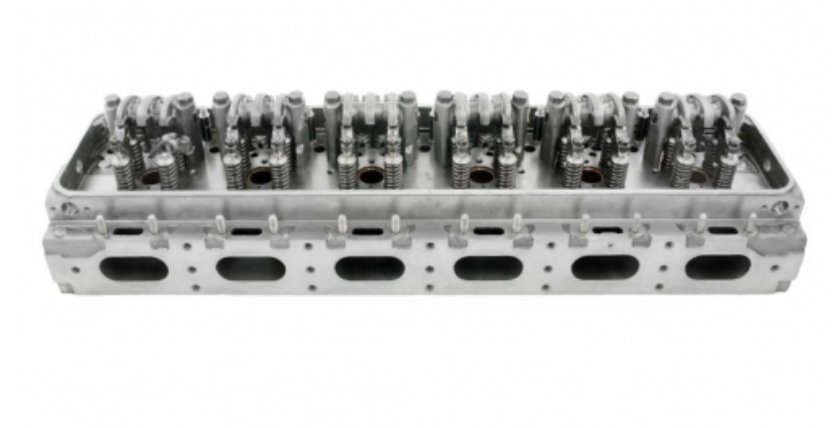

3. Fully Complete Cylinder Heads
Diesel Pro Power also offers fully assembled heads containing:
-
Valves and springs
-
Valve bridges
-
Rocker arms
-
Cam followers
-
Push rods installed and matched
This is the preferred option for:
-
Marine operators needing fast turnaround
-
Industrial or generator applications requiring minimal downtime
-
Technicians who want a “drop-in ready” solution
-
Fleet operators needing consistent engine performance
With a fully complete head, technicians can move directly to installation, saving hours of labor and removing the guesswork from assembly.
Why Customers Choose Diesel Pro Power for 6-71 Cylinder Heads
Experience, Availability, and Global Reach
1. Unmatched Inventory
Unlike many suppliers with limited stock, Diesel Pro Power maintains one of the world’s largest inventories of Detroit Diesel components—including rare and legacy variations.
2. Expert Guidance
Customers receive assistance from professionals who understand the differences between 2-valve, 4-valve NA, and turbo heads, ensuring perfect compatibility for every engine arrangement.
3. Multiple Build-Level Options
Whether you want bare castings or complete ready-to-install heads, Diesel Pro Power has a solution tailored to your workflow.
4. Fast Worldwide Shipping
With customers in over 180 countries, Diesel Pro Power ensures rapid, reliable delivery—even to remote marine or industrial locations.
5. Trusted by Professionals for Decades
Thousands of commercial operators depend on Diesel Pro Power for consistent quality, precision machining, and reliable long-term performance.
The Right Cylinder Head. The Right Configuration. The Right Supplier
The Detroit Diesel 6-71 engine remains a legend because of its durability, rebuildability, and engineering simplicity—attributes that continue to make it valuable in marine, industrial, and commercial applications worldwide. But rebuilding one properly requires matching the correct cylinder head to the engine’s design.
Whether you need a 2-valve non-turbo, 4-valve non-turbo, or 4-valve turbocharged cylinder head, Diesel Pro Power supplies every configuration in stock and ready to ship. With multiple assembly levels available—bare, semi-complete, or fully complete—Diesel Pro Power delivers exactly what technicians need to ensure a reliable, long-lasting rebuild.
