Diesel tachometers are indispensable tools for monitoring the speed of diesel engines, providing critical information for optimizing performance and ensuring reliability. These devices are particularly important in applications like marine propulsion, industrial machinery, and on-highway vehicles, where precise engine speed monitoring can prevent overloading, improve fuel efficiency, and enhance overall performance. This comprehensive guide explores the different types of diesel tachometers, drive adaptors, magnetic pickup tools, and voltage configurations to help you make informed decisions for your specific needs.
Types of Diesel Tachometers
Diesel tachometers come in various types, each designed to suit specific applications and operating environments. The most common categories are mechanical and electronic tachometers, with further distinctions between analog and digital displays.
Mechanical Tachometers
- How They Work:

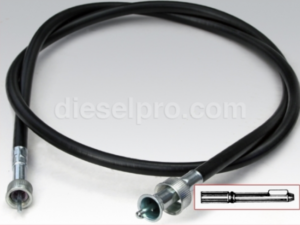

Drive Cable For Mechanical Tachometers used in Diesel Engines
- Mechanical tachometers operate using a flexible drive cable connected to an engine component like the camshaft, crankshaft, or accessory drive.
- Rotational speed is transmitted through the cable to the tachometer, where internal gears and springs translate the motion into an RPM reading.
- Mechanical tachometers operate using a flexible drive cable connected to an engine component like the camshaft, crankshaft, or accessory drive.
- Advantages:
- Simplicity and independence from electrical systems make mechanical tachometers durable and easy to maintain.
- Their rugged design is ideal for harsh environments where electronic components may fail.
- Applications:
- Common in legacy diesel engines such as older Detroit Diesel, Cummins, and Caterpillar models.
- Often used in industrial machinery and older marine engines.
Electronic Tachometers
- How They Work:
- Electronic tachometers use sensors like magnetic pickups, optical sensors, or alternator signals to calculate RPM.
- The data is then processed electronically and displayed on the tachometer, either in an analog or digital format.
- Advantages:
- High accuracy and advanced features, such as diagnostic capabilities and memory storage.
- Capable of integrating with modern engine control systems for additional data monitoring.
- Applications:
- Preferred for modern marine, industrial, and on-highway applications requiring precise and real-time engine monitoring.
- Preferred for modern marine, industrial, and on-highway applications requiring precise and real-time engine monitoring.
Analog vs. Digital Displays
- Analog Tachometers:
- Feature a needle and dial for RPM readings, providing a straightforward visual representation.
- Ideal for operators who prefer simplicity and reliability.
- Digital Tachometers:
- Display numerical RPM values and often include additional information like engine hours or fault codes.
- Useful in advanced systems where detailed diagnostics are required.
Drive Adaptors for Mechanical Tachometers
Drive adaptors are a critical component of mechanical tachometers, allowing the tachometer cable to connect to the engine and transmit rotational speed.
Function of Drive Adaptors
- Drive adaptors act as intermediaries between the tachometer and the engine’s rotational components, ensuring accurate speed readings.
- They are specifically designed to match the engine’s geometry and rotational speed ratios.
Types of Drive Adaptors
Drive adaptors are essential for mechanical tachometers, providing a physical connection between the tachometer and the engine’s rotational components. They are designed to match specific engine configurations and ensure accurate RPM readings. This section explores common drive adaptors, their ratios (including 2:1 or 1:0.5), and specialized options like the double tachometer drive adaptor.

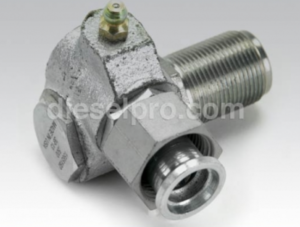

Camshaft Drive Adaptors
- How It Works:
- Camshaft drive adaptors extract RPM data directly from the camshaft, which rotates at half the speed of the crankshaft. This ratio is commonly referred to as 2:1 or 1:0.5.
- The tachometer is calibrated to account for the slower rotation, ensuring accurate RPM readings.
- Applications:
- Frequently used in Detroit Diesel, Caterpillar, and other heavy-duty diesel engines where the camshaft provides a stable and precise rotational output.
- Ideal for marine and industrial applications requiring high durability and accuracy.
- Typical Ratios:
- 2:1 (or 1:0.5): The camshaft completes one rotation for every two rotations of the crankshaft.
- 2:1 (or 1:0.5): The camshaft completes one rotation for every two rotations of the crankshaft.
- Advantages:
- The camshaft’s consistent rotational speed minimizes fluctuations in RPM readings.
- Simplifies installation for engines with accessible camshaft drive ports.
Accessory Drive Adaptors
- How It Works:
- Accessory drive adaptors connect to components like governors or alternators to provide RPM data. These drives typically rotate at or near crankshaft speed, depending on the gear configuration.
- Accessory drive adaptors connect to components like governors or alternators to provide RPM data. These drives typically rotate at or near crankshaft speed, depending on the gear configuration.
- Applications:
- Popular in Cummins engines where the accessory drive offers an accessible mounting point.
- Suitable for smaller boats or vehicles where space constraints make accessory drives a practical choice.
- Typical Ratios:
- 1:1: When the accessory drive rotates at the same speed as the crankshaft.
- 1:0.8 or 1:0.9: In cases where the accessory drive includes slight gear reduction relative to the crankshaft.
- Advantages:
- Versatile and easy to install.
- Can simplify RPM monitoring in compact engine setups.

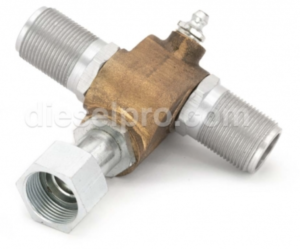

Double Tachometer Drive Adaptors
- How It Works:
- A double tachometer drive adaptor allows two tachometers to connect to a single drive source, such as the camshaft or accessory drive. The adaptor splits the input, enabling both tachometers to receive identical RPM data.
- A double tachometer drive adaptor allows two tachometers to connect to a single drive source, such as the camshaft or accessory drive. The adaptor splits the input, enabling both tachometers to receive identical RPM data.
- Applications:
- Commonly used in marine engines where one tachometer is installed in the engine room for maintenance and diagnostics, while another is placed on the flybridge or helm for the captain’s use.
- Also valuable in industrial setups requiring multiple monitoring points.
- Advantages:
- Enables simultaneous monitoring from different locations without additional engine modifications.
- Ensures consistent and reliable RPM data for both tachometers.
- Installation Tips:
- Securely mount the adaptor and ensure both tachometers are calibrated to the correct ratio.
- Regularly inspect the adaptor for wear, especially in high-vibration environments like marine engines.
Installation and Maintenance Tips
- Secure Mounting:
- Always ensure the adaptor is firmly mounted to avoid slippage or misalignment, especially in high-vibration environments like marine engines.
- Calibration:
- Confirm that the tachometer is calibrated to the adaptor’s ratio, whether 2:1, 1:1, or a custom configuration.
- Double Drive Adaptor Maintenance:
- Regularly inspect double drive adaptors for wear and ensure both tachometers are receiving consistent data.
- Lubrication:
- Lubricate drive cables and adaptors periodically to minimize wear and prolong lifespan.

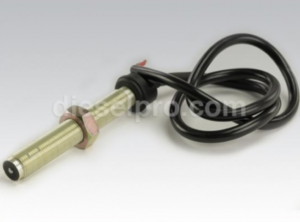

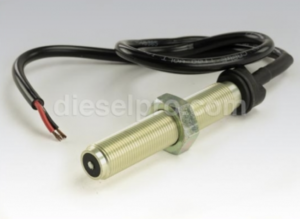

Magnetic Pickup Tools
Magnetic pickup tools are vital for electronic tachometers, providing a reliable method for detecting engine speed without direct physical contact.
How Magnetic Pickup Tools Work
- A magnetic sensor is installed near the engine’s flywheel or crankshaft.
- As the teeth of a gear or flywheel pass through the sensor’s magnetic field, they generate electrical pulses.
- These pulses are processed by the tachometer to display RPM accurately.
Installation
- The magnetic pickup tool must be mounted with a precise gap of 0.020–0.050 inches between the sensor tip and the rotating component.
- Secure the sensor with mounting brackets and ensure proper alignment for consistent readings.
- Connect the sensor to the tachometer or engine control unit using shielded wiring to prevent signal interference.
Advantages
- High accuracy and durability, even in environments with significant vibration or fluctuating loads.
- Suitable for marine and industrial applications requiring precise and reliable engine monitoring.
Related Product:
Voltage Differences: 12 Volt vs. 24 Volt Tachometers
The voltage configuration of your tachometer must match the engine’s electrical system for proper operation. Diesel tachometers are typically designed for either 12-volt or 24-volt systems.
12 Volt Tachometers
- Where Used:
- Found in smaller boats, recreational vehicles, and light industrial equipment with 12-volt systems.
- Advantages:
- Wide availability and compatibility with standard automotive or marine batteries.
- Considerations:
- Ensure the tachometer is grounded correctly to avoid erratic readings caused by electrical noise.
- Ensure the tachometer is grounded correctly to avoid erratic readings caused by electrical noise.
24 Volt Tachometers
- Where Used:
- Common in larger vessels, commercial trucks, and industrial machinery with high electrical demands.
- Advantages:
- Better suited for handling long wiring runs and higher electrical loads without voltage drops.
- Considerations:
- Verify compatibility with other electrical instruments to prevent mismatched voltages.
- Verify compatibility with other electrical instruments to prevent mismatched voltages.
Pro Tip: Always confirm your engine’s electrical system voltage before purchasing a tachometer to avoid installation issues.
Selecting the Right Diesel Tachometer
When choosing a diesel tachometer, consider the following factors:
- Engine Type:
- Determine whether your engine supports a mechanical or electronic tachometer and select a compatible model.
- Determine whether your engine supports a mechanical or electronic tachometer and select a compatible model.
- Application Needs:
- For basic applications, mechanical tachometers offer simplicity and durability.
- For advanced monitoring, electronic tachometers provide higher accuracy and additional features.
- Voltage Compatibility:
- Ensure the tachometer matches your system’s voltage (12V or 24V) to avoid electrical issues.
-
Environment:
- For harsh environments, magnetic pickups and rugged electronic tachometers are ideal.
- In controlled settings, optical pickups and digital displays may offer better performance.
Conclusion
