Cummins 4BTA Turbocharger & Related Components

The Cummins 4BTA engine is a proven workhorse for marine and industrial applications, offering durability, reliability, and fuel efficiency in demanding environments. One of the most critical performance components in the 4BTA is its turbocharger system. The turbo boosts intake air pressure, allowing the engine to burn fuel more efficiently, deliver more power, and maintain optimal performance at varying loads and speeds.

This section provides a complete overview of turbochargers and all related parts for the Cummins 4BTA, including hoses, gaskets, studs, seals, and accessory systems, ensuring you can source everything needed for installation, maintenance, or repair from one place.

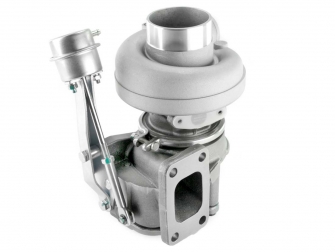

Turbochargers for Cummins 4BTA Engines

The turbocharger is the heart of the 4BTA’s forced induction system. Built to withstand high exhaust temperatures and continuous operation, the Cummins OEM turbo for the 4BTA is precision-balanced for minimal vibration and maximum service life.

Key Features:

• Designed for marine and industrial duty cycles.

• Cast iron turbine housing for heat resistance.

• Precision-machined compressor wheel for optimal airflow.

• Compatible with factory mounting points for easy replacement.

Whether you are replacing a worn-out turbo or upgrading for better performance, using a genuine Cummins turbo ensures correct fitment, reliable boost levels, and long-term durability.

Hump Hoses for Turbo Applications

The hump hose is a reinforced silicone coupling designed to connect intake piping while absorbing vibration and accommodating slight misalignments. The Cummins 4BTA turbo installation often uses a hump hose to reduce from a larger compressor outlet to a smaller charge-air pipe diameter.

Specifications:

• Reduction from 3.5 inches to 3 inches.

• High-temperature silicone construction.

• Reinforced for pressure resistance in turbocharged systems.

This component is essential for preventing boost leaks and ensuring smooth airflow from the turbo to the intercooler or intake manifold.

Turbo Mounting Studs for Cummins 4BTA

Turbocharger mounting studs secure the turbo to the exhaust manifold, ensuring a gas-tight seal and stable mounting under extreme conditions. For the 4BTA, a set of four high-strength steel studs is required.

Benefits of OEM-Grade Turbo Studs:

• High tensile strength for heat and vibration resistance.

• Precision threads for easy installation and removal.

• Corrosion-resistant coating for marine environments.

Replacing worn or damaged studs helps maintain a proper exhaust seal, prevents exhaust gas leaks, and ensures the turbo remains properly aligned.

Cummins AirSep System – Single Turbo Configuration

The AirSep System is a high-efficiency crankcase ventilation and air filtration solution designed for Cummins single-turbo marine engines, including the 4BTA. This system reduces engine room oil mist, keeps intake air cleaner, and improves overall efficiency.

Features:

• 3-inch throat diameter for turbo inlet compatibility.

• Integrated air filter element for superior filtration.

• Oil separation technology to reduce engine contamination.

Using an AirSep system helps maintain turbocharger health by keeping compressor blades clean and reducing wear on intake valves and pistons.

Intake Manifold Gaskets for Cummins 4BTA

The intake manifold gasket seals the joint between the intake manifold and the cylinder head, ensuring that all pressurized air from the turbo is delivered directly into the combustion chamber without leakage.

Advantages of a Quality Intake Gasket:

• Heat-resistant materials to withstand turbocharged air temperatures.

• Precision-cut to match Cummins 4BTA intake ports.

• Reliable sealing under high boost conditions.

A leaking intake gasket can cause loss of boost, reduced power, and increased fuel consumption, making timely replacement important during turbo maintenance.

Aftercooler O-Rings for Turbocharged Cummins Engines

The aftercooler (intercooler) O-ring is used to seal connections between charge-air components, preventing pressurized air from escaping. This O-ring fits multiple Cummins turbocharged engines, including the 4BTA.

Key Benefits:

• Resistant to heat, oil, and boost pressures.

• Maintains airtight seals in high-vibration environments.

• Prevents boost loss and keeps intake temperatures low.

Replacing worn O-rings is a low-cost but essential step in maintaining turbocharger efficiency.

Turbo Oil Drain Gasket for Cummins 4BTA

The turbo oil drain gasket seals the connection between the turbocharger and the oil return line to the engine crankcase. This gasket prevents oil leaks that could lead to reduced lubrication and premature turbo failure.

Why It Matters:

• Ensures consistent oil return flow from the turbo.

• Prevents external oil leaks in the engine bay.

• Made from high-temperature-resistant materials.

This gasket should be inspected whenever the turbo is removed or replaced.

High-Temperature Jointing Compound for Turbo Applications

High-temperature jointing compound is used on exhaust-side turbo connections where extreme heat is present. This compound is formulated to withstand continuous operating temperatures above 500°C and peaks up to 760°C.

Applications:

• Turbocharger flanges and gaskets.

• Exhaust manifold joints.

• Other high-heat sealing points in marine and industrial engines.

By providing a heat-resistant seal, this compound prevents exhaust leaks that could impact turbocharger performance and engine efficiency.

Maintenance Tips for Cummins 4BTA Turbo Systems

To maximize the life and performance of your 4BTA turbocharger system:

1. Use Clean Oil – Turbo bearings rely on clean, pressurized oil for lubrication.

2. Inspect Boost Connections – Check hoses, clamps, and gaskets regularly for leaks.

3. Allow Cool-Down Periods – After heavy use, idle the engine for a few minutes to prevent oil coking inside the turbo.

4. Replace Worn Seals and Gaskets – Small air or oil leaks can lead to major turbo damage over time.

5. Keep the Air Filter Clean – A clogged filter increases turbo stress and reduces efficiency.
