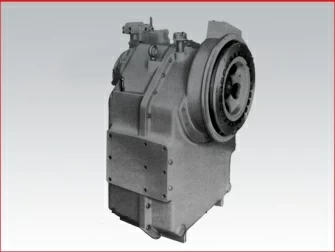

Twin Disc MG518 Marine Transmission Parts – Rebuilt MG518 Gear Section

Marine Transmission Specifications & Applications for the MG518

The Twin Disc MG518 is a heavy-duty marine gearbox built for commercial reliability and smooth power delivery. It’s a favorite among operators who need dependable torque multiplication, controlled acceleration, and precise low-speed maneuvering. The model’s ratio spread covers fast harbor runs as well as high-bollard-pull duties, and its availability in shallow-case and deep-case architectures makes it adaptable to tight engine rooms or high-reduction requirements. Typical applications include crew boats, pilot launches, coastal trawlers, workboats, small ferries, offshore service craft, tow and push vessels, and heavy-duty retrofits where long service life and parts support are non-negotiable.

Case styles at a glance

• Shallow Case (SC): A compact envelope that suits lower to mid reductions and installations where length and vertical height are constrained. SC variants are frequently paired to 1.5:1, 2:1, and 3:1 sets for nimble vessels that still require thrust gains over direct drive.



• Deep Case (DC): A larger housing that accommodates higher reductions and the larger bull gears those ratios require. DC variants are commonly specified for 4:1, 4.5:1, 5:1, and 6:1 sets to support big-diameter propellers and high static thrust.



Why operators choose the MG518

• Wide ratio coverage for precise propeller loading



• Smooth clutch engagement for docking and station-keeping



• Strong aftermarket and service support for long-term ownership



• Proven durability in continuous-duty cycles and tough sea states



Spin-tested assurance
All rebuilt MG518 transmissions listed in this section are spin tested prior to shipment to confirm smooth engagement, stable hydraulic pressure, and proper rotation behavior. This gives crews a clean baseline for commissioning and sea trials.

Selecting the Right MG518 Ratio

Matching gearbox reduction to the vessel’s duty cycle ensures the engine runs in its most efficient band while the propeller absorbs power without cavitating or over-speeding. Use the playbook below as a practical, application-driven guide.

MG518 – Ratio 1.5:1 (Shallow Case)

Best for: Fast transits and mixed operations where speed matters but extra torque over direct drive is desirable.
Typical vessels: Crew transfer boats, patrol craft, light utility launches.
Performance notes: Keeps prop rpm relatively high for pace, while multiplying torque enough to improve holeshot, docking control, and holding power in light chop. Works well where draft limits prop diameter and you need to maintain tip speed and pitch within safe margins.

MG518 – Ratio 2:1 (Shallow Case)

Best for: Balanced thrust and cruise efficiency across varied workdays.
Typical vessels: Pilot boats, harbor launches, small ferries, multi-mission workboats.
Performance notes: Doubles torque at the shaft, broadening prop choices and improving authority in reverse for backing and braking. A versatile ratio when the schedule includes both slow maneuvering and long harbor runs.

MG518 – Ratio 3:1 (Shallow Case)

Best for: Heavier hulls with frequent low-speed demands.
Typical vessels: Inshore trawlers, utility barges, coastal workboats that push more than they sprint.
Performance notes: Enables larger-diameter, greater-area propellers without overspeeding them. The result is better bite at low advance, calmer engagement, and reduced cavitation risk when sized correctly.

MG518 – Ratio 4:1 (Deep Case)

Best for: Serious torque multiplication with efficient continuous duty.
Typical vessels: Coastal trawlers, supply boats, multi-engine ferries with displacement-first priorities.
Performance notes: A significant step up in shaft torque for big-area propellers, improving acceleration under load and allowing the engine to sit squarely in its most economical band during long work stretches.

MG518 – Ratio 4.5:1 (Deep Case)

Best for: Fine-tuning prop absorption for torque-dense engines and high-drag conditions.
Typical vessels: Trawlers and workboats that want peak efficiency at steady working rpm.
Performance notes: Subtle but meaningful increase in reduction relative to 4:1, often used to eliminate engine lugging and tighten control in adverse weather or heavy currents.

MG518 – Ratio 5:1 (Deep Case)

Best for: High static thrust with some flexibility for modest cruise legs.
Typical vessels: Towboats, pushboats, and near-shore assist craft that split time between bollard work and short transits.
Performance notes: A strong middle-high reduction that supports very robust backing power and low-speed authority while preserving reasonable prop rpm for efficiency.

MG518 – Ratio 6:1 (Deep Case)

Best for: Maximum low-speed authority and bollard pull.
Typical vessels: Harbor assist, heavy towing, pushboats working barge strings, net haulers.
Performance notes: Dramatically boosts shaft torque, enabling large, slow-turning propellers that move a lot of water with minimal slip. Delivers superb control in tight confines and under heavy load.

Integration & Fitment Considerations

Even when replacing an existing MG518 with the same ratio, it’s smart to verify a few fundamentals before yard time:

• Housing & alignment: Confirm the bell housing pattern, input coupling/spider details, and the engine flywheel interface specified for your build. Proper alignment preserves clutch life and keeps bearing loads predictable.



• Output hardware: Match the output flange pattern and pilot to your shaft coupling. Note that shallow-case and deep-case variants may use different hardware.



• Cooling & filtration: Size the oil cooler to your ambient and duty cycle. High reductions concentrate more load in the geartrain; maintain oil temperature within spec to protect clutches and bearings.



• Control pressure & actuation: Baseline hydraulic pressures during dock trials. The spin-test record provides a first confidence check; your commissioning log should confirm stable pressures hot and cold.



• Service access: Ensure clear access for dipstick checks, filter changes, and pressure ports. A neat layout shortens routine service time and lowers lifetime cost.



Maintenance Themes That Extend Service Life

The MG518 rewards routine attention. Most long-running fleets share similar best practices:

• Oil management: Use the recommended viscosity for your climate and adhere to change intervals tied to hours and duty severity. Oil analysis is inexpensive insurance—track wear metals and baseline early.



• Temperature control: Verify cooler performance during sea trials and in peak summer conditions. If oil temperatures creep up on long tows, reassess cooler capacity, seawater flow, and heat-exchanger cleanliness.



• Seals, gaskets, and breathing: Replace aging seals proactively and confirm the gearbox breather is clear. Keeping contaminants out and pressure balanced pays big dividends in clutch and bearing life.



• Noise & vibration checks: Log baseline readings after installation. Small changes in tone or vibration under similar load can reveal misalignment, bearing wear, or gear mesh changes before they become expensive.



• Documentation discipline: Keep a simple log of engagement pressure at idle and at specified rpm, oil type and hours, and any adjustments made. This record speeds troubleshooting and supports warranty discussions.



MG518 Component Landscape (What’s Commonly Replaced)

• Bull gears & pinion gears matched to the chosen ratio set



• Forward and reverse shaft bearings and bearing retainers



• Clutch-related seals, oil dams, and gasket kits to maintain hydraulic integrity



• Output flanges and coupling hardware appropriate to shallow-case or deep-case builds



• Instrumentation and wear items such as pressure switches, filters, and breathers



A clear plan for these consumables allows you to set realistic maintenance budgets and minimize unplanned downtime.

Rebuilt MG518 Gear Catalog (Spin-Tested)

Note: To respect your request, this section avoids stock indicators, pricing language, and purchase prompts. Each unit is spin tested before shipment.

Twin Disc MG518 – Ratio 1.5:1 (Shallow Case)

A responsive setup for operators who need brisk harbor performance and reliable control during docking and tight maneuvers. Ideal when draft limits prop diameter and you want to maintain higher prop rpm without sacrificing the torque multiplication that improves bite and braking.

Twin Disc MG518 – Ratio 2:1 (Shallow Case)

A proven all-around choice for mixed-mission duty cycles. The 2:1 ratio yields noticeable thrust gains over 1.5:1 while preserving cruise efficiency. Popular among pilot and utility boats that alternate between slow maneuvering and punctual transits.

Twin Disc MG518 – Ratio 3:1 (Shallow Case)

The practical threshold where larger-area propellers come into play for low-speed authority. It’s a smart fit for heavier hulls, modest towing, or vessels that prioritize station-keeping and controlled acceleration over top speed.

Twin Disc MG518 – Ratio 4:1 (Deep Case)

A deep-case configuration designed to carry larger gearsets. It’s the “serious work” option for displacement craft that need dependable bollard pull, strong reverse, and fuel-efficient operation at steady working rpm.

Twin Disc MG518 – Ratio 4.5:1 (Deep Case)

A fine-tuning step for operators chasing optimal load on torque-rich engines. If a 4:1 is close but not perfect, 4.5:1 can land the engine squarely in its best brake-specific fuel consumption zone while increasing low-speed authority in chop and currents.

Twin Disc MG518 – Ratio 5:1 (Deep Case)

A robust middle-high reduction that amplifies backing power and towing confidence without going to the absolute maximum reduction. Suited to pushboats and assist craft that split time between bollard operations and predictable transit legs.

Twin Disc MG518 – Ratio 6:1 (Deep Case)

The choice for maximum bollard pull and precise low-speed handling. Enables large, slow-turning propellers that produce strong thrust with minimal slip. Crews appreciate the calm engagement feel and authority in reverse for docking and barge handling.

MG518 vs. Alternative Gearbox Paths

For many fleets, the question isn’t whether a heavy-duty reduction gear is needed—it’s whether one model family can cover enough use cases to simplify parts, training, and service. The MG518’s ratio breadth and two case depths answer that decisively. Standardizing on this platform can reduce spare-parts variety, streamline technician training, and make troubleshooting faster because crews become fluent in a single architecture. This has real operational value when vessels work daily schedules with little tolerance for downtime.

Troubleshooting Pointers (Quick Reference)

• Harsh engagement at idle: Verify control pressure against spec, confirm engine idle rpm, and ensure alignment is within tolerance.



• Rising oil temperature under load: Inspect cooler performance, seawater flow, and heat-exchanger cleanliness; confirm the oil grade matches ambient conditions and duty.



• Vibration increase after hard weather: Re-check shaft alignment, coupling fasteners, and output flange runout; inspect mounts and ensure no debris has entered the gearcase via breathers or seals.



• Reduced reverse authority: Confirm shift actuation and pressure, check clutch wear limits, and verify propeller pitch and blade condition if a recent strike is suspected.



These pointers don’t replace a service manual, but they help crews triage quickly and speak clearly with the yard or technician.

Procurement Guidance (Without Sales Language)

When planning an MG518 replacement or ratio change, collect this information before you call:

• Engine make, model, and rating you will run in continuous service



• Current gearbox ratio, case style (SC or DC), and any adapter/spider details



• Shaft diameter, coupling type, and output flange pattern



• Available propeller diameter and target cruising speed at typical load



• Cooling system layout for the gearbox and ambient seawater temperatures



Having these details ready speeds up technical validation and ensures the recommended configuration aligns with your vessel’s mission profile.

Why Buy Your Twin Disc MG518 From Diesel Pro Power

Spin-tested confidence
Every rebuilt MG518 offered here is spin tested before it ships. That test confirms smooth clutch engagement and proper hydraulic behavior so you begin sea trials with a known-good baseline.

Commercial-duty know-how
We support working fleets. Whether you’re towing, trawling, or turning tight harbor windows, our team speaks your language—ratio selection, case fitment, and practical engine room realities.

Deep parts ecosystem
From deep-case bull gears and bearing kits to seals, oil dams, and output flanges, we maintain robust sourcing and guidance. That keeps maintenance predictable and downtime short.

Integration support
Need to validate an output flange against a coupling drawing or confirm cooler capacity for summer duty? We help you line up the details so commissioning is smooth and repeatable.

Proven customer trust
With 40,000+ satisfied customers, Diesel Pro Power has earned its reputation on reliable components, clear technical communication, and on-time fulfillment for operators who can’t afford delays.

Quick Reference: MG518 Catalog (Spin-Tested)

• MG518 1.5:1 – Shallow Case: For fast harbor transits and responsive handling where draft limits prop diameter.



• MG518 2:1 – Shallow Case: Versatile balance of thrust and speed for mixed-mission duty cycles.



• MG518 3:1 – Shallow Case: Steps into larger-area props and stronger low-speed bite for heavier hulls.



• MG518 4:1 – Deep Case: Serious torque multiplication with efficient continuous-duty performance.



• MG518 4.5:1 – Deep Case: Fine-tunes engine loading and fuel economy at steady working rpm.



• MG518 5:1 – Deep Case: High thrust with flexibility for modest transit legs.



• MG518 6:1 – Deep Case: Maximum low-speed authority and bollard pull for towing, pushing, and assist work.



All rebuilt MG518 units listed above are spin tested prior to shipment.
