4" throat diameter
Details

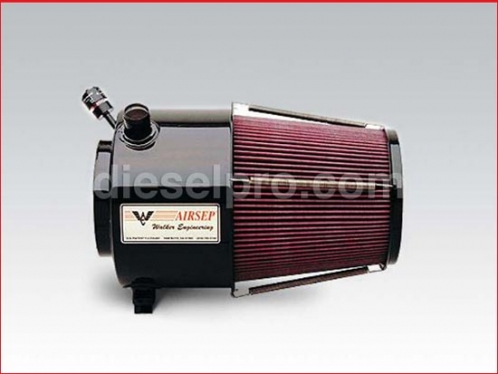

For use in Cummins ISC and QSC engines. 4" throat diameter.
Components | Quantity |
8" CCE Airsep 62* Left W/8ā Tapered | 1 |
8" Long Life Coalescer w/puck | 1 (installed) |
8" x 8" ST CCE Air Filter, Blue | 1 (installed) |
25ā Restriction Indicator | 1 (installed) |
5.5" T-Bolt Clamp | 2 |
5" x 3āL. Silicone Turbo Hose | 1 |
Hose Clamp 1" H-16 | 1 |
1ā x 1-1/4ā x 8-1/2ā Molded āSā Hose | 1 |
1-1/4" Clamp H-20 | 3 |
Vacuum Regulator W/ pop off | 1 |
1-1/4" X 6ā WalkerFlex Hose | 1 |
Cap Screw, 3/8-16 x 1/2" | 1 |
Cap Screw, 1/4-20 x 1/2" | 1 |
Fitting, -8 jic x 3/8 npt 90* Elbow | 1 |
Adapter, -8 JIC x 3/8 NPT | 1 |
Hose Assembly, 1/2ā x 15ā | 1 |
Adapter, -8 JIC x Y FPT | 1 |
Check Valve | 1 |
Fitting, -8 jic x Ya MPT | 1 |
Hose Assembly, 1/2" x21-3/4ā | 1 |
Bracket, Vacuum Regulator | 1 |
weight: 18.00 Lbs.
KWCCEQSC-1
