Twin Disc MG506 marine transmission ratio 1.5 to 1 - rebuilt

More Views

  • Twin Disc MG506 marine transmission ratio 1.5 to 1 - rebuilt
  • Twin Disc MG506 marine transmission ratio 1.5 to 1 - rebuilt
  • Twin Disc MG506 marine transmission ratio 1.5 to 1 - rebuilt
  • Twin Disc MG506 marine transmission ratio 1.5 to 1 - rebuilt
  • Twin Disc MG506 marine transmission ratio 1.5 to 1 - rebuilt

Twin Disc MG506 marine transmission ratio 1.5 to 1 - rebuilt

Price: $ 10,934.00

In stock

All Countries
30 Day
Return URL
Back
Google ReviewsGoogle Reviews
In Stock
Sold with refundable core deposit.

See details

Details

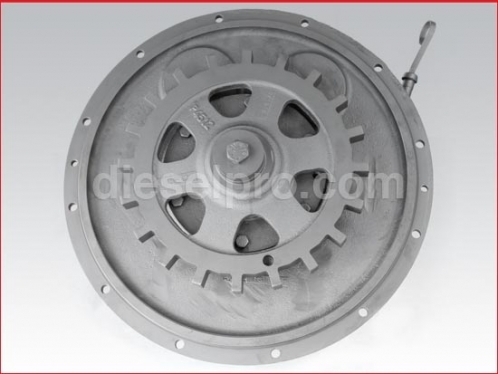

Twin Disc MG506 marine transmission with a ratio of 1.5 to 1 - Remanufactured

Includes:

  • Mechanical selector valve assembly
  • Pilot housing flange
  • Oil pump
  • Oil level gauge
  • Output flange

It does not include the ring drive (sold separately)

General information:

  • Oil capacity 1.35 US gallons.
  • Pressure range 300-320 PSI @ 1800 rpm and 180 degrees farenheit (Minimum 270 psi at cruising speed)
  • Maximum speed 3000 RPM
  • Oil viscosity SAE 30 engine oil when working on water temperature more than 85 degrees farenheit.
  • Oil viscosity SAE 20 engine oil when working on water temperature less than 85 degrees farenheit.

After placing your order online for this item, we will contact you to request the specific SAE housing size

See Warranty

weight: 310.00 Lbs.

MG506 1.5:1
+
