Twin Disc MG5061 marine transmission - rebuilt

More Views

  • Twin Disc MG5061A marine transmission ratio 1.7 to 1 - rebuilt
  • Twin Disc MG5061A marine transmission ratio 1.7 to 1 - rebuilt

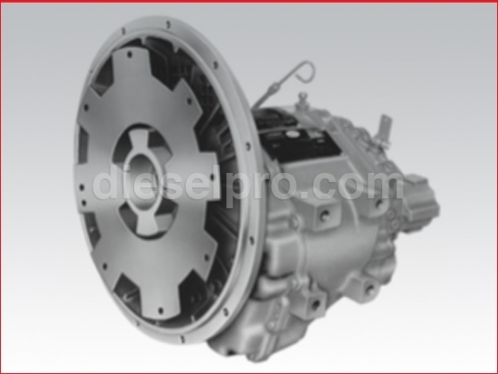

Twin Disc MG5061A marine transmission ratio 1.7 to 1 - rebuilt

Price: $ 14,577.75

In stock

All Countries
30 Day
Return URL
Back
Google ReviewsGoogle Reviews
In Stock

7 degrees down angle on output shat


Sold with refundable core deposit. See details

Details

Twin Disc MG5061A marine transmission with a ratio of 1.75 to 1 - Remanufactured

Includes:

  • Mechanical selector valve assembly (Control valve)
  • Pilot housing flange
  • Oil pump
  • Oil level gauge
  • Output flange

It does not include the Flexible Coupling (sold separately)

General information:

  • Oil capacity 1.35 US gallons.
  • Pressure range 300-320 PSI @ 2800 rpm and 185 degrees farenheit
  • Maximum speed 2800 RPM
  • Operating: Oil viscosity SAE 30W and 40W engine oil, temperature 150 - 185 degrees Fahrenheit.
  • 7 degrees down angle on output shaft

Reduction Ratios

:1

Pleasure Craft

@2800 RPM

Light Duty

@2800 RPM

Intermediate Duty

@2500 RPM

Medium Duty

@2100 RPM

Continuous Duty

@2100 RPM
1.13, 1.28, 1.54, 1.75 345 kW (463 hp)
 313 kW (420hp) 239 kW (320 hp) 157 kW (211 hp) 142 kW (190 hp)
2.00 300 kW (402 hp)
2.47 321 kW (430 hp) 147 kW (197 hp) 133 kW (178 hp)



After placing your order online for this item, we will contact you to request the specific SAE housing size

See Warranty

weight: 356.50 Lbs.

MG5061A 1.7:1
+
